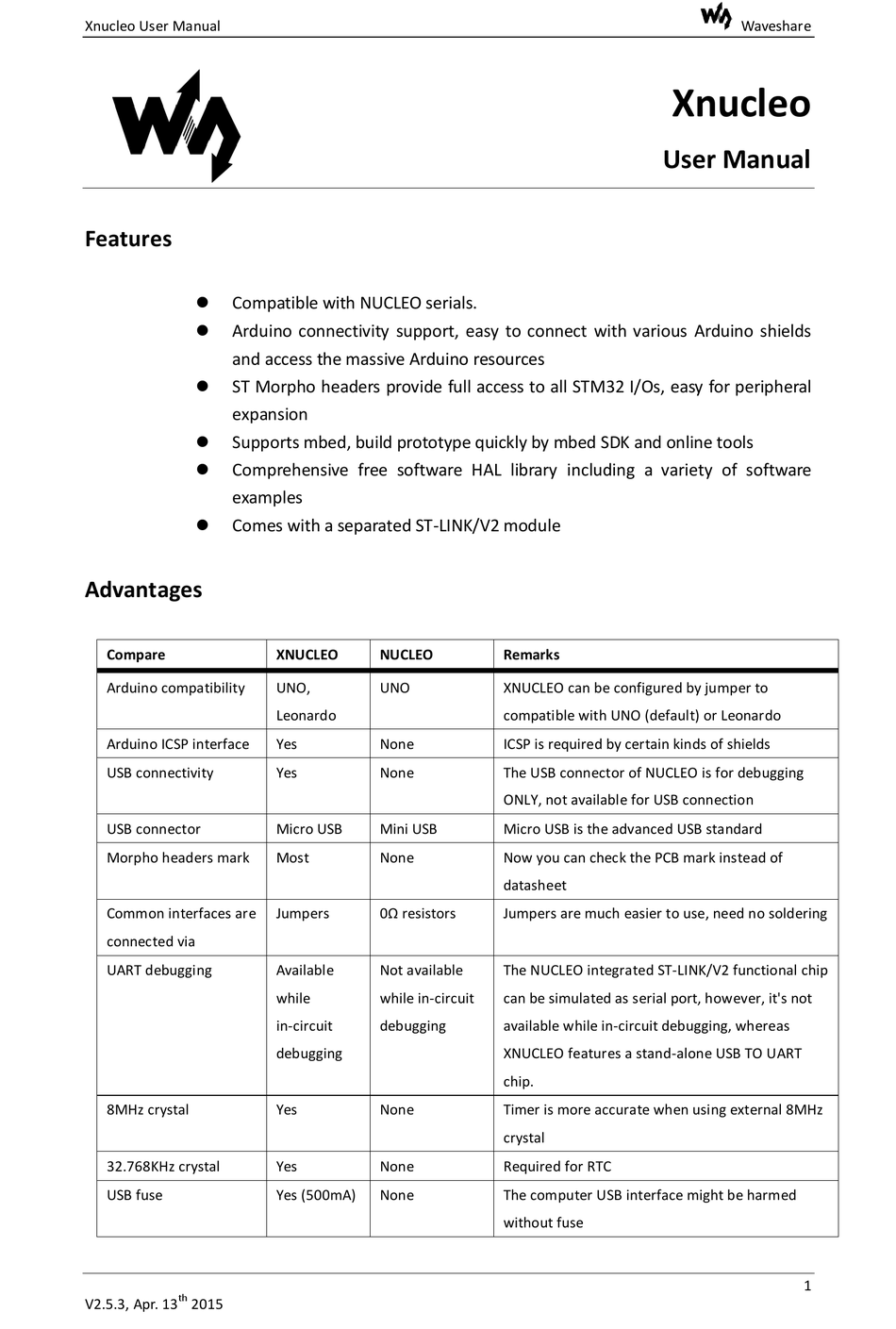

Waveshare XNUCLEO-F030R8 User Manual

Xnucleo User Manual

Features


Compatible with NUCLEO serials.

Arduino connectivity support, easy to connect with various Arduino shields
and access the massive Arduino resources

ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral
expansion

Supports mbed, build prototype quickly by mbed SDK and online tools

Comprehensive free software HAL library including a variety of software
examples

Comes with a separated ST-LINK/V2 module

Advantages

Compare
Arduino compatibility
Arduino ICSP interface
USB connectivity
USB connector
Morpho headers mark
Common interfaces are
connected via
UART debugging
8MHz crystal
32.768KHz crystal
USB fuse
th
V2.5.3, Apr. 13 2015
XNUCLEO NUCLEO
UNO, UNO
Leonardo
Yes None
Yes None
Micro USB Mini USB
Most None
Jumpers 0Ω resistors
Available Not available
while while in-circuit
in-circuit debugging
debugging
Yes None
Yes None
Yes (500mA) None
Xnucleo
User Manual
Remarks
XNUCLEO can be configured by jumper to
compatible with UNO (default) or Leonardo
ICSP is required by certain kinds of shields
The USB connector of NUCLEO is for debugging
ONLY, not available for USB connection
Micro USB is the advanced USB standard
Now you can check the PCB mark instead of
datasheet
Jumpers are much easier to use, need no soldering
The NUCLEO integrated ST-LINK/V2 functional chip
can be simulated as serial port, however, it's not
available while in-circuit debugging, whereas
XNUCLEO features a stand-alone USB TO UART
chip.
Timer is more accurate when using external 8MHz
crystal
Required for RTC
The computer USB interface might be harmed
without fuse
