Myzone Inbody 230 Setup Instructions

Download this manual

Inbody 230 & Raspberry Pi Setup Instructions

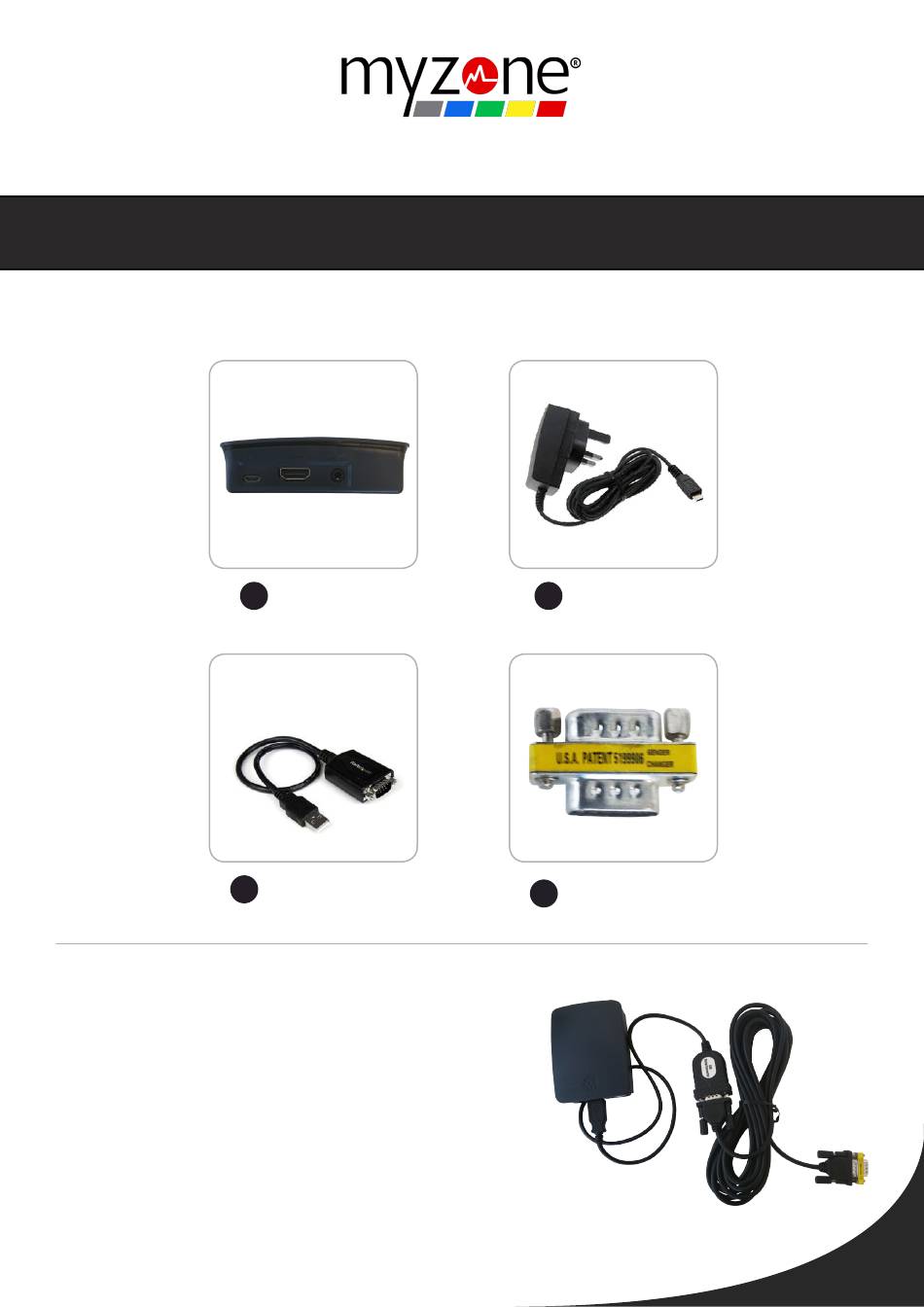

Step 1: Please check that you've received all of the following.

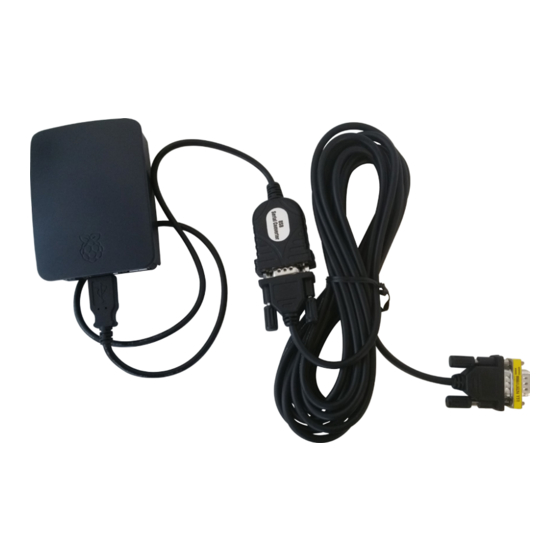

Step 2: Connect USB-Serial Cable to Null Modem

Cable to Gender Changer as shown

Step 3: Connect USB-Serial Cable to USB Port of

Raspberry Pi (as seen here).

EFFORT REWARDED.

Raspberry Pi

USB to Null

Modem Adapter

Power Adaptor

Gender Changer

myzone.org | 1

Need help?

Do you have a question about the Inbody 230 and is the answer not in the manual?

Page 1 EFFORT REWARDED. Inbody 230 & Raspberry Pi Setup Instructions Step 1: Please check that you’ve received all of the following. Raspberry Pi Power Adaptor USB to Null Gender Changer Modem Adapter Step 2: Connect USB-Serial Cable to Null Modem Cable to Gender Changer as shown Step 3: Connect USB-Serial Cable to USB Port of Raspberry Pi (as seen here).
Page 2 | Inbody 230 & Raspberry Pi Setup Instructions Step 4: Connect other end of connected cable run (Gender Changer) to port on back of scales. Step 5: Connect network cable to Raspberry Pi. Step 6: Connect Power Adaptor to mains and to Raspberry Pi.
Page 3 | Inbody 230 & Raspberry Pi Setup Instructions Step 7: Press “setup” button Step 8: Tap the “right arrow” button to change the settings menu to No. 5 “Interface” Step 9: Move the cursor to the Step 10: The setting should...
Page 4 | Inbody 230 & Raspberry Pi Setup Instructions Step 12: Change the setting to “User device” Now press Exit key on keypad to get back to home screen. Setup is now complete and the scales are ready to use. myzone.org | 4...
