Inbody 270 & Raspberry Pi Setup Instructions
Step 1: Please check that you've received all of the following.
Step 2: Connect USB to Null modem Adapter
to Gender Changer

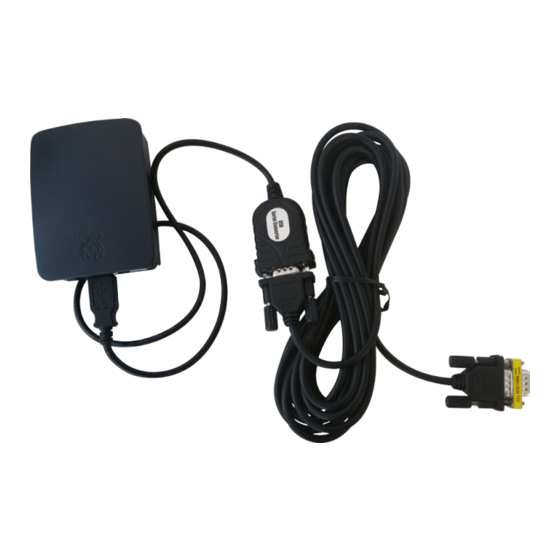

Step 3: Connect USB-Serial Cable to USB Port of
Raspberry Pi (as seen here).
EFFORT REWARDED.
1
Raspberry Pi
3
USB to Null
Modem Adapter
2
Power Adaptor
4
Gender Changer
myzone.org | 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Myzone Inbody 270
Summary of Contents for Myzone Inbody 270
- Page 1 EFFORT REWARDED. Inbody 270 & Raspberry Pi Setup Instructions Step 1: Please check that you’ve received all of the following. Raspberry Pi Power Adaptor USB to Null Gender Changer Modem Adapter Step 2: Connect USB to Null modem Adapter to Gender Changer Step 3: Connect USB-Serial Cable to USB Port of Raspberry Pi (as seen here).
- Page 2 | Inbody 270 & Raspberry Pi Setup Instructions Step 4: Connect other end of connected cable run (Gender Changer) to port on back of scales. Step 5: Connect network cable to Raspberry Pi. Step 6: Connect Power Adaptor to mains and to Raspberry Pi.
- Page 3 | Inbody 270 & Raspberry Pi Setup Instructions Step 7: Now that the hardware Step 8: Enter Administrator Step 9: Press arrow to is connected you will need to Password (0000) and press navigate to 4th page. configure the scales. On the Enter.
