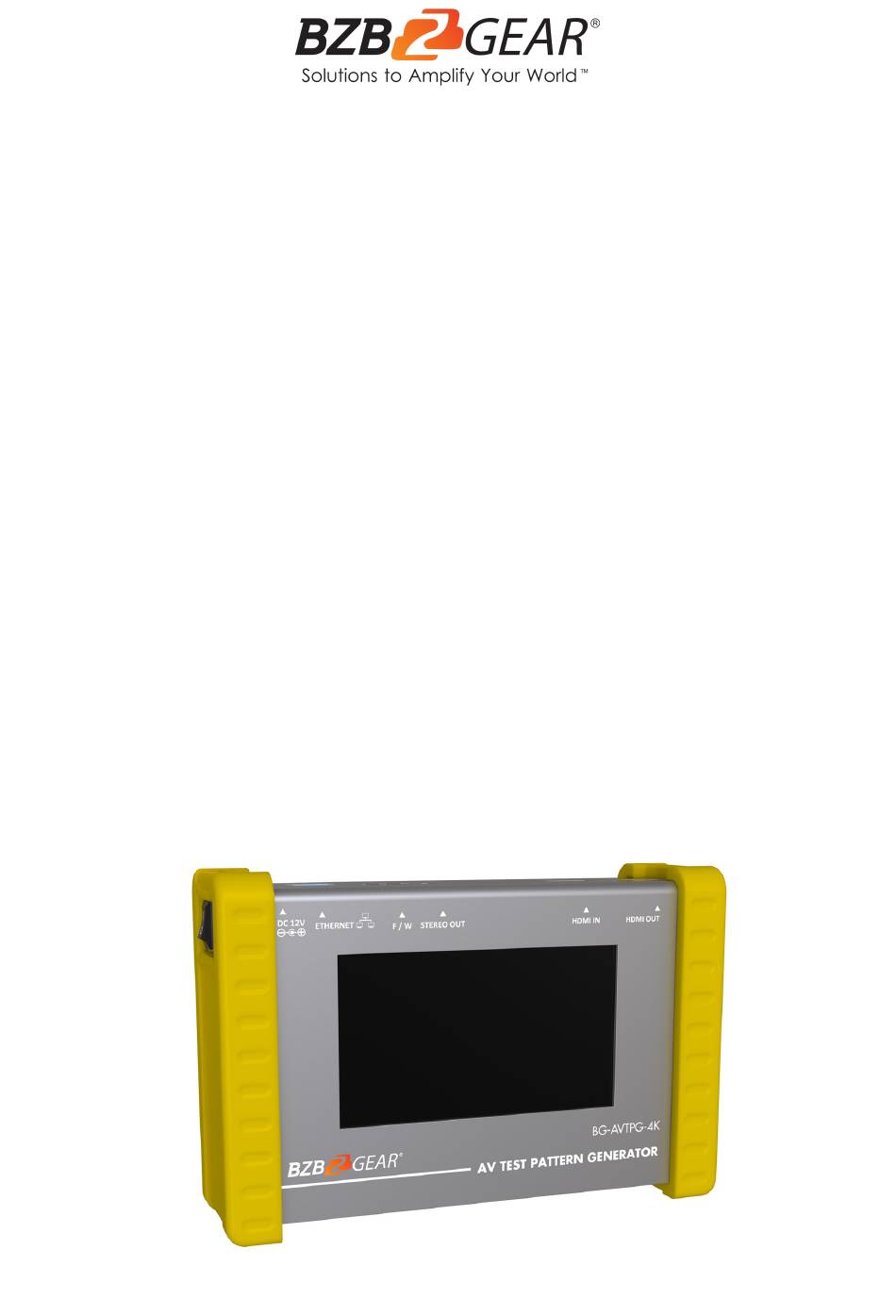

- Page 1 BG-AVTPG-4K 1080P/4K UHD HDMI 2.0 18Gbps Video Test Pattern Generator/Tester/Analyzer with Ethernet User Manual...
- Page 2 BZBGEAR BG-AVTPG-4K PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
Technical Specifications Operation Controls and Functions Menu Operation Generator Receiver HDCP Test EDID analysis Loop Test Ethernet Control (TCP/IP) Upgrade the BG-AVTPG-4K Eye Pattern Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-AVTPG-4K HDMI 2.0 Generator / Analyzer is a versatile HDMI 2.0 toolbox with full bandwidth and HDCP 2.2 support. For ease of HDMI 2.0 installations, BG-AVTPG-4K is equipped with both HDMI 2.0 pattern generator and analyzer. This handy and portable gadget has long hours of operation with its chargeable battery and features video pattern generation, touch panel control, cloud based firmware upgrade access and many other... -
Page 6: Packing List
BZBGEAR BG-AVTPG-4K PRODUCT MANUAL Packing List ● 1x BG-AVTPG-4K ● 1x User Manual ● 1x DC 12V 5A power supply ● 1х Quick Start Guide Technical Specifications Technical Role of usage Generator / Analyzer Video bandwidth Single link 600MHz (18Gbps) HDMI compliance HDMI 2.0 and below... -
Page 7: Operation Controls And Functions
BZBGEAR BG-AVTPG-4K PRODUCT MANUAL Operation Controls and Functions 1. Power Switch: Power ON/OFF switch 2. Touch Panel: Touch screen for control 3. OUTPUT: HDMI output. Crystal clear images with resolutions up to 4K2K@60Hz 4. INPUT: HDMI input. Crystal clear image with resolutions up to 4K2K@60Hz 5. -
Page 8: Menu Operation
BZBGEAR BG-AVTPG-4K PRODUCT MANUAL Menu Operation The major functions of the device are listed below ● HDMI Generator ● HDMI Receiver ● HDCP Test ● EDID Test ● Loop Test Please refer to the table below and the following section to know how to operate these functions. -
Page 9: Generator
SINE WAVE menu, users can set up the bits per sample, sample rate, level, and audio channel. 5. Testing HDCP on an HDMI TV or HDMI device. BG-AVTPG-4K provides a tool to test HDCP on an HDMI equipped HDTV. For more details please see the HDCP test section. -
Page 10: Receiver
HDMI source device. 2. Testing the Video from the HDMI source. BG-AVTPG-4K supports the incoming video from the HDMI source/device to ensure the user is receiving valid video signals by displaying the information of the incoming signal. -
Page 11: Hdcp Test
HDCP Test BG-AVTPG-4K as HDCP Receiver When BG-AVTPG-4K set as receiver it can verify HDCP of the video player or other device under test. BG-AVTPG-4K provides three options HDCP 1.4 / HDCP 2.2 / no HDCP for users to select and confirm the HDCP authentication of the device under test. -
Page 12: Edid Analysis
● Touch Enable HDCP 1.4 or Enable HDCP 2.2 button. EDID analysis BG-AVTPG-4K offers the most convenient way for users to analyze EDID signals. Users can verify, view, and learn the EDID of an HDMI HDTV or other devices. Procedure of EDID Analyze: ●... -
Page 13: Loop Test
BG-AVTPG-4K offers a unique estimator for evaluating the quality of cables or devices under test. Users can simply connect the cable or device under test to BG-AVTPG-4K to form a loop, the monitor will examine the HDMI bitstream pixel by pixel. The measurement statistics will be displayed on screen and offer useful information for building a robust A/V... -
Page 14: Ethernet Control (Tcp/Ip)
BZBGEAR BG-AVTPG-4K PRODUCT MANUAL Ethernet Control (TCP/IP) BG-AVTPG-4K also provides user control through Ethernet. The Ethernet control includes many major functions and offers users development software to perform advanced settings. (TCP Port: 6133) Reply Format: ● Received = ACK + Feedback Date ●... - Page 15 BZBGEAR BG-AVTPG-4K PRODUCT MANUAL Resolution: Index Resolution Index Resolution Index Resolution 720x480i@60 0x13 1920x1080p@24 0x26 1920xl200pRB 720x576i@50 0x14 1920x1080p@23.976 0x27 3840x2160p@60 720x480p@60 0x15 640x480p@60 0x28 3840x2160p@59.94 720x576p@50 0x16 640x480p@75 0x29 3840x2160p@50 1280x720p@60 0x17 800x600p@60 0x2a 3840x2160p@30 1280x720p @59.94 0x18 800x600p@75 0x2b 3840x2160p@29.97...
- Page 16 BZBGEAR BG-AVTPG-4K PRODUCT MANUAL Index Default Pattern Index Default Pattern Index Default Pattern Ramp Blue H 2 0x1b Green 100 0x2b Chess 1 Ramp Black to Red V 0x1c Blue 100 0x2c Chess 2 Ramp Green V 1 0x1d White 100...
-
Page 17: Upgrade The Bg-Avtpg-4K
BZBGEAR BG-AVTPG-4K PRODUCT MANUAL Upgrade the BG-AVTPG-4K User can upgrade the firmware and pattern on the BG-AVTPG-4K through the USB interface. If users encounter a problem with the upgrade, please contact the supplier of BG-AVTPG-4K. Procedure for Firmware Upgrade: *Before updating the firmware of BG-AVTPG-4K, please ensure that the new firmware files are in the root directory of USB Flash Drive. - Page 18 3~5 seconds. While updating, please do not remove the USB Flash Drive. ➢ After completing the firmware update, please reboot the BG-AVTPG-4K ● ARM ➢ Make sure the arm.dat file is in the root directory of USB.
- Page 19 ● FPGA ➢ Ensure the fpga.dat file is in the root directory of USB. ➢ Connect the USB Flash Drive on BG-AVTPG-4K USB interface. ➢ Select Firmware from the System Menu and choose the FPGA button. ➢ Touch the Update button to do firmware update. The process of firmware update will take about 5~10 seconds.
- Page 20 ● Pattern ➢ Create a folder named “usr_pic” on USB Flash Drive. ➢ Ensure the file of pattern which user desires to update on the BG-AVTPG-4K is in the usr_pic directory of USB Flash Drive. The file suffix is .jpg.
-
Page 21: Eye Pattern
(MSOX92004A) to ensure quality. The test result of this device (with Simplo battery) is shown as below: *This result is representative of the BG-AVTPG-4K. Each BG-AVTPG-4K’s performance is close to these results but not exactly the same. Summary of Results... - Page 22 BZBGEAR BG-AVTPG-4K PRODUCT MANUAL Pass # Failed # Trials Test Name Actual Value Margin Pass Limits HF1-8: D1 Mask Test (TP2 EQ with Worst 0.000 50.0% No Mask Failures Case Negative Skew) HF1-5: D2 Maximum Differential Voltage 586 m 24.9% VALUE <= 780 m...
-
Page 23: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 24: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
