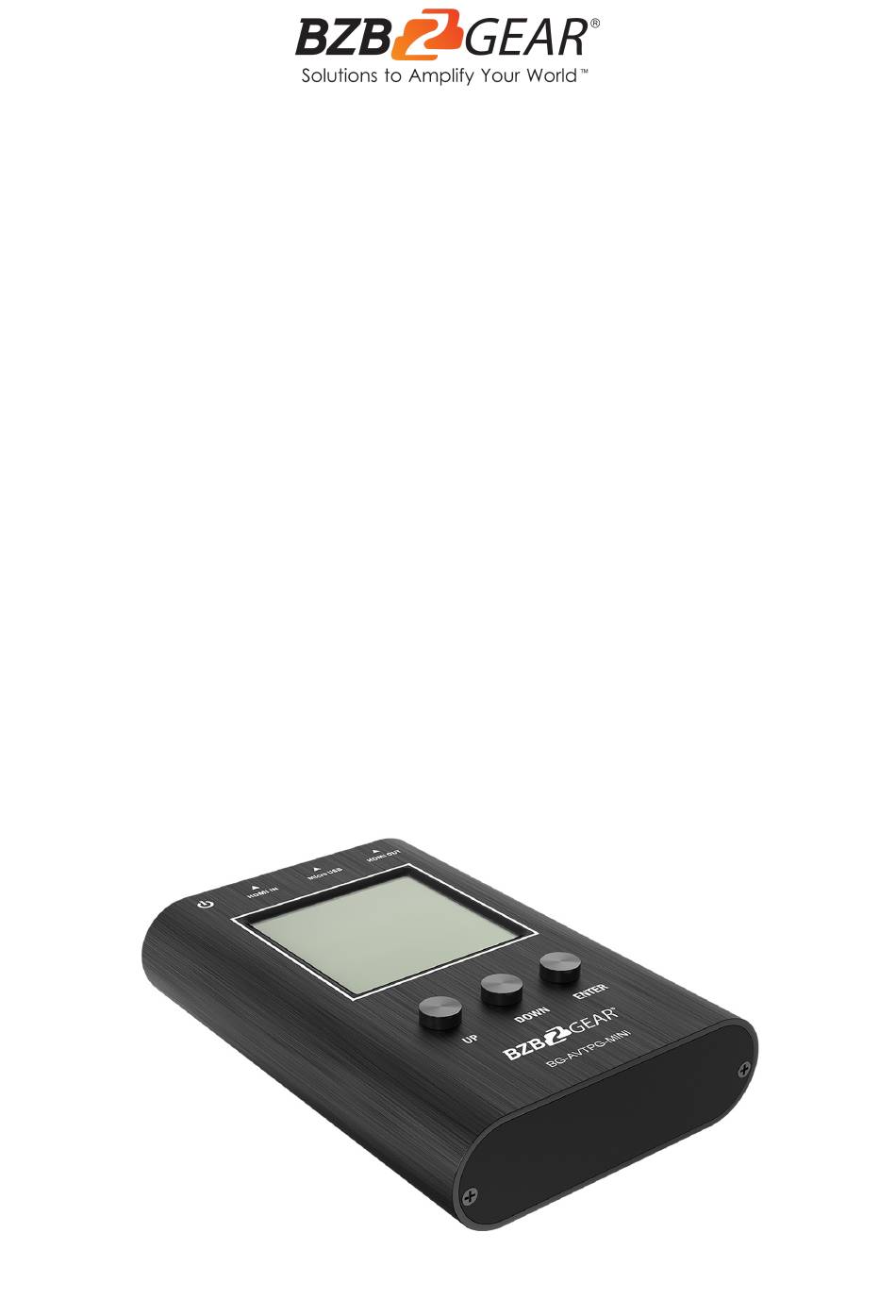

- Page 1 BG-AVTPG-MINI 1080P/4K UHD HDMI 2.0 18Gbps Portable Signal Test Generator/Analyzer User Manual...
- Page 2 BZBGEAR BG-AVTPG-MINI PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-AVTPG-MINI PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Menu Operation Operation Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
4K@60Hz 4:4:4 or 4K HDR, including HDMI 1.4 resolutions such as 1080P and 720P. With adjustable color depth, installers can instantly test the connected display’s capabilities. In “Sink” mode the BG-AVTPG-MINI can be used as a reliable HDMI signal detector to have important information such as resolution, frame rate, HDCP version. These important pieces of information can help installers deal with tedious HDMI compatibility issues with ease. -
Page 6: Technical Specifications
BZBGEAR BG-AVTPG-MINI PRODUCT MANUAL Technical Specifications Technical Role of usage HDMI 2.0a Installation Gear Video bandwidth Single link 600MHz [18Gbps] HDMI compliance HDMI 2.0 and below HDCP compliance HDCP 2.2 and below up to 4K60 4:4:4 8bit, Video Support 4K2K60 4:2:0 16bit (HDR) ESD protection Human body model —... -
Page 7: Operation Controls And Functions
BG-AVTPG-MINI will automatically enter battery saving mode after 1 minute of idle. During battery saving mode, if the user would like to wake the BG-AVTPG-MINI, press any button. When plugging in an active HDMI input the BG-AVTPG-MINI will NOT enter battery saving mode. -
Page 8: Menu Operation
BZBGEAR BG-AVTPG-MINI PRODUCT MANUAL Menu Operation Menu Display Items Remarks Resolution Color space Color depth SOURCE MODE HDCP provide three test patterns for user to Pattern use (Ramp, Toggle, Color Bar) Resolution Color space Color depth read the HDMI information from input... -
Page 9: Operation
Source Mode How to run Source Mode: ● Make sure to connect the BG-AVTPG-MINI HDMI output port and the display. ● Use buttons to select MODE category and enter SOURCE mode. ● Use buttons to set up the output signal format and video testing pattern. - Page 10 PRODUCT MANUAL Sink Mode When BG-AVTPG-MINI is in sink mode, it can read the HDMI source’s information and the input HDMI can be passed through to an HDMI capable display if needed (as shown below). How to run Sink Mode: ●...
- Page 11 How to run Cable Mode: ● Ensure a tight connection between the BG-AVTPG-MINI and the cable. ● Use the buttons to select the MODE category and enter CABLE mode. ● Keep pressing ENTER button for about 5 seconds to start the link test. The BG-AVTPG-MINI will evaluate the HDMI signal quality based on HDMI 2.0...
-
Page 12: Application Example
Please be advised that the test result is based on the cable connection and the signal integrity of both input and output from BG-AVTPG-MINI. The indicator is usually a good reference for cable quality, but any other source or display in consideration plays an important role in the final stability of the HDMI 2.0 connection. -
Page 13: Tech Support
Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 14: Warranty
BZBGEAR BG-AVTPG-MINI PRODUCT MANUAL Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. -
Page 15: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 16: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
