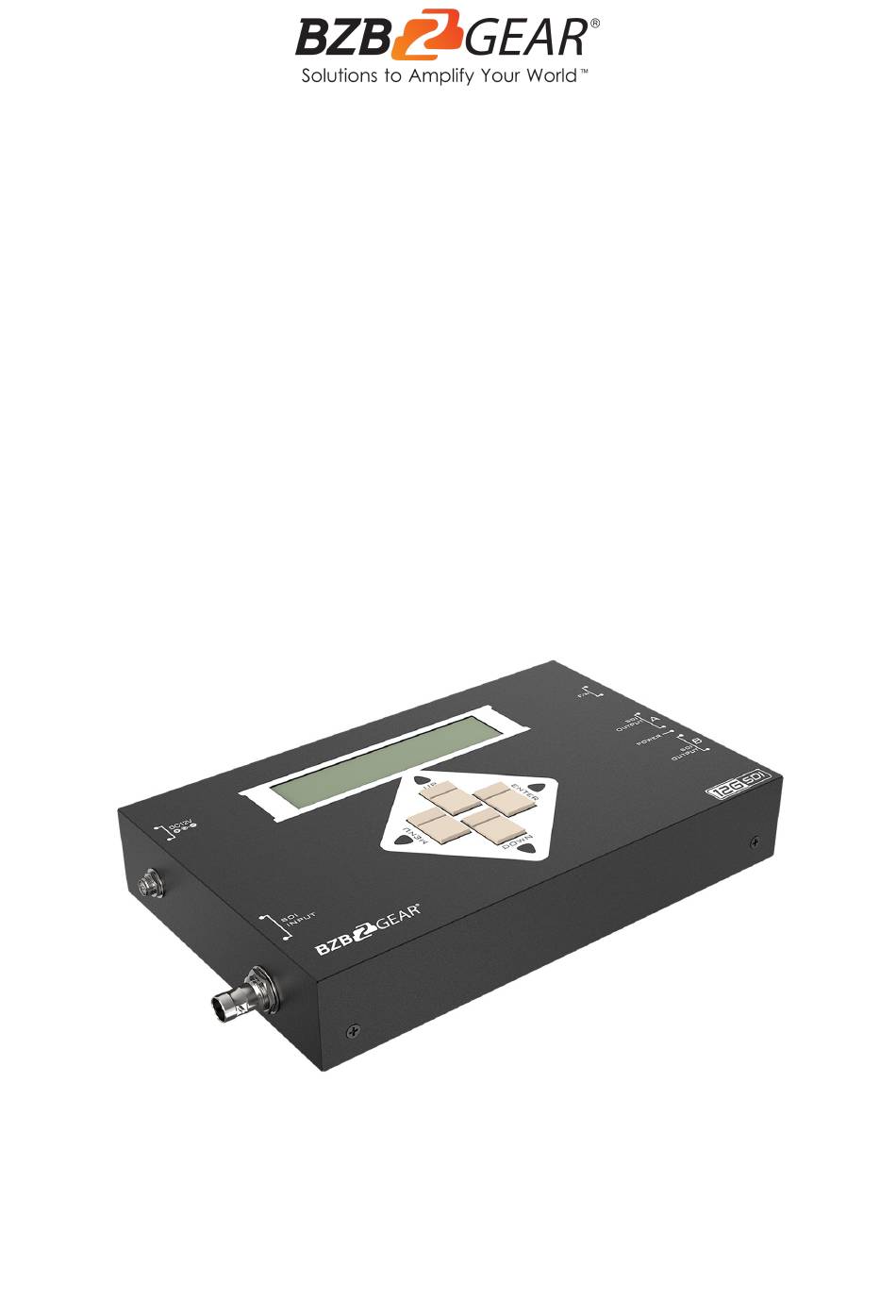

- Page 1 BG-SDITPG 12G/6G/3G/HD/SD-SDI Video Test Pattern Generator/Tester/Analyzer User Manual...
- Page 2 BZBGEAR BG-SDITPG PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-SDITPG PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Connection Diagram Appendix Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
(SMPTE-291M) are also provided. BG-SDITPG can support up to 8 channel AES compliant audio with a 48KHz sample rate. It is equipped with four buttons and an LCM screen for ease of use. The BG-SDITPG provides a cost-effective way to calibrate and test SDI enabled video devices and displays. -
Page 6: Technical Specifications
BZBGEAR BG-SDITPG PRODUCT MANUAL Technical Specifications Role of usage Pattern generator Technical SDI standards 12G/6G/3G/HD/SD-SDI Auto SDI rate detection Supported protocols SMPTE 259M (270 Mbps / 360 Mbps) SMPTE 292M / HDTV (1.485 & 1.485/1.001Gbps) SMPTE 424/425M (2.97 & 2.97/1.001Gbps) SMPTE ST-2081 (5.94&5.94/1.001Gbps) -
Page 7: Operation Controls And Functions
BZBGEAR BG-SDITPG PRODUCT MANUAL Operation Controls and Functions 1. POWER LED: Power LED indicator 2. SDI OUTPUT: Connect to an SDI device for SDI signal output either from the chosen pattern or the SDI source signal 3. Mini-USB: F/W update 4. - Page 8 BZBGEAR BG-SDITPG PRODUCT MANUAL 6. PUSH BUTTONS: ● [Menu] - Trigger the menu operation ● [Enter] - Enter the menu item ● [Up] - Choose the last menu item ● [Down] - Choose the next menu item · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 9: Connection Diagram
BZBGEAR BG-SDITPG PRODUCT MANUAL Connection Diagram Notice: 1. In HDMI bypass mode, users must be aware that jitters coming from HDMI sources such as DVD players may be much higher than normal requirements according to SMPTE requests on HD-SDI signals. This will result in SDI output with high jitters or even no SDI outputs! 2. -
Page 10: Appendix
BZBGEAR BG-SDITPG PRODUCT MANUAL Appendix ● Data Identification Word of Ancillary Data Packet ANC Data SDID/DBN 352M 0x41 0x01 RP-165-EDH* 0xF4 0x00 * Data Type 1(SMPTE-291M) ● Built-in Video Pattern · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... - Page 11 BZBGEAR BG-SDITPG PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 12: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
