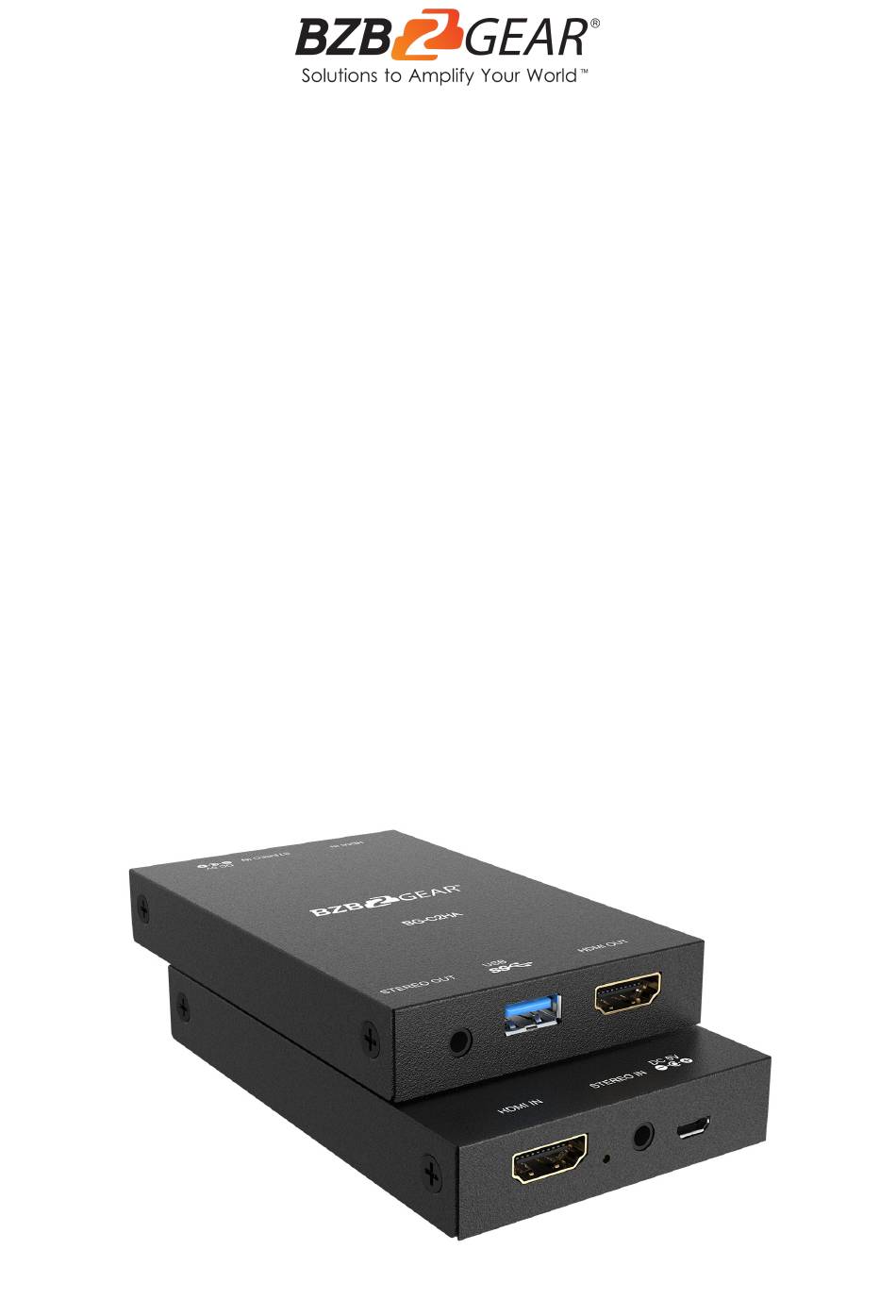

- Page 1 BG-C2HA 1080P Full HD USB 3.0 Full HD Video Capture Device/Box With HDMI 2.0 Loop-Out & Audio User Manual...
- Page 2 BZBGEAR BG-C2HA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-C2HA PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Technical Specifications Operation Controls and Functions Troubleshooting Usb Pin Definition Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-C2HA is a USB 3.0 full HD video capture device with HDMI 2.0a loop out & audio provides a professional way to capture HDMI video signals. It utilizes the USB 3.0 interface to achieve high-speed transmission. Additionally, the HDMI input and loop out can support up to 4K2K@60. -
Page 6: Technical Specifications
BZBGEAR BG-C2HA PRODUCT MANUAL Technical Specifications Technical USB Compliance Max. Data Rate 350 Mbps Max. USB Resolution 1080p@60 Audio Support 2ch 16 bit PCM 8 KV - Contact Discharge ESD Protection 15KV - Air Discharge Mechanical Housing Design Metal Casing Style... -
Page 7: Operation Controls And Functions
BZBGEAR BG-C2HA PRODUCT MANUAL Operation Controls and Functions 1. HDMI IN: Connect to an HDMI source. 2. LED INDICATOR: Input signal indicator. 3. STEREO AUDIO IN: Embed audio to the HDMI out or USB using a 3.5mm stereo mini cable. - Page 8 BZBGEAR BG-C2HA PRODUCT MANUAL Video Streaming Create a Video Stream Users can create video streams on their streaming service platform of choice. The steps below show how to complete the video streaming settings for Twitch and YouTube. Twitch 1. Browse the Twitch website (https://www.twitch.tv/) and log in, then select "Creator Dashboard"...
- Page 9 BZBGEAR BG-C2HA PRODUCT MANUAL 3. Go back to Twitch and select "Channel" from your account drop-down menu. 4. At this point, you will see the player start live streaming. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 10 BZBGEAR BG-C2HA PRODUCT MANUAL YouTube 1. Browse the YouTube website (https://www.youtube.com/) and log in, then lick "Go live" from the "Create" icon menu at the top right of the screen. * If your account is using YouTube for the first time to create a video stream, you need to wait 24 hours to enable the function.
- Page 11 BZBGEAR BG-C2HA PRODUCT MANUAL 3. You will see "Stream key" from the “STREAM SETTINGS” below. Copy the "Stream key" and paste it into the "Stream Key" field in the OBS, then click "Start Streaming" in the software. * Please refer to steps 4-6 of the OBS software control program.
- Page 12 BZBGEAR BG-C2HA PRODUCT MANUAL 5. The player on YouTube will start live streaming. Stream and record videos with OBS OBS is a popular USB capture freeware and has excellent compatibility. Please start with OBS if users are not familiar with USB capture devices.
- Page 13 BZBGEAR BG-C2HA PRODUCT MANUAL Start the software control program After downloading the software, please open it and follow the below steps to complete the video streaming settings. 1. First, find the "Scenes" window, click "+" in the lower left corner, and then enter the name of the scene to create a new scene.
- Page 14 BZBGEAR BG-C2HA PRODUCT MANUAL 2. Find the "Source" window, click "+" in the lower left corner, and then select "Display Capture" or "Video Capture Device" to create a new source. 3. Next, you can set display capture properties. If you select "Display Capture" in step 2, you can select the primary monitor or other extended monitor as the display source.
- Page 15 BZBGEAR BG-C2HA PRODUCT MANUAL 4. Click "Settings" and then select "Stream" to perform streaming settings. Users can choose service providers, including Twitch, YouTube, etc. 5. Paste the stream key provided by the service provider into the "Stream Key" field, then click "Apply"...
- Page 16 BZBGEAR BG-C2HA PRODUCT MANUAL 7. On the other hand, users can also click "Start Recording" to record videos with OBS. Besides, you can click "Settings" and then select "Output" to set “Recording Path” and “Recording Format”. Note: The procedures the manual demonstrates are based on the interface that each website provides at the time when the manual is written.
-
Page 17: Troubleshooting
BZBGEAR BG-C2HA PRODUCT MANUAL Troubleshooting Our USB device has been subjected to rigorous testing before shipping. Most of the incompatibilities we have experienced are not from the USB capture device itself, but from the sophisticated software and hardware combinations of PCs or laptops. Please try the following suggestions: 1. -
Page 18: Usb Pin Definition
BZBGEAR BG-C2HA PRODUCT MANUAL Usb Pin Definition · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 19: Application Example
BZBGEAR BG-C2HA PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 20: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
