- Page 1 BG-CSA 1080P Full HD USB 3.1 3G-SDI Capture Device with Scaler and Audio Embedding User Manual...
- Page 2 BZBGEAR BG-CSA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-CSA PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precautions Introduction Features Packing List Technical Specifications Video Streaming Stream and Record Videos with OBS USB Pin Definition Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction

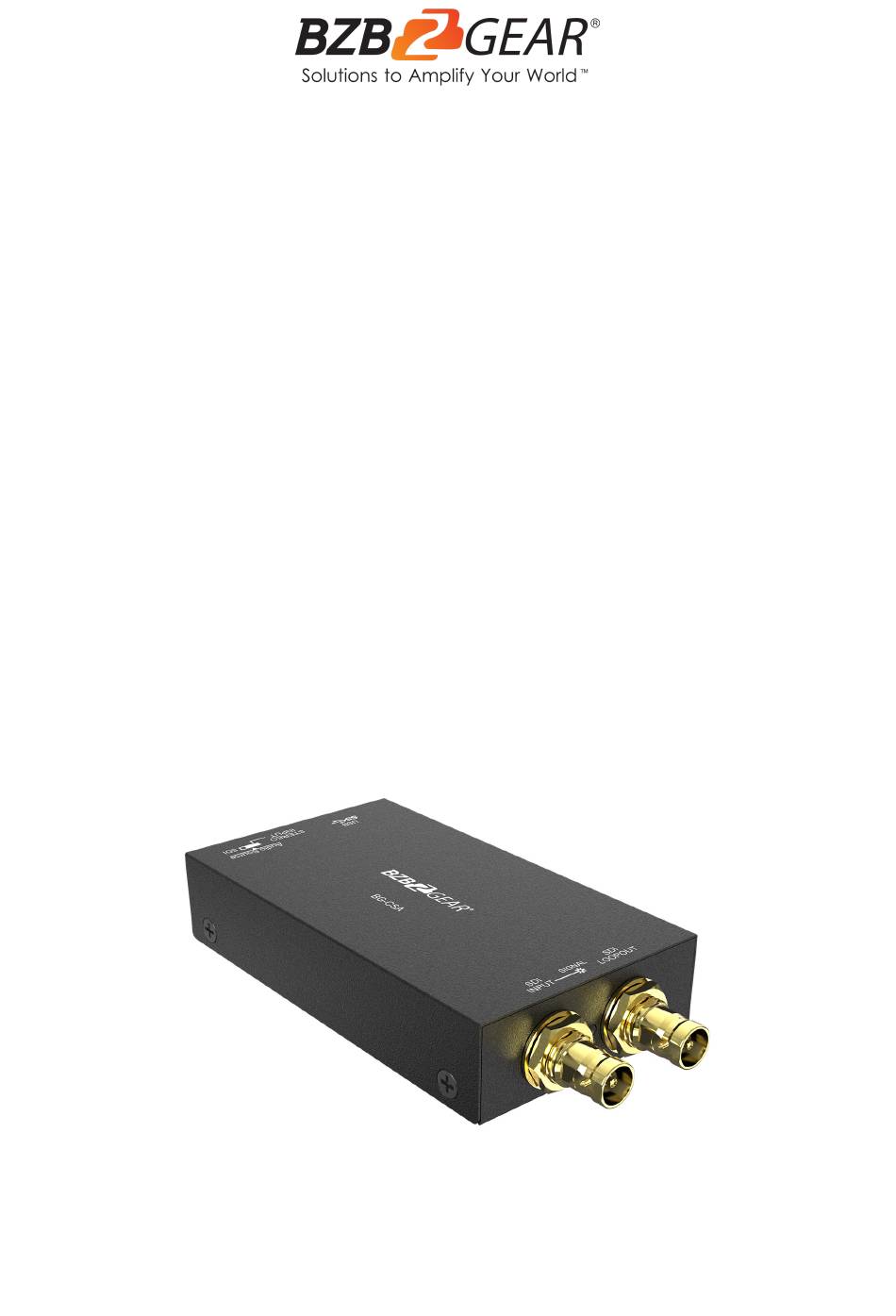

PRODUCT MANUAL Introduction The BG-CSA is a USB 3.1 3G-SDI capture device with scaler and audio embedding that allows for capture of 3G/HD/SD-SDI signals. It utilizes a USB 3.1 interface to achieve high speed data transmission to capture and display original uncompressed 3G/HD/SD-SDI signals with realistic colors. -
Page 6: Technical Specifications
BZBGEAR BG-CSA PRODUCT MANUAL Technical Specifications Technical Max. Data Rate 350 Mbps UAC Video Output Resolution SMPTE 424M-2.97 Gbps 3G-SDI: 1080p at 50/59.94/60 Hz (4:2:2) SMPTE 274M-1.485 Gbps HD-SDI: 1080p at 23.98, 24, 25, 29.97, 30 Hz, 1080i at 50, 59.94, 60 Hz SMPTE 292M-1.485 Gbps... - Page 7 BZBGEAR BG-CSA PRODUCT MANUAL Operation Controls and Functions 1. USB OUT: Connect to a USB host computer 2. STEREO AUDIO IN: Connect to analog stereo audio source 3. AUDIO SWITCH: [left] Audio from stereo audio in, [right] Audio from SDI 4.
-
Page 8: Video Streaming
BZBGEAR BG-CSA PRODUCT MANUAL Video Streaming Create a Video Stream Users can create video streams on their streaming service platform of choice. The below steps show how to complete the video streaming settings from Twitch and YouTube. Twitch 1. Browse the Twitch website (https://www.twitch.tv/) and log in, then select "Creator Dashboard"... - Page 9 BZBGEAR BG-CSA PRODUCT MANUAL 3. Go back to Twitch and select "Channel" from your account drop-down menu. 4. At this point, you will see the player start live streaming. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
- Page 10 BZBGEAR BG-CSA PRODUCT MANUAL YouTube 1. Browse the YouTube website (https://www.youtube.com/) and log in, then click "Go live" from the "Create" icon menu at the top right of the screen. * If your account is using YouTube for the first time to create a video stream, you need to wait 24 hours to enable the function.
- Page 11 BZBGEAR BG-CSA PRODUCT MANUAL 4. Next, go back to YouTube, and then wait for 30-60 seconds, the player will display the live preview. At the same time, the "GO LIVE" button at the top right will turn blue, please press this button.
-
Page 12: Stream And Record Videos With Obs
BZBGEAR BG-CSA PRODUCT MANUAL Stream and Record Videos with OBS OBS is a popular USB capture freeware and has excellent compatibility. Please start with OBS if users are not familiar with USB capture devices. Download the software Browse the download page of the OBS official website (https://obsproject.com/download), then select the suitable computer operating system and start downloading. - Page 13 BZBGEAR BG-CSA PRODUCT MANUAL 1. First, find the "Scenes" window, click "+" in the lower left corner, and then enter the name of the scene to create a new scene. 2. Find the "Source" window, click "+" in the lower left corner, and then select "Display Capture"...
- Page 14 BZBGEAR BG-CSA PRODUCT MANUAL 4. Click "Settings" and then select "Stream" to perform streaming settings. Users can choose service providers, including Twitch, YouTube, etc. 5. Paste the stream key provided by the service provider into the "Stream Key" field, then click "Apply" and "OK" after setting. In addition, users can lick "Get Stream Key"...
- Page 15 BZBGEAR BG-CSA PRODUCT MANUAL Note: The procedures the manual demonstrates are based on the interface that each website provides at the time when the manual is written. The most current method of live streaming should be similar to the above procedures but is subject to change by the website interface update by the social media platform.
-
Page 16: Usb Pin Definition
BZBGEAR BG-CSA PRODUCT MANUAL USB Pin Definition · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 17: Application Example
BZBGEAR BG-CSA PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 18: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 19: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. ·... -
Page 20: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
