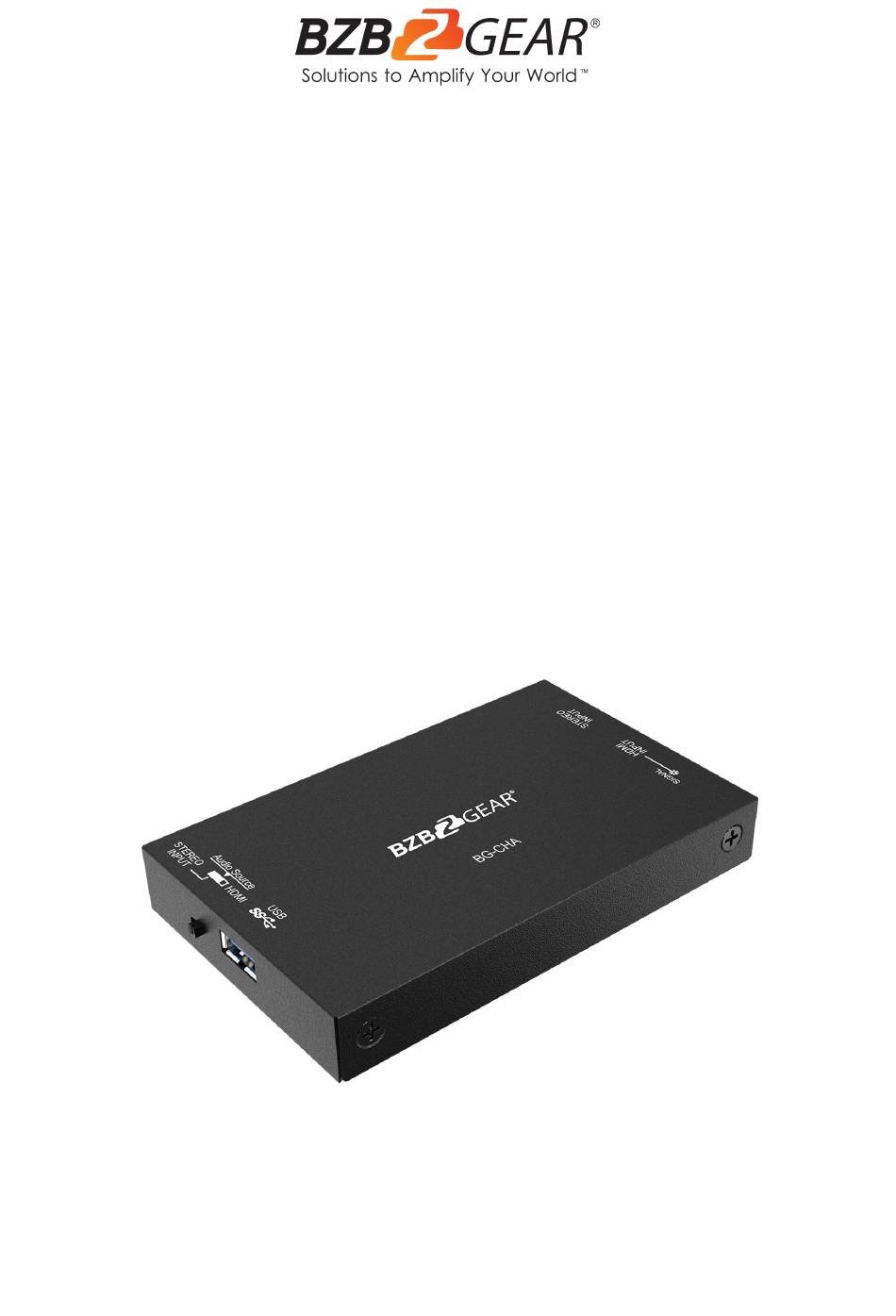

- Page 1 BG-CHA 1080P Full HD USB 3.1 Video Capture Device with Scaler and Audio Embedding User Manual...
- Page 2 BZBGEAR BG-CHA PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-CHA PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precautions Introduction Features Packing List Technical Specifications Operation Controls and Functions Video Streaming Stream and record videos with OBS Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-CHA is a USB 3.1 full HD video capture device with scaler and audio embedding that allows for capture of HDMI video signals. It utilizes a USB 3.1 interface to achieve high speed data transmission to capture and display original uncompressed 1080p60 signals with realistic colors. -
Page 6: Technical Specifications
BZBGEAR BG-CHA PRODUCT MANUAL Technical Specifications Technical Max. Data Rate 350 Mbps UAC Video Output Resolution UHD Video Standards： 1080p at 60/50/30/25/24 Hz HD Video Standards： 720p at 60/50/30/25/24 Hz 1080p at 23.98/24/25/29.97/30 Hz VESA Standards： 1280x1024p at 60/50/30/25/24 Hz... -
Page 7: Operation Controls And Functions
BZBGEAR BG-CHA PRODUCT MANUAL Operation Controls and Functions 1. AUDIO SWITCH: [left] Audio from stereo audio in, [right] Audio from HDMI 2. USB OUT: Connect to a USB host (PC, NB, MAC…) 3. LED INDICATOR: Input signal indicator LED 4. HDMI IN: Connect to a HDMI source 5. - Page 8 BZBGEAR BG-CHA PRODUCT MANUAL into the "Stream Key" field in the OBS, then click "Start Streaming" in the software. * Please refer to steps 4-6 of the OBS software control program. 3. Go back to Twitch and select "Channel" from your account drop-down menu.
- Page 9 BZBGEAR BG-CHA PRODUCT MANUAL YouTube 1. Browse the YouTube website (https://www.youtube.com/) and log in, then click "Go live" from the "Create" icon menu at the top right of the screen. * If your account is using YouTube for the first time to create a video stream, you need to wait 24 hours to enable the function.
- Page 10 BZBGEAR BG-CHA PRODUCT MANUAL 4. Next, go back to YouTube, and then wait for 30-60 seconds, the player will display the live preview. At the same time, the "GO LIVE" button at the top right will turn blue, please press this button.
-
Page 11: Stream And Record Videos With Obs
BZBGEAR BG-CHA PRODUCT MANUAL Stream and record videos with OBS OBS is a popular USB capture freeware and has excellent compatibility. Please start with OBS if users are not familiar with USB capture devices. Download the software Browse the download page of the OBS official website (https://obsproject.com/download), then select the suitable computer operating system and start downloading. - Page 12 BZBGEAR BG-CHA PRODUCT MANUAL 1. First, find the "Scenes" window, click "+" in the lower left corner, and then enter the name of the scene to create a new scene. 2. Find the "Source" window, click "+" in the lower left corner, and then select "Display Capture"...
- Page 13 BZBGEAR BG-CHA PRODUCT MANUAL 4. Click "Settings" and then select "Stream" to perform streaming settings. Users can choose service providers, including Twitch, YouTube, etc. 5. Paste the stream key provided by the service provider into the "Stream Key" field, then click "Apply" and "OK" after setting. In addition, users can lick "Get Stream Key"...
- Page 14 BZBGEAR BG-CHA PRODUCT MANUAL Note: The procedures the manual demonstrates are based on the interface that each website provides at the time when the manual is written. The most current method of live streaming should be similar to the above procedures but is subject to change by the website interface update by the social media platform.
- Page 15 BZBGEAR BG-CHA PRODUCT MANUAL Usb Pin Definition Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 16: Tech Support
Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
