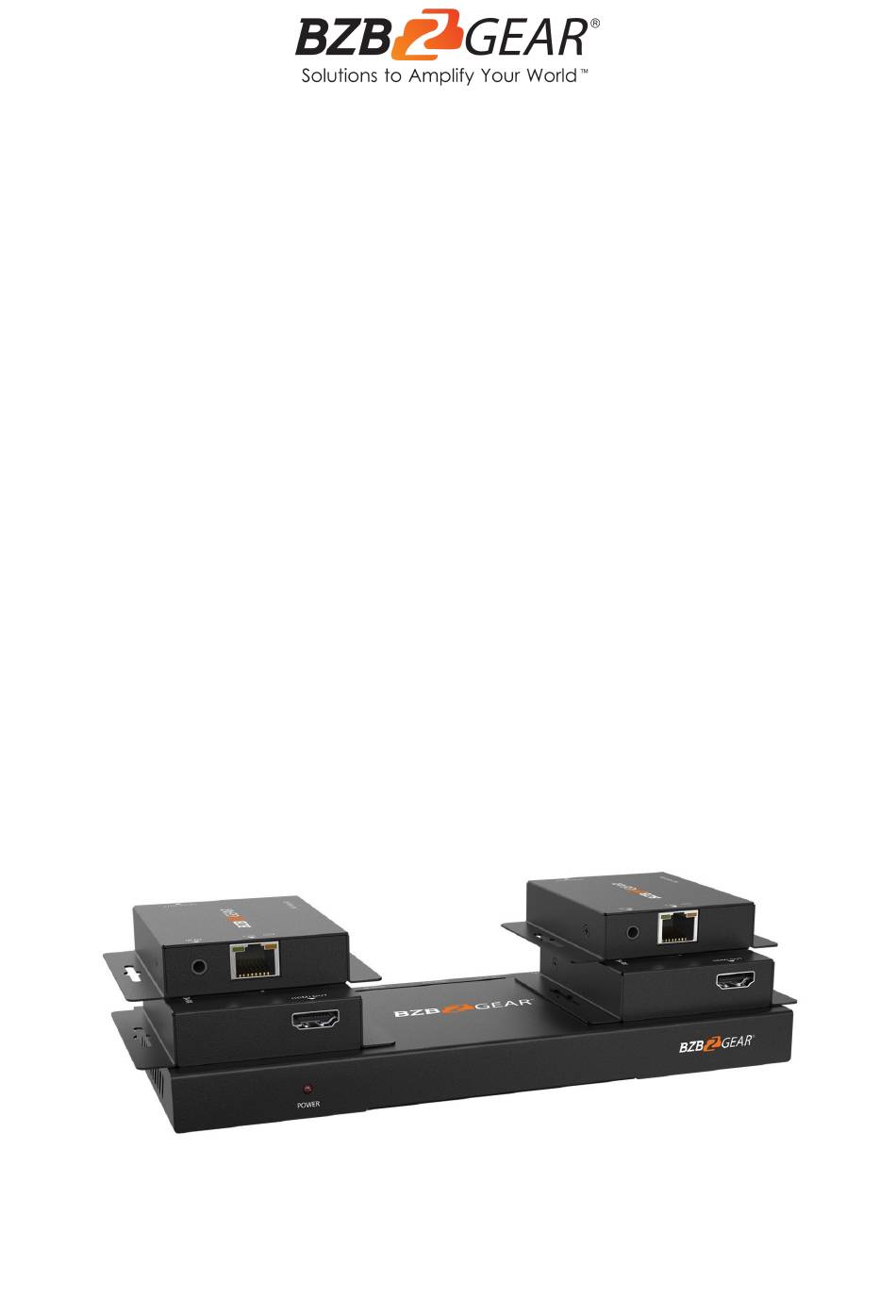

- Page 1 BG-HDA-E14 1X4 1080P/4K30 HDMI Splitter & Distribution Amplifier up to 230ft User Manual...
- Page 2 BZBGEAR BG-HDA-E14 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-HDA-E14 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precautions Introduction Features Packing List Technical Specifications Operation Controls and Functions IR Cable Pin Assignment EDID Mode Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-HDA-E14 is an HDMI 1x4 splitter that can distribute 1 HDMI source signal to 4 display devices. This unit supports video resolutions up to 4K2K@30Hz 4:4:4 and it is designed with 1 HDMI input, 1 HDMI loop output and 4 CAT outputs. The HDMI signal transmission distance can be extended up to 164 ft (50m) at a resolution of 4K30Hz, or 230 ft (70m) at 1080P@60Hz via a single CAT6 cable. -
Page 6: Technical Specifications
BZBGEAR BG-HDA-E14 PRODUCT MANUAL Technical Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 297MHz/10.2Gbps Video Resolution 480i ~1080p@50/60Hz, 4Kx2K@30Hz (4:4:4) Color Depth 8-bit, 10-bit, 12-bit (1080p@60Hz); 8-bit (4K@30Hz) Color Space RGB, YCbCr_4:4:4/4:2:2, YUV_4:2:0 Audio Formats LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio... -
Page 7: Operation Controls And Functions
BZBGEAR BG-HDA-E14 PRODUCT MANUAL Operation Controls and Functions Transmitter Panel No. Name Function Description POWER LED When the transmitter is powered on, the red power LED will be illuminated. CAT OUT (1~4) Connect to the CAT port of the receiver with a CAT6 cable. -
Page 8: Ir Cable Pin Assignment
BZBGEAR BG-HDA-E14 PRODUCT MANUAL IR Cable Pin Assignment IR Receiver and Blaster pin’s definition as below: Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters. When the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 9: Edid Mode
BZBGEAR BG-HDA-E14 PRODUCT MANUAL EDID Mode EDID settings shown below: EDID Mode EDID Description 0000 1080P, 2CH AUDIO 0001 1080P, DOLBY/DTS5.1 0010 1080P, HD AUDIO 0011 1080i, 2CH AUDIO 0100 1080i, DOLBY/DTS5.1 0101 1080i, HD AUDIO 0110 3D,1080P, 2CH AUDIO 0111 3D,1080P, DOLBY/DTS5.1... -
Page 10: Application Example
BZBGEAR BG-HDA-E14 PRODUCT MANUAL Application Example · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
