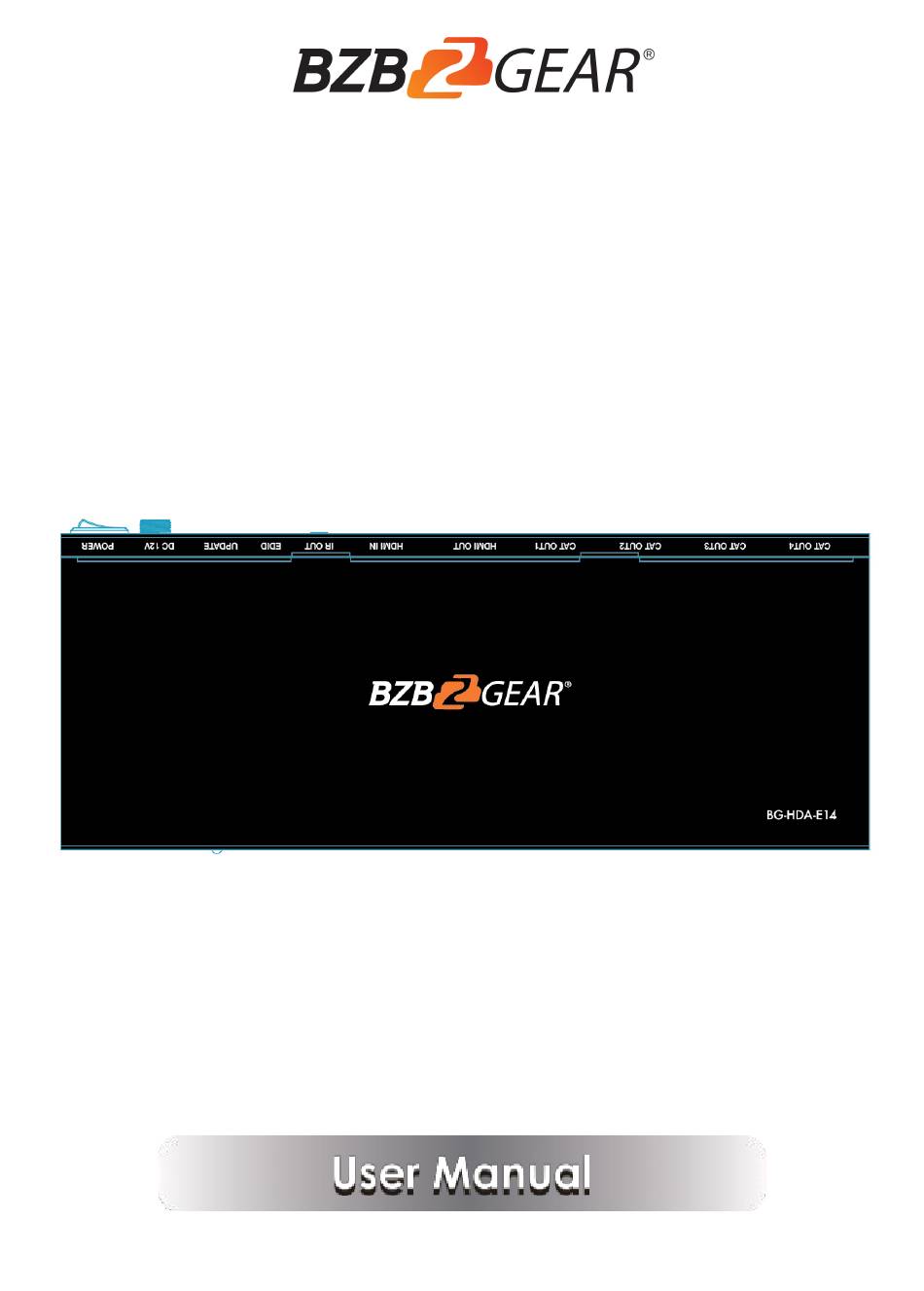

- Page 1 BG-HDA-E14 HDMI 1×4 Splitter over CAT6 (70m) Contact 1.888.499.9906 | support@bzbgear.com | bzbgear.com...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating, or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction This HDMI 1x4 Splitter can distribute 1 HDMI source signal to any 4 display devices. Supports video resolutions up to 4K2K@30Hz 4:4:4. It is designed with 1 HDMI input, 1 HDMI loop output and 4 CAT outputs. The HDMI signal 164 ft / 50 m at the resolution of transmission distance can be extended up to 4K30Hz, or 230 ft / 70 m at 1080P@60Hz... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 297MHz/10.2Gbps 480i ~1080p50/60Hz, 4Kx2K@30Hz (4：4：4) Video Resolution Color Depth 8-bit,10-bit,12-bit (1080p@60Hz); 8-bit (4K30Hz) Color Space RGB, YCbCr_4:4:4/4:2:2. YUV_4:2:0 LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio Formats Audio Human body model—±8kV (Air-gap discharge) &... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description When the transmitter is powered on, the red power LED POWER LED will be on. CAT OUT (1~4) Connect to the CAT port of the receiver with a CAT6 cable. Transmitter supports one-way POC function. -
Page 6: Receiver Panel
5.2 Receiver Panel Name Function Description HDMI signal output port. Connect to HDMI display HDMI OUT device such as HDTV. Connect to IR receiver cable, the IR signal will emit to the IR IN IR OUT port of the transmitter. CAT input port. -
Page 7: Ir Pin Definition
5.3 IR Pin Definition Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters. When the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 8: Edid Mode
6. EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 0000 1080P, 2CH AUDIO 0001 1080P, DOLBY/DTS5.1 0010 1080P, HD AUDIO 0011 1080i, 2CH AUDIO 0100 1080i, DOLBY/DTS5.1 0101 1080i, HD AUDIO 0110 3D,1080P, 2CH AUDIO 0111... -
Page 9: Application Example
7. Application Example... -
Page 10: Tech Support
9. Warranty BZBGEAR Pro AV products and Cameras come with a three-year warranty. An extended two-year warranty is available for our Cameras upon registration for a total of five years. For an extended two-year warranty on our Cameras, follow these steps: 1. -
Page 11: Mission Statement
We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank. BZBGEAR is your answer for applications requiring the latest pro AV and live streaming solutions.
