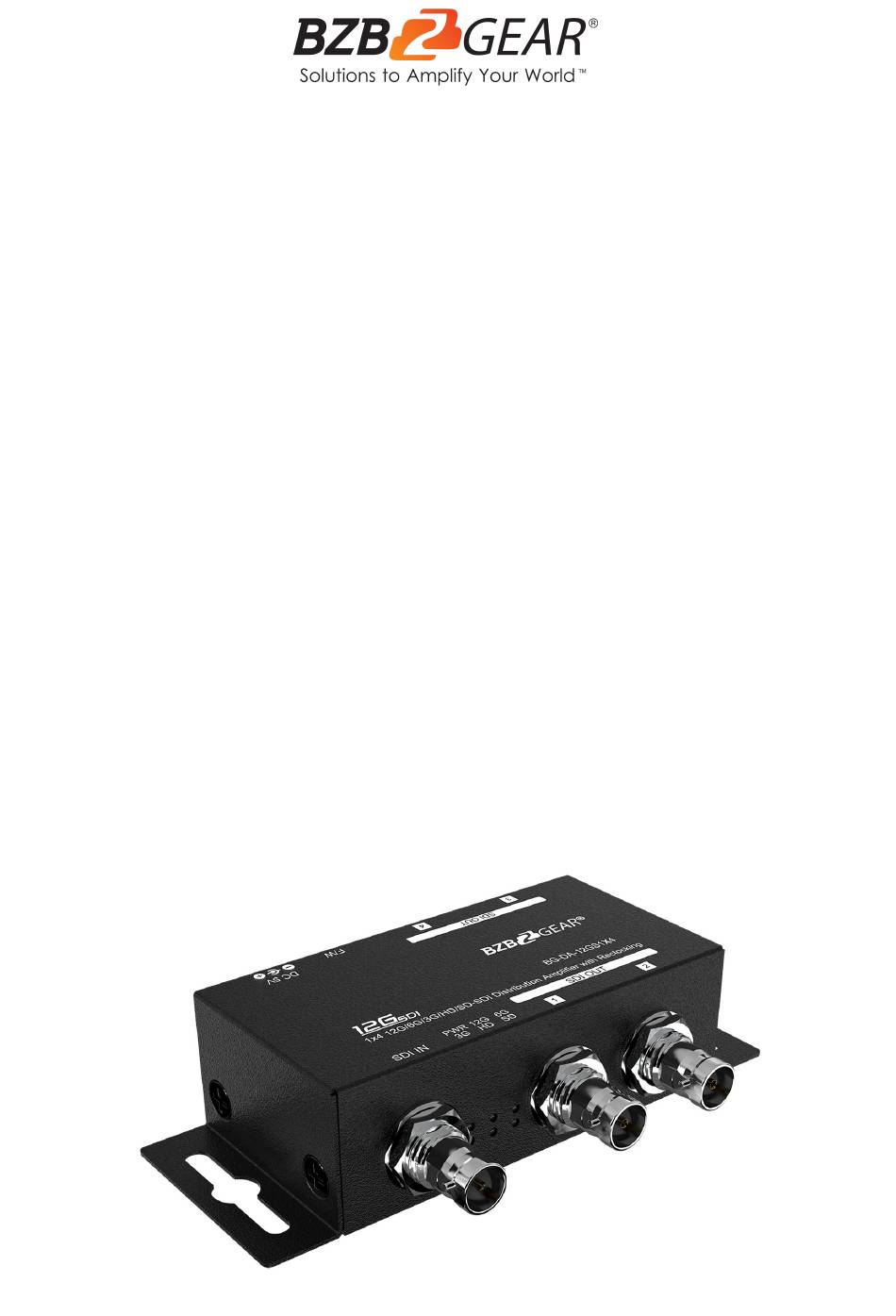

- Page 1 BG-DA-12GS1X4 1x4 12G/6G/3G/HD/SD-SDI Distribution Amplifier with Reclocking User Manual...
- Page 2 BZBGEAR BG-DA-12GS1X4 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-DA-12GS1X4 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Hardware Installation Signal Measurement Application Example Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
● This product does not contain parts that can be maintained or repaired by users. Damage caused by dismantling the product without authorization from BZBGEAR is not covered under the warranty policy. ● Installation and use of this product must strictly comply with local electrical safety standards. -
Page 5: Introduction

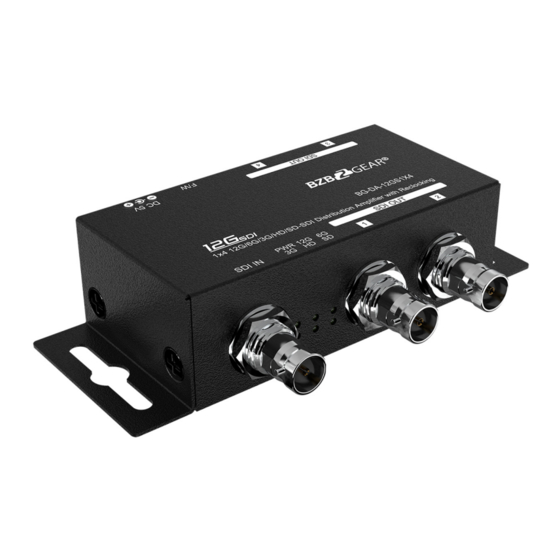

PRODUCT MANUAL Introduction The BG-DA-12GS1X4 is a 12G/6G/3G/HD/SD-SDI distribution amplifier with reclocking that receives one SDI input, duplicates it, and re-transmits four SDI outputs for real time multi-viewing. It reliably splits a SDI video source to four SDI compliant displays at the same time. -
Page 6: Specifications
BZBGEAR BG-DA-12GS1X4 PRODUCT MANUAL Specifications Technical SDI standard SD/HD/3G/6G/12G-SDI Multi-Rate Support Auto detection of SD, HD, 3G, 6G or 12G Signals SDI Compliance SMPTE 424M, SMPTE 292M, SMPTE 344M, SMPTE 259M, DVB-ASI, ST-2081(6G), ST2082(12G) SDI Data rates 1.485 / 2.97 / 5.94 / 11.88Gbps Video bandwidth [11.88Gpbs &... -
Page 7: Operation Controls And Functions
BZBGEAR BG-DA-12GS1X4 PRODUCT MANUAL Operation Controls and Functions Front Panel 1. 12G/6G/3G/HD/SD-SDI Output 3-4: Connect to an SDI display. 2. Micro-USB: For updating firmware. 3. 5V DC power jack: Connect to provided power supply. Rear Panel 4. 12G/6G/3G/HD/SD-SDI input: Connect to an SDI source. -
Page 8: Hardware Installation
1. Connect a camera or other device equipped with 12G/6G/3G/HD/SD-SDI outputs to BG-DA-12GS1X4 12G/6G/3G/HD/SD-SDI input. 2. Connect devices equipped with 12G/6G/3G/HD/SD-SDI inputs (e.g. monitors or video processors) to BG-DA-12GS1X4 12G/6G/3G/HD/SD-SDI outputs. 3. Plug power adapter cable into 5V DC power jack. Signal Measurement ·... -
Page 9: Application Example
BZBGEAR BG-DA-12GS1X4 PRODUCT MANUAL Application Example The following diagram illustrates the typical input and output connection of the splitter: · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 10: Tech Support
1.888.499.9906 support@bzbgear.com bzbgear.com Warranty BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year warranty is available for our cameras upon registration for a total of five years. For complete warranty information, please visit bzbgear.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 11: Mission Statement
AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. BZBGEAR delivers quality products designed with users in mind. · ·... -
Page 12: Copyright
PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
