Summary of Contents for Nortel Passport 1200

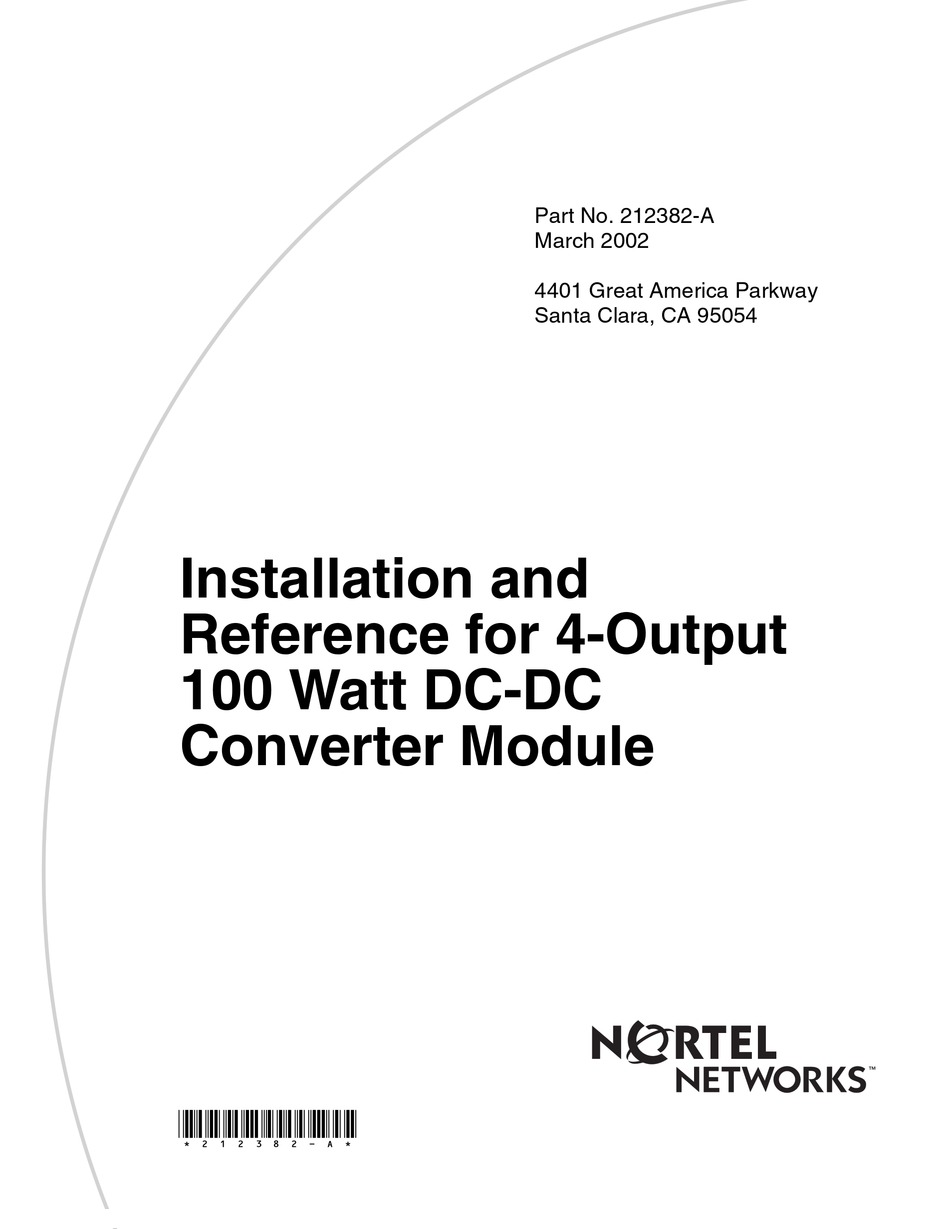

- Page 1 Installation and Reference for 4-Output 100 Watt DC-DC Converter Module *212382-A* Part No. 212382-A March 2002 4401 Great America Parkway Santa Clara, CA 95054...
- Page 2 Nortel Networks NA Inc. reserves the right to make changes to the products described in this document without notice. Nortel Networks NA Inc. does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
- Page 3 European Requirements Only EN 55 022 Statement This is to certify that the Nortel Networks 4-Output 100 Watt DC-DC Converter Module is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a.
- Page 4 Taiwan Requirements Bureau of Standards, Metrology and Inspection (BSMI) Statement Canada Requirements Only Canadian Department of Communications Radio Interference Regulations This digital apparatus 4-Output 100 Watt DC-DC Converter Module does not exceed the Class A limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.
- Page 5 Repair by anyone other than Nortel Networks or an approved agent will void this warranty. The maximum liability of Nortel Networks under this warranty is limited to the purchase price of the product covered by the warranty.
- Page 6 WARRANTIES, INCLUDING IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS ARE EXPRESSLY EXCLUDED. NORTEL NETWORKS SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE TO ANY PERSON FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES,...
- Page 7 “plug-and-play” redundant power supply unit that resides in the Nortel Networks* OPTera Metro 1200 Ethernet Service Module*, as well as other products available from Nortel Networks. Contact your Nortel Networks representative for information about what Nortel Networks products use the 4- Output 100 Watt DC-DC Converter Module.
-
Page 8: About This Guide
The converter module, in conjunction with the BayStack 10 Power Supply Unit (referred to as BayStack 10 PSU) and the 200 W AC/DC Power Supply Module (referred to as 200 watt RPS), receives DC input of -48 V and supplies DC power in the following four voltages: 1.5 V 2.5 V... - Page 9 Installing the converter module You must have a previously installed BayStack 10 PSU and 200 watt RPS to use the converter module. Nortel Networks recommends rack-mounting both the OPTera Metro 1200 Ethernet Service Module and the BayStack 10 PSU containing the 200 watt RPS.
- Page 10 Note: Prior to installing the converter module, make sure you are completely familiar with the requirements of the BayStack 10 PSU. Review Installation and Reference for the BayStack 10 Power Supply Unit thoroughly before beginning to install the converter module. Make certain you are properly grounded electrically.
- Page 11 d a n t P R e d u n b Set aside the blank plate and the screws. If you remove the converter module for any reason, be sure to re-insert the blank plate. Holding the converter module by the sides, slide the converter module into the OPTera Metro 1200 Ethernet Service Module using the guide rails.
- Page 12 .7 5 A 1 .5 A -0 Press firmly to make sure that the converter module is fully seated. Fasten the converter module screws to the switch using a screwdriver. Refer to “Connecting the cable” on page 13 power supply cord” on page 15 Replacing the converter module Make certain you are properly grounded electrically.
-
Page 13: Connecting The Cable
Gently pull the converter module from the switch by pulling on the two captive screws. If you are installing a new converter module, follow the instructions in If you are not installing an converter module, retrieve the blank plate that ships with the OPTera Metro 1200 Ethernet Service Module. - Page 14 You must connect the converter module to the 200 W AC/DC Power Supply Module that is already installed in the BayStack 10 PSU. For more information on the BayStack 10 PSU, refer to Installation and Reference for the BayStack 10 Power Supply Unit.
-
Page 15: Connecting The Power Supply Cord
Tighten the thumbscrews with your hands only; do not use any tools. Connecting the power supply cord If it is not already plugged in, plug the power cord into the back of the OPTera Metro 1200 Ethernet Service Module. 100-240V~ 47-63Hz 1.5A-0.75A o w e r... - Page 16 OPTera Metro 1200 Ethernet Service Module is lit green. The OPTera Metro 1200 Ethernet Service Module does not have a power on/off switch. When you connect the AC power cord to a suitable AC power outlet, the switch powers up immediately. Warning: Removal of the power cord is the only way to turn off power to this device.
- Page 17 Advertencia: La única forma de desconectar la alimentación de este dispositivo es desenchufar el cable de alimentación. El cable de alimentación siempre debe estar conectado en una ubicación que permita acceder al cable de forma rápida y segura en caso de emergencia. Avvertenza: Estrarre il cavo di alimentazione è...
-
Page 18: Technical Specifiations
Technical specifiations Physical: Dimensions: Weight: Environmental requirements: Operating temperature: Storage temperature: Operating relative humidity: Storage relative humidity: Operating altitude: Storage altitude: MTBF: Electrical requirements: Input voltage: Input current: Inrush current: Safety and compliance: (H) 1.65 in x (W) 6.0 in x (L) 4.5 in (H) 4.2 cm x (W) 15.24 cm x (L) 11.43 cm 1.5 lbs. -
Page 19: Related Publications
Related publications For more information about using the 4-Output 100 Watt DC-DC Converter Module, refer to the following publications: • Installation and Reference for the BayStack 10 Power Supply Unit (part number 208296-C) • BayStack 10 Power Supply Unit Installation Instructions (part number 208558-B) •... -
Page 20: How To Get Help
Internet at the www1.fatbrain.com/documentation/nortel/ Web address. How to get help If you purchased a service contract for your Nortel Networks product from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. - Page 21 If you purchased a Nortel Networks service program, contact one of the following Nortel Networks Technical Solutions Centers. Technical Solutions Center EMEA North America Asia Pacific China An Express Routing Code (ERC) is available for many Nortel Networks products and services. When you use an ERC, your call is routed to a technical support person who specializes in supporting that product or service.
