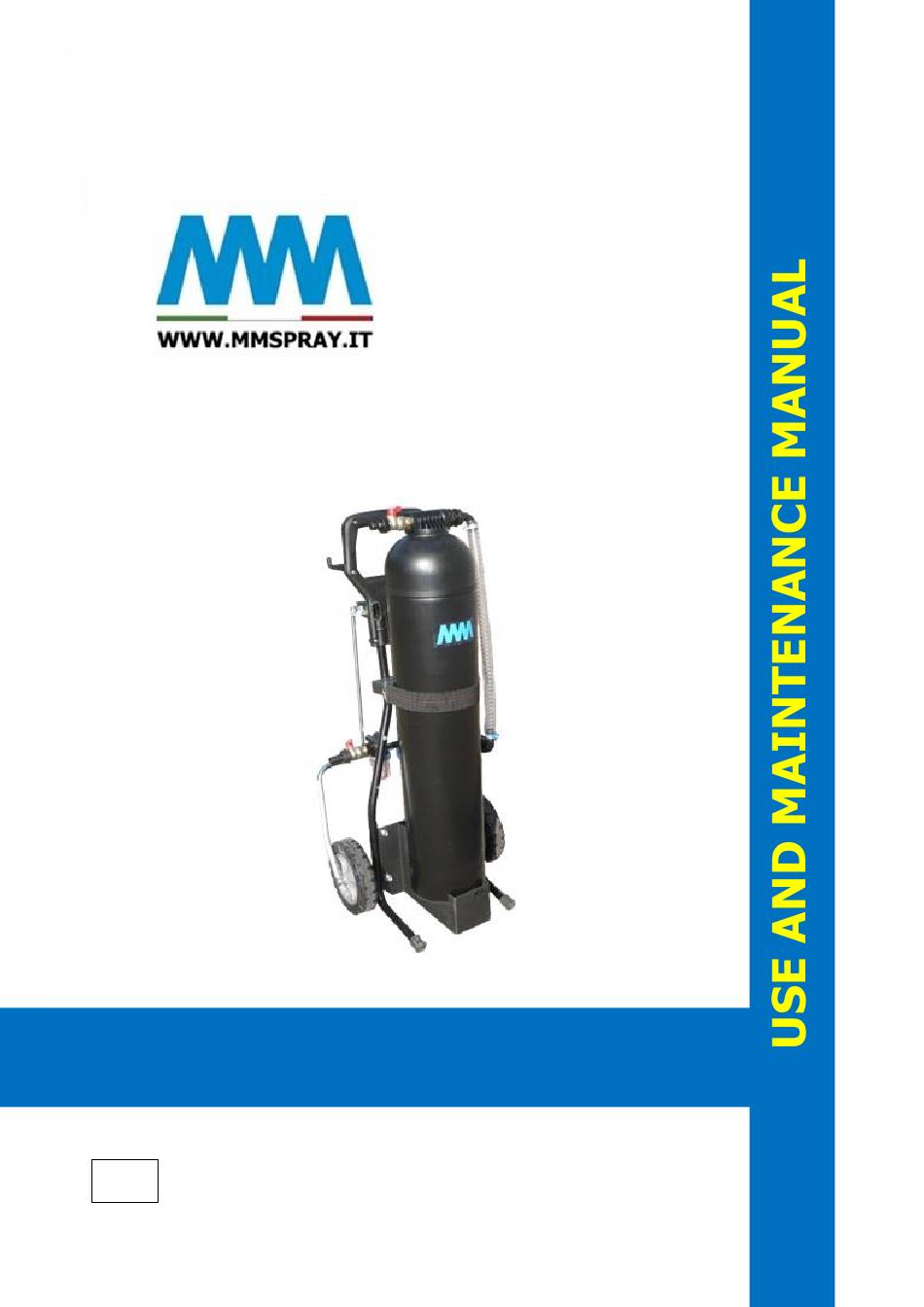

- Page 1 Filtering resin system FR25 IT Original instructions...
-
Page 3: Table Of Contents
Use and maintenance manual SUMMARY MEANING OF THE SYMBOLS ....................6 INTENDED USE ........................6 TECHNICAL CHARACTERISTICS ....................8 MACHINE CERTIFICATION ...................... 9 SAFETY REQUIREMENTS ....................... 10 WARNING: NOT TO DO ......................10 WARNING: TO DO ........................ 11 DELIVERY ..........................11 DISPOSAL OF PACKAGING .................... - Page 4 To this end, we invite you to read this manual carefully and to scrupulously comply with its contents. MANUFACTURER'S DATA M.M. Srl via Raimondo dalla Costa, 110 41122 Modena (MO) IT P.I. 02330550365 Tel. (+39) 059.25.16.54 Fax (+39) 059.25.17.11 Sito web: www.mmspray.it e-mail: mm@mmspray.it Filtering resin system...
- Page 5 Use and maintenance manual The technical data and illustrations contained in this booklet are not binding. M.M. srl therefore reserves the right to make technical and commercial changes without prior notice. Any reproduction, even partial, of this booklet is forbidden without the manufacturer's authorisation.
-
Page 6: Meaning Of The Symbols
Use and maintenance manual MEANING OF THE SYMBOLS DANGER Indicates the presence of a danger for those working on the machine and for those who are nearby, therefore the marked activity must be carried out in compliance with the safety regulations in force and the instructions given in this manual. - Page 7 Use and maintenance manual 1. Demineralised water outlet 2. Tap B 3. 3-way valve head 4. Bottle inlet coupling 5. Bottle 6. Bottle strap 7. Carrying trolley Fig. 1 8. Liter counter 9. Carbon filter 10. Line prefilter 11. Tap A 12.
-
Page 8: Technical Characteristics
Use and maintenance manual TECHNICAL CHARACTERISTICS Dimensions 47x48x110 cm Empty weight 40 Kg Inlet water working pressure Max 10 BAR Inlet water at 20°F filtered Max 4000 L Filtration capacity Up to 660 L/h Maximum water temperature (°C) Minimum water temperature (°C) Pure water quality (ppm) <... -
Page 9: Machine Certification
Use and maintenance manual MACHINE CERTIFICATION Directive 2006/42/EC specifies the minimum conditions under which a machine may be placed on the in the European Union market. This Directive requires that all machinery may be placed on the market and put into service only if it does not affects the safety and health of people, animals or property. -
Page 10: Safety Requirements
Use and maintenance manual SAFETY REQUIREMENTS WARNING: NOT TO DO Once the resins have been activated, do not let them dry out. Use by inexperienced people or who have not read and understood the instructions in this manual is prohibited. Do not use the device indoor. -
Page 11: Warning: To Do
Use and maintenance manual WARNING: TO DO High pressure can cause parts to bounce back, so you must WEAR protective clothing and goggles. DANGER OF INJURY RESPECT the regulations of the local water supply authority. According to DIN 1988, the appliance may only be connected directly to the public drinking water distribution network if a backflow preventer with drainage is installed in the supply hose. -
Page 12: Accessories Supplied
Use and maintenance manual ACCESSORIES SUPPLIED The equipment is supplied with the following accessories: TDS instrument Graduated jug APPLICABLE ACCESSORIES You can choose from a wide range of brushes, telescopic lances, pressure washers. FIXED BRUSH Double water supply - working width 40 cm - with fitting for telescopic lances BRUSH WITH 2 ROTATING NOZZLES Double nozzle - working width 32 cm - with fitting for telescopic lances DOUBLE ROTATING BRUSH WITH NYLON BRISTLES... -
Page 13: Principle Of Operation
Use and maintenance manual PRINCIPLE OF OPERATION The filtering resin system of this machine will remove 99% of total dissolved salts (TDS) from the supply water. If the supply water used contains 100 parts per million (ppm) of TDS, the water obtained from filtration will contain 1 ppm of TDS. -
Page 14: Machine Using Scheme
Use and maintenance manual MACHINE USING SCHEME WORKING CYCLE At the first use it is necessary to fill the bottle with water and wait about 15 minutes before the resins are activated. Once the resins have been activated, do not let them dry out. 1. -
Page 15: Cleaning Of Coated Or Painted Surfaces
Use and maintenance manual CLEANING OF COATED OR PAINTED SURFACES The use of pressurised water on glued parts may cause them to detach. Do not use the appliance on wooden floors or on parquet that is not well sealed. Pay attention to the cleaning of doors, parquet, surfaces painted or coated with synthetic products, aluminium panels. -
Page 16: Maintenance And Replacement Of Cylinders
Use and maintenance manual MAINTENANCE AND REPLACEMENT OF CYLINDERS It is not possible to predict precisely when to replace resins because each water source has a different chemical composition that affects the longevity of the resins in a different way. The only way to determine when to replace the resins is to continuously monitor the quality of the water produced. -
Page 17: Prolonged Non-Use Of The Machine
Use and maintenance manual PROLONGED NON-USE OF THE MACHINE If the equipment is not used for long periods, this is important. It is necessary to prevent the development of algae and bacteria due to stagnant water. STORAGE In case of storage of the machine, it must be placed in the warehouse in ventilated rooms, protected from dust. -
Page 18: Cleaning The Line Filter
Use and maintenance manual CLEANING THE LINE FILTER Clean the line filter (10 Fig. 2) every time the machine is used. Unscrew the transparent plastic external cover. Remove the stainless steel cartridge. Clean and wash thoroughly, removing all residues. Place the stainless steel cartridge inside the transparent cover and screw it. -
Page 19: Mounting Of The Carbon Filter
Use and maintenance manual MOUNTING OF THE CARBON FILTER Insert the filter into the transparent vessel, making sure that the sealing gaskets are correctly positioned under and above the filter. Insert the plastic ring nut and screw it. WASTE DISPOSAL The machine must not be disposed of as urban waste;... -
Page 20: Warranty Conditions
Use and maintenance manual WARRANTY CONDITIONS 1. The warranty is valid from the date of purchase. The manufacturer, through its sales and after sale network, will replace free of charge any defective parts in materials, processing or production. The warranty does not cover the replacement of the machine. The contractual warranty does not deprive the purchaser of the legal rights provided for by the civil code against the consequences of defects caused by the product sold. -
Page 21: Ec Declaration Of Conformity
Use and maintenance manual EC DECLARATION OF CONFORMITY It is hereby declared that: MODEL: filtering resin system TYPE: FR25 complies with the relevant provisions in force: 2006/42/EC Harmonised standards applied: UNI EN 1717:2002 M.M. s.r.l. THE MANUFACTURER: Via Raimondo Dalla Costa, 110... - Page 24 M.M. S.r.l. P.IVA/C.F. 02330550365 Via Raimondo Dalla Costa, 110 - 41122 Modena (Italia) Tel: +39 059 251654 Fax: +39 059 251711 e-mail: mm@mmspray.it sito: www.mmspray.it...
