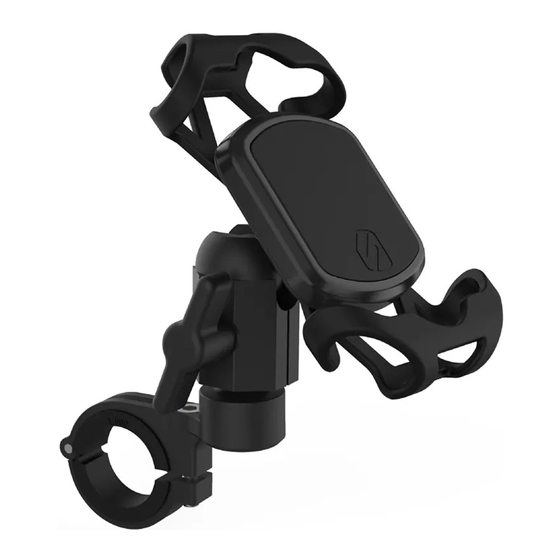

Scosche TerraClamp MAGICMOUNT Pro Handlebar PSM11011 Manual

MAGICMOUNT

PARTS INCLUDED

2. (1) *MAGICMOUNT"w/ Mounting Plates

3. (1) 1.5" Extension Bar

4. (2) Adjustment Knobs w/ Washers

5. (2) Mounting Adapters

6. (1) Handlebar Clamp

7. (3) Ring lnserts-

*Cautlon: This magnetic mount is not a toy.

The small magnetics are hannful if swallowed. Keep out of

reach of children.

WARNING: Do not use the magnetic mount with any

hard-drive based devices such as iPod classic, iPod

video and Zume MP3 players.

**Ring Inserts Sizes Included: .875", 1" & 1.125"

www.scosche.com/register

TerraClamp

™

Pro Handlebar

4---!ot--r�

PSM11011

Table of Contents

Do you have a question about the TerraClamp MAGICMOUNT Pro Handlebar PSM11011 and is the answer not in the manual?

Page 1 Register your product onllne at PSM11011 TerraClamp ™ MAGICMOUNT Pro Handlebar PARTS INCLUDED 1. (1) Elastic Band 2. (1) *MAGICMOUNT"w/ Mounting Plates 3. (1) 1.5" Extension Bar 4. (2) Adjustment Knobs w/ Washers 5. (2) Mounting Adapters 6. (1) Handlebar Clamp 7.
Page 2 ™ MAGICPLATE PLACEMENT OPTION 1 (small or large plate) Attach adhesive side of metal plate directly to back of device Forlypical Smartphones OPTION2 (small or large plate) Attach adhesive side of metal plate directly to back of case For Wireless Charging Qi-enabled DEVICE...
Page 3 ASSEMBLY Instructions Install MAGICMOUN"r ball into the elastic center ring and hook into place (A). Mount the magnetic assembly (B) and the bar extension (D) to the two adapters (C). Secure the assembly using the screw knob and washer provided (E). Place the clamp mounting joint in-between the two adapters (F) along with the bar extension (G).
Page 4 (F). Secure the clamp using the provided screw with an appropriate size alien key. For complete W■ITllnty details, pl-- visit us at -..coeclcom or call (BOO) 3113-4490 ©2018 SCOSCHE INDUSTRIES, INC. SI 300PSM11011 02/18...
