NOR-LAKE SCIENTIFIC
Division of Nor-Lake Incorporated
727 Second Street
P .O. Box 248
Hudson, Wisconsin 54016

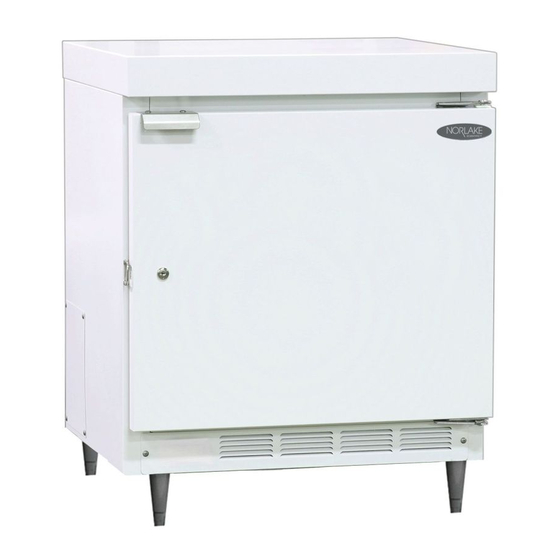

UNDERCOUNTER REFRIGERATORS

4°C Auto and Manual Defrost
For General Laboratory / Pharmacy Storage
Designed to meet the demanding requirements of scientific and laboratory
applications. Special cabinet incorporates industrial quality with a heavy
duty refrigeration system to maintain your valuable products.
SPECIFICATIONS FOR: NSLR051WMW/0 & NSLR051WMW/0M
• Exterior finish:
The exterior front, door, top and sides are white painted enamel. The back and bottom are galvanized
steel.
• Interior finish:
Interior liner and interior door panel are aluminum.
• Insulation:
The complete cabinet and door are foamed-in-place with high density polyurethane foam insulation.
• Hardware:
Pull door handle, door lock, one adjustable gray epoxy coated shelf & four 4" legs.
• Electrical:
115/60/1 cord and plug furnished.
• Refrigeration:
Base mount refrigeration system. Undercounter/countertop refrigerators may be built in on three
sides. The air intake and exhaust is through the base in front of the unit. Refrigerators are available
with a forced air evaporator (NSLR051WMW/0) or a wrap around cold wall evaporator
(NSLR051WMW/0M). Adjustable control range from +2°C to +8°C. Factory preset at +4°C.
• Approvals:
UL and C-UL listed.**

STANDARD FEATURES

• Air-cooled condensing unit
• High density polyurethane foam
insulation
• Aluminum interior
• Automatic defrost on
• Magnetic gasketing
forced air model-
• Non-CFC refrigerant
• Adjustable control range from +2°C
NSLR051WMW/0
• Manual defrost on cold wall
to +8°C. Factory preset at +4°C
model - NSLR051WMW/0M
• White enamel front, door, top &
sides
• 4" legs
• Door lock
• UL & C-UL LISTED**
• Warranties: 18 month parts and
• Expansion valve system on
labor. 5 years compressor (US
forced air model
and Canada) 18 months parts
• Galvanized back & bottom
(International)
• Gray epoxy coated shelf
** C-UL is Underwriters Laboratories Safety Certification Mark which indicates that UL has tested the equipment to applicable CSA Standards.
800-477-5253
715-386-2323
800-388-5253 Parts
715-386-4290 FAX
www.norlake.com
NSLR051WMW/0

OPTIONAL FEATURES

• Casters in lieu of legs
• 2" levelers in lieu of legs
• Hi/Lo alarm with remote contacts
(mounted separate)
• Stainless steel exterior (Galv. back)
• Stainless steel interior
• Temperature Chart Recorder
• Chart Paper
• Digital Thermometer with Hi/Lo Alarm
(Field Install)
SCIENTIFIC
NO LAKE
NO LAKE
®
®
®
Registered to ISO 9001:2000
Nor-Lake, Inc.
File No. A3204
SPECIFICATION
GUIDE
