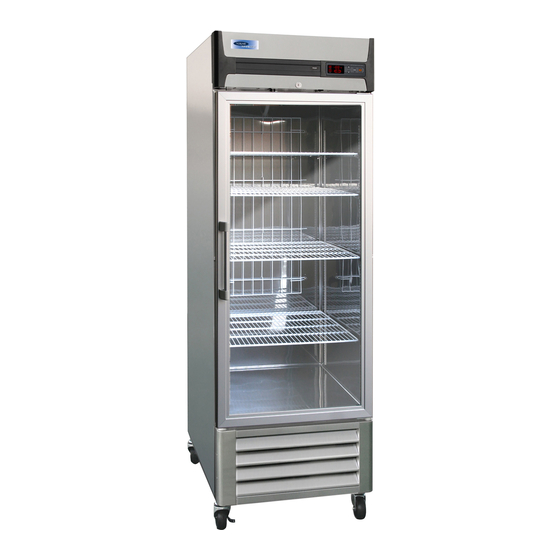

Norlake AdvantEDGE NLR23-G Installation, Operation And Maintenance Instructions

Norlake AdvantEDGE NLR23-G Installation, Operation And Maintenance Instructions

Bottom mount refrigerators & freezers

Advertisement

BOTTOM MOUNT
REFRIGERATORS & FREEZERS
Installation, Operation and Maintenance Instructions
INSPECTION
When the equipment is received, all items should be carefully checked against the Bill of
Lading to ensure all crates and cartons have been received. Do not sign the freight bill
clear until the freight has been properly inspected for damage. All units should be
inspected for damage including concealed damage by uncrating immediately. If any
damage is found, it should be reported to the carrier at once, noted on the Bill of Lading
and a claim should be filed with the carrier. This equipment has been inspected and tested
in the manufacturing facility and has been crated in accordance with transportation rules
and guidelines. The manufacturer is not responsible for freight loss or damages.
INSTALLATION
CAUTION: This unit uses a flammable refrigerant. Use care when handling and
operating to avoid damaging the refrigerant tubing or increasing the risk of a leak.
The unit has been secured to the shipping base with four bolts. Remove these bolts and
separate the unit from the shipping base. Locate the casters or legs found inside the unit.
Attach the casters or legs to the unit base by screwing them into the threaded fittings that
were used to secure the shipping base. Use the wrench provided to tighten the casters to
the unit. The casters with the brakes should be installed on the front of the unit. For proper
drainage of condensate, the unit should be level when placed in its permanent location.
Leveling shims are included in the accessories package in the cabinet. Loosen the casters
and insert shims between caster and bottom of the unit. Re-tighten the caster.
The exterior of the cabinet and doors have been protected by a plastic covering. Peel this
protective covering before installation. After removing the covering, clean the interior and
exterior surfaces of the unit with soap and water and a rinse with clean water. Do not use
chlorinated cleaners on the surfaces as they can cause corrosion.
If the door(s) have come out of alignment during shipping, they will need to be adjusted.
This can be accomplished by opening the door(s) and loosening the screws that hold both
the top and bottom hinges to the cabinet. After adjusting the door so it is aligned correct,
tighten the screws to securely hold the hinges and door(s) in place.
The shelves and shelf clips are packaged inside the unit. Install the shelf clips on the
pilasters inside the unit and set the shelves on the clips. The shelves are adjustable in
12.7mm (
inch) increments.
½
1
3/19 Rev.G 146527

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AdvantEDGE NLR23-G and is the answer not in the manual?

Questions and answers

Summary of Contents for Norlake AdvantEDGE NLR23-G

  • Page 1 BOTTOM MOUNT REFRIGERATORS & FREEZERS Installation, Operation and Maintenance Instructions INSPECTION When the equipment is received, all items should be carefully checked against the Bill of Lading to ensure all crates and cartons have been received. Do not sign the freight bill clear until the freight has been properly inspected for damage.
  • Page 2: Operation

    The refrigeration system located at the bottom of the unit requires free air access for proper operation. Allow a minimum of 180mm (7 inches) between the back of the cabinet and the wall. Do not locate the unit next to heat generating equipment or in direct sunlight. Confirm that the proposed electrical outlet has the correct voltage, frequency and current carrying capacity for the requirements of the unit.
  • Page 3: Maintenance

    MAINTENANCE All service should be performed by factory authorized personnel. All component parts will be replaced with like components to minimize the risk of possible ignition due to incorrect parts or improper service. Cleaning Beginning with the initial installation, the interior surfaces of the cabinet should be periodically cleaned with a solution of warm water and baking soda.
  • Page 4: Electronic Control

    ELECTRONIC CONTROL 1. ELECTRONIC CONTROLLER DISPLAY PANEL LAYOUT 3/19 Rev.G 146527...
  • Page 5: Electronic Control Settings

    Display Description Temperature Setting Mode Temperature Differential Setting Mode Cabinet Temperature Verification Mode Defrost Frequency Setting Mode Rapid Freeze Mode (Freezers Only) Forced Defrost Mode Temperature Unit Converter mode (℉↔℃) ※ In converting Temperature Unit (℉↔℃), 1℉ (1℃) deviation can occur. ELECTRONIC CONTROL SETTINGS Setting Temperature- The temperature set point is adjustable from -22℉(-30℃) to +8℉(-10℃) for the freezers...
  • Page 6 Rapid Freeze Mode (Freezers Only) When in rapid freeze mode the compressor will run continuously for 120 minutes and then return to normal operation and set points. To Start Rapid Freeze Mode; • Press ‘Mode/Set’ button. • Press ‘Up’ or ‘Down’ button until <tb> is displayed. •...
  • Page 7: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause Remedy Power connection failure Check power cord and plug it in Compressor will not start Power switch is in ‘off’ position Move it to ‘on’ position Temperature set point is too high Correct temperature set point The door is opened too frequently Loading of too much warm or moist product...
  • Page 8: Specifications

    SPECIFICATIONS PRODUCT Solid Full/Half Door Freezer Solid Full/Half Door Refrigerator MODEL F23-S F49-S F72-S R23-S R49-S R72-S 650 ℓ 1,385 ℓ 2,035 ℓ 650 ℓ 1,385 ℓ 2,035 ℓ Capacity (23 ft (49 ft (72 ft (23 ft (49 ft (72 ft 695 ㎜...
  • Page 9 SPECIFICATIONS PRODUCT Glass Door Refrigerator MODEL R23-G R49-G R72-G 650 ℓ 1,385 ℓ 2,035 ℓ Capacity (23 ft (49 ft (72 ft 695 ㎜ 1,400 ㎜ 1,980 ㎜ Exterior (27.4”) (55.2”) (78.0”) Dimensions (including 835 ㎜ (32.9”) Casters & Door Handles) 2,127 ㎜...
