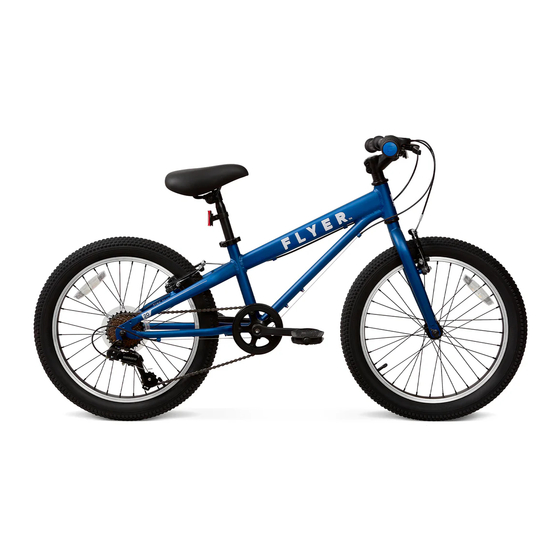

- Page 1 F LY E R 2 0 ” K I D S ’ B I K E O W N E R ’ S M A N U A L M O D E L S 8 4 0 B L , 8 4 0 R , 8 4 0 G Y , 8 4 0 T , 8 4 0 P P...
- Page 3 The Flyer™ line delivers a high-performance experience for riders of all ages, ranging from micromobility solutions for families to premium wheels for kids. As an extension of the Radio Flyer® brand, Flyer™ products are created with the same beautiful design and quality that has inspired our work for over a century.
-
Page 5: Table Of Contents
TA B L E O F C O N T E N T S Important Safety Instructions Getting Started Assembly Instructions Fastener Torque Values Accessories Adjusting Bike Riding & Safe Operating Guidelines Ride Safety Checklist Braking and Shifting Maintenance Warranty... - Page 6 Component Guide 11 12 1. Seat Post 12. Pedal 2. Rear Reflector 13. Saddle 3. Rear Brake 14. Stem 4. Cassette 15. Grips 5. Rims 16. Gear Shifter 6. Tires 17. Brake Levers 7. Rear Derailleur 18. Front Brake 8. Chain 19.
-
Page 7: Important Safety Instructions
Important Safety Instructions S A F E T Y W A R N I N G S WARNING! When using this product, basic precautions should always be followed including the following: • Read all safety warnings and instructions before using the product. Failure to follow warnings and instructions may result in serious injury or death. -
Page 8: Getting Started
Getting Started A S S E M B LY I N S T R U C T I O N S The following steps provide a general overview of the assembly process for your bike. It is recommended to consult a professional bicycle mechanic for assistance with the bike’s assembly, maintenance, and repair. - Page 9 Step 2: Install the handlebar A. Using the provided 6mm allen wrench, loosen the two bolts and remove the stem faceplate. Ensure to rotate the fork so that the stem is facing forwards as in the image below. B. Align and center the handlebar in the stem. Check that the handlebar orientation matches the image below and that the cables are not twisted.
- Page 11 Step 3: Install the front wheel The bike is shipped with a spacer installed in the fork dropouts to prevent damage during shipment. Prior to installing the front wheel, this spacer must be removed. Once removed, the spacer may be discarded. A.
- Page 13 Step 4: Install the saddle A. Deploy the kickstand to allow the bike to stand freely. B. Open the quick-release lever and insert the seat post into the seat tube. C. Position the seat post at an appropriate height for the rider. See page 19. D.
- Page 14 Step 5: Install pedals A. Identify the right and left pedals before assembling. The different pedals are specified with stickers on their surface, as well as an engraving on the end of the threaded portion of the pedal. The right pedal corresponds to where the rider’s right foot is during use.
- Page 15 RIGHT LEFT RIGHT LEFT RIGHT LEFT...
- Page 16 Step 6: Install the reflectors A. If necessary, use a Phillips head screwdriver to remove the screw from the mounting portion of each reflector. B. Mount the white reflector to the front of the handlebar. Insert and tighten down the mounting screw to secure the reflector. Ensure the reflector is facing directly forwards.
-
Page 18: Fastener Torque Values
A C C E S S O R I E S Radio Flyer carries a full line of accessories to enhance the usability of your Flyer™ kids’ bike. Please refer to the instruction sheets provided with each accessory to ensure proper assembly. -
Page 19: Adjusting Bike
Consult a trusted, reputable bike mechanic or contact Radio Flyer customer service for questions related to the seat position and fit of the bike. WARNING! The seat post must be inserted to the minimum insertion mark. Do not raise the seat post beyond the minimum insertion marking on the seat post tube. - Page 20 A D J U S T I N G H A N D L E B A R R O TAT I O N A L P O S I T I O N Following the initial assembly of the handlebar, the handlebar rotational position should be adjusted for the rider.
- Page 21 A D J U S T I N G R E A R D E R A I L L E U R A N D S H I F T E R If the shifting system of the bike is skipping gears during shifting or cannot shift into all 7 gears, you may need to adjust the rear derailleur.
- Page 22 A D J U S T I N G F R O N T A N D R E A R B R A K E S For safety and ideal performance, the front and rear brakes should be tuned before riding the bike.
-
Page 23: Riding & Safe Operating Guidelines
Riding & Safe Operating Guidelines It is the owner’s sole responsibility to ensure safe riding. Among other things: • Always have the rider obey road and traffic laws as applicable in your local area. • Always have the rider wear a helmet that meets the US CPSC standard. Wearing a helmet can prevent head injuries. - Page 24 • Ensure the seat is securely connected to the bike and the seat cannot be moved. Seat • Confirm the clamp adjustment lever is fully tightened and locked. • Verify the seat is properly adjusted to fit the rider’s height. •...
-
Page 25: Braking And Shifting
U S I N G F R O N T A N D R E A R B R A K E S The Flyer 20” Kids’ Bike is fitted with linear pull brakes on the front and rear wheels. To activate the front brake, squeeze the left brake lever. -
Page 26: Maintenance
Maintenance Always have a certified and reputable bike mechanic complete a tune-up on your bike after your first 50-100mi. Regular tune-ups and inspections are critical to ensuring your bike stays in safe condition. For more information on recommended maintenance intervals please visit: •... -
Page 27: Warranty
Warranty For information on your Flyer 20” Kids’ Bike’s warranty please visit:...
