TECHNICAL REFERENCE MANUAL

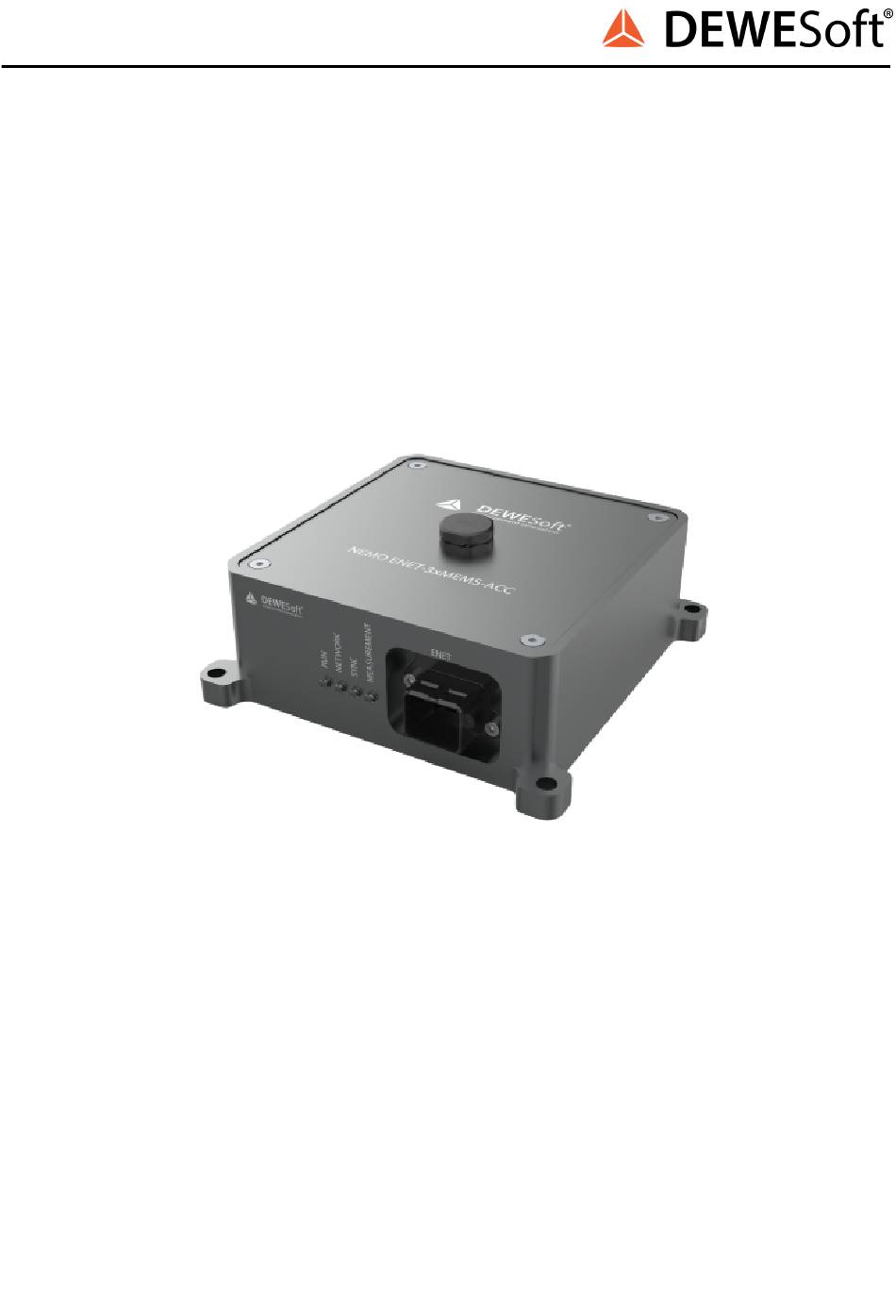

NEMOSENSE V23-1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEMOSENSE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DEWESOFT NEMOSENSE

  • Page 1 NEMOSENSE TECHNICAL REFERENCE MANUAL NEMOSENSE V23-1...
  • Page 2: Table Of Contents

    4. Specifications General device specifications: NEMOSENSE Measurement specifications: 3xMEMS-ACC Dimensional drawing: NEMOSENSE-3xMEMS-ACC About this document Legend Online versions Device Technical Reference Manual DEWESoft® User Manual (Not Yet Supported with NEMOSENSE) Warranty information Calibration Support Service/repair Restricted Rights Printing History Copyright...
  • Page 3: Introduction

    2. Operational principle NEMOSENSE is automatically powered up if the power is delivered to the device. On power-up, the following sequence occurs: Initialization phase - lasts only a few seconds 2.
  • Page 4: Getting Started With Nemosense

    3. Getting started with NEMOSENSE This chapter will help you to install the software, configure your NEMOSENSE device to send the data over TCP/IP to your or 3rd party server using the Dewesoft Historian software package. We will also show you how to access the data using Grafana.
  • Page 5: Configuration Mode

    *In case you don’t have the PoE Switch you can inject power by using so-called PoE Injectors. 48 V is needed. Make sure to set the IP address of your PC to the same subnet as the NEMOSENSE default configuration address (192.168.11.XXX), for example you can set your PC’s IP to: 192.168.11.94 (same subnet but different IP...
  • Page 6 NEMOSENSE TECHNICAL REFERENCE MANUAL Connecting NEMOSENSE to PC over the IOLITE-POWER-INJECTOR After running the NEMOSENSEConfigApp.exe file, the following screen will appear: NEMOSENSE V23-1 6/23...
  • Page 7 After the restart the Serial number and the Firmware version should be displayed meaning that the device is ready to be configured. To start the configuration and get the latest parameters, press the Get Conf button. After you’ve done that, the Set Conf and Go to measurement buttons will be enabled. NEMOSENSE V23-1 7/23...
  • Page 8 NEMOSENSE TECHNICAL REFERENCE MANUAL In the top left corner the static (hard coded) IP of the HTTP server running on the NEMOSENSE device is displayed. It can only be accessed during configuration mode: default configuration HTTP server IP: 192.168.11.95 ●...
  • Page 9 TECHNICAL REFERENCE MANUAL Note the following tabs in the config tool: Ethernet, DNS, FTP, NTP, FOTA server, MQTT and Measurement. Those tabs allow you to select the settings of the NEMOSENSE device which will apply when the device is in measurement mode.
  • Page 10 MQTT broker installed on the server. The functionality can be enabled or disabled in the NEMOSENSE config tool app. IP and Port of the MQTT broker need to be defined. The Measurement tab allows the selection of the supported Sample rate (S/s) options. When in measurement mode, the device continuously acquires the data from the sensor at the specified sample...
  • Page 11: Operational Mode (Measurement)

    TCP/IP device with the IP as defined in the Ethernet settings. This can be either a fixed IP or DHCP. Connection diagram of NEMOSENSE device in operational / measurement mode Communication block diagram of NEMOSENSE device in measurement mode connected to Dewesoft Historian When in measurement mode, the device continuously acquires the data from the sensor at the specified sample rate.
  • Page 12: Synchronization

    10 ms. This value depends mainly on the latency of the network. Meaning of LEDs There are four LEDs on the front panel of the NEMOSENSE device next to the RJ45 connector. RUN LED (orange) When on, it Indicates that the device is powered and running.
  • Page 13 If the SYNC led is ON permanently, this indicates an internal error. Device needs to be power-cycled and it is strongly suggested that the user contacts Dewesoft support. 4. MEASUREMENT LED (green) When on, it indicates that the device is measuring and storing the data to the SD card.
  • Page 14: Specifications

    NEMOSENSE TECHNICAL REFERENCE MANUAL 4. Specifications General device specifications: NEMOSENSE NEMOSENSE Physical interface Ethernet Connector RJ45 Harting push-pull Internal storage 16 GB memory Data file formats Data transfer protocols MQTT, FTP Device management protocols MQTT, HTTPS Synchronization Synchronization delay 10 ms (LAN)
  • Page 15: Measurement Specifications: 3Xmems-Acc

    Offset temperature drift (-20 .. 60 degC) -0.15 mg / degC +-0.02 mg / degC 0.15 mg / degC Sensitivity temperature drift (-20 .. 60 degC) +-0.01 % / degC Linearity error (smallest range) 0.1 % FS Crossaxis sensitivity NEMOSENSE V23-1 15/23...
  • Page 16: Dimensional Drawing: Nemosense-3Xmems-Acc

    NEMOSENSE TECHNICAL REFERENCE MANUAL Dimensional drawing: NEMOSENSE-3xMEMS-ACC NEMOSENSE V23-1 16/23...
  • Page 17: About This Document

    DEWESoft® and certain parts of the program. The latest version of the DEWESoft® tutorials can be found here: https://download.dewesoft.com/list/manuals-brochures/software-manuals In the Software Manuals section click the download link of the DEWESoft X User Manual entry. NEMOSENSE V23-1 17/23...
  • Page 18: Warranty Information

    Support Dewesoft has a team of people ready to assist you if you have any questions or any technical difficulties regarding the system. For any support please contact your local distributor first or Dewesoft directly. Dewesoft d.o.o.
  • Page 19: Printing History

    When used in text representing the company, product or technology name, the ® sign is not used. The Dewesoft triangle logo is a registered trademark but the ® sign is not used in the visual representation of the triangle logo.
  • Page 20: Environmental Considerations

    This symbol indicates that this system complies with the European Union’s requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). Please find further information about recycling on the Dewesoft web site www.dewesoft.com Restriction of Hazardous Substances This product has been classified as Monitoring and Control equipment and is outside the...
  • Page 21 REMOVE POWER and do not use the product until the safe operation can be verified by service-trained personnel. If necessary, return the product to Dewesoft sales and service office for service and repair to ensure that safety features are maintained.
  • Page 22 Devices and systems according to IEC 61508 or IEC 61511 which are considered as “operationally well-tried”, are excluded from the scope of IEC 61326-3-1. Fire-alarm and safety-alarm systems, intended for the protection of buildings, are excluded from the scope of IEC 61326-3-1. NEMOSENSE V23-1 22/23...
  • Page 23: Documentation Version History

    NEMOSENSE TECHNICAL REFERENCE MANUAL Documentation version history Version Date Notes V22-1 2022-06-07 Initial version V22-2 2022-08-29 Functional description, LEDs V23-1 2023-01-23 Quick start guide, diagrams NEMOSENSE V23-1 23/23...
