- Page 1 DTRONICS JUNO 106 Installation Manual JUNO 106 PSU INSTALLATION MANUAL...
-
Page 2: Table Of Contents
Intended use ..................4 What is included ................. 4 2 Installation ..................5 Step 1: ....................5 Step 2: ....................6 Step 3: ........... Error! Bookmark not defined. Step 4: ........... Error! Bookmark not defined. JUNO 106 PSU INSTALLATION MANUAL... -
Page 3: Document Revisions
DTRONICS Document revisions FW version Date Doc. revision Change 12-02-2023 R1.0 Initial document JUNO 106 PSU INSTALLATION MANUAL... -
Page 4: Setup

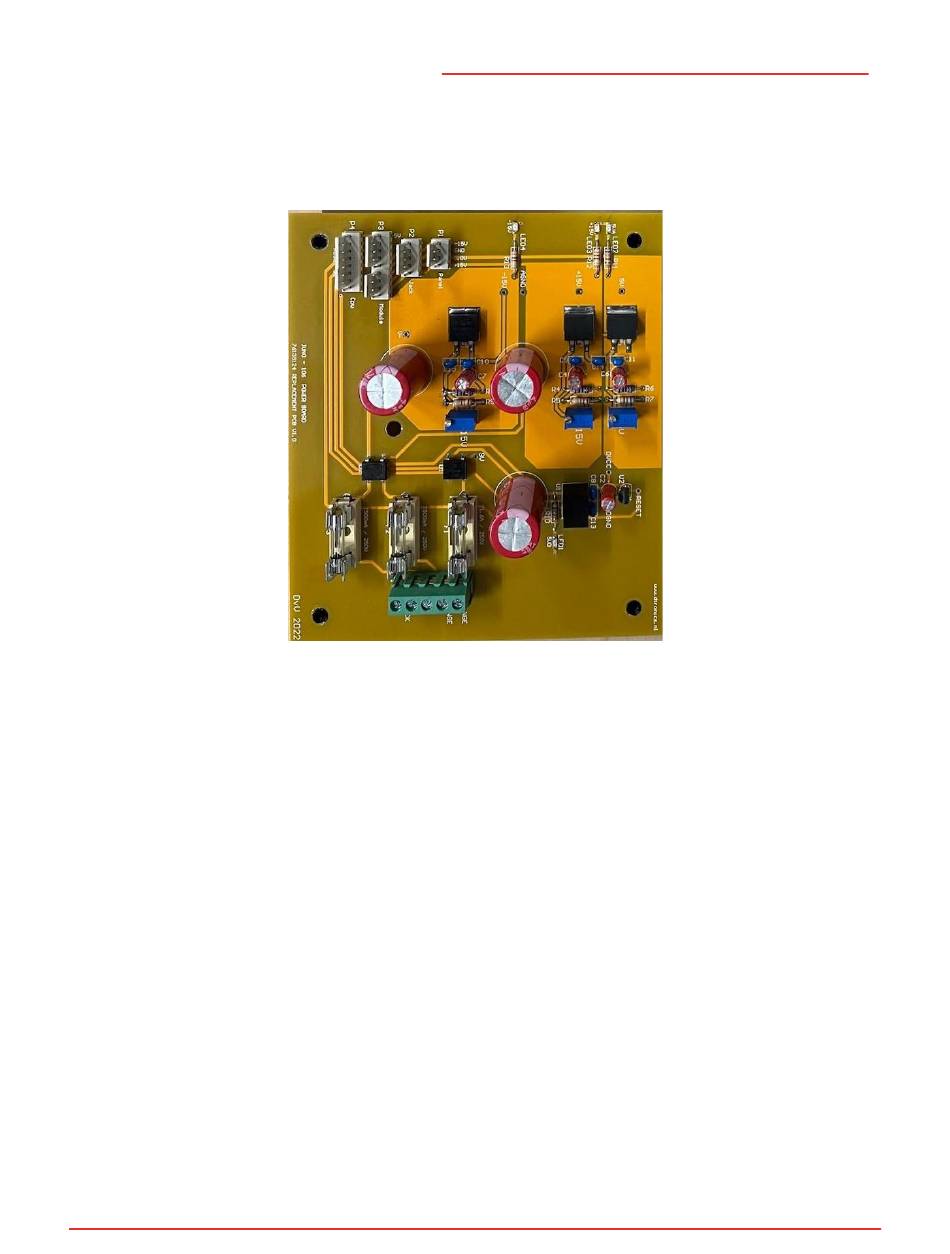

If you are not sure you are capable of doing this modification then please ask a trained technician. What is included Please ensure that your package includes the following: • JUNO 106 replacement PSU JUNO 106 PSU INSTALLATION MANUAL... -
Page 5: Installation
DTRONICS Installation • Be careful when working on mains equipment. Disconnect all cables before working on the JUNO 106. Step 1: - Disconnect the mains. - Open the juno 106 and locate the powerboard JUNO 106 PSU INSTALLATION MANUAL... - Page 6 DTRONICS Step 2: - Disconnect the white connectors JUNO 106 PSU INSTALLATION MANUAL...
- Page 7 DTRONICS Step 3: - Cut the 2 orange, 2 red and 1 black wire. - Remove the 5 screws that hold the pcb in place. And remove the pcb. JUNO 106 PSU INSTALLATION MANUAL...
- Page 8 - Install the new pcb in the same place, using the old screws. - Strip the orange/red and black wires and insert them in the green terminal block. - Make sure the wires are in the right position JUNO 106 PSU INSTALLATION MANUAL...
- Page 9 15V and AGND - These voltages can be adjusted if necessary. - Check the voltages with a voltmeter on the right side: DVCC (5 volt) - DGND Turn OFF the power, disconnect the mains. JUNO 106 PSU INSTALLATION MANUAL...
- Page 10 DTRONICS Step 6: Re-connect the white connectors: JUNO 106 PSU INSTALLATION MANUAL...
- Page 11 DTRONICS Step 7: When you power up your juno, it should look like this: Close your Juno 106 and enjoy. JUNO 106 PSU INSTALLATION MANUAL...
