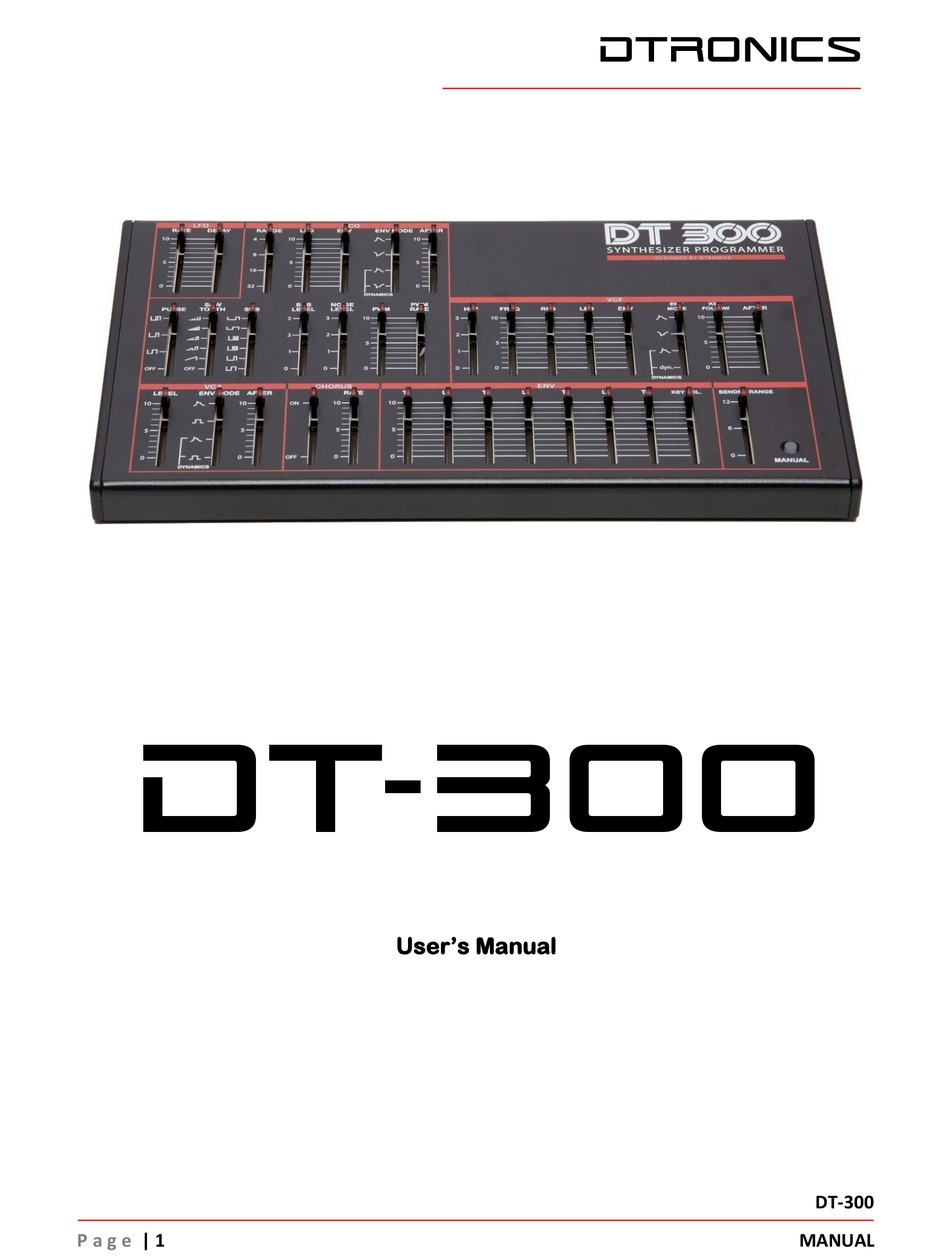

- Page 1 DTRONICS DT-300 User’s Manual DT-300 P a g e MANUAL...
-
Page 2: Table Of Contents
4 Operation ..................9 Power ................9 Starting up ..............9 Tone Edit ................. 9 Creating a new Tone Color ..........10 Change the settings ............11 Midi CC data ..............11 5 Specifications ................13 DT-300 P a g e MANUAL... -
Page 3: Document Revisions
Doc. FW version Change revision 20-05-2015 R1.0 V1.0 Initial document 07-08-2017 R1.1 V1.3 Removed sysex program mode 30-06-2021 R1.2 V1.3 Added new document style Added safety instructions Added extra connection information Added settings/cc information DT-300 P a g e MANUAL... - Page 4 Modification should be performed only by qualified personnel. Equipment from Dtronics marked with this symbol, alerts you to the presence of uninsulated dangerous voltage inside the enclosure. Equipment from Dtronics marked with this symbol alerts you to the presence of high voltage that may be sufficient to constitute a risk of shock and a life threatening situation.
- Page 5 The apparatus shall not be exposed to dripping or splashing liquids. Don’t place objects filled with liquids near / on the Dtronics equipment to avoid exposure to liquids Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Page 6 The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable DT-300 P a g e MANUAL...
-
Page 7: Legal Disclaimer
LEGAL DISCLAIMER TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. MERLET AUDIO, DTRONICS, SYNTHCITY, SKELETON CREW ARE PART OF THE ENGINEERS@WORK GROUP (ENGINEERSATWORK.NL). ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. ENGINEERS@WORK GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH... -
Page 8: Setup
DTRONICS Setup Intended use The DT-300 is intended to create new sounds for your synthesizer. The DT-300 is a programmer for the Alpha Juno 1, 2 and MKS-50 synthesizers. What is included Please ensure that your DT-800 includes the following: •... -
Page 9: Operation
DTRONICS Operation Power • When setting up the DT-300 with the JUNO, turn both of them off. • This unit might not work properly if turned on immediately after turned off. If this happens, simply turn it off and turn it on again a few seconds later. -
Page 10: Creating A New Tone Color
JUNO. Note: While editing a parameter with the DT-300, even if the current set positions of the knobs or switches are exactly what you desire, change the position once then return it. Otherwise, the parameter value might not be affected by the DT-300, thereby remain unchanged. -
Page 11: Change The Settings
Fader with 2 positions: 00,7F Fader with 4 positions: 00,41,6B,7F (SOME FADERS ARE REVERSED) Fader with 6 positions: 00,27,41,5A,73,7F Fader with 12 positions: 00,11,1C,26,31,3B,46,51,5B,66,70,7B It is not possible to change the CC number or values. DT-300 P a g e | 11 MANUAL... - Page 12 ENV L1 79 00-7F ENV T2 80 00-7F ENV L2 81 00-7F ENV T3 76 00-7F ENV L3 77 00-7F ENV T4 78 00-7F ENV KEY FOLLOW 82 00-7F BENDER RANGE 46 00,11,1C,26,31,3B,46,51,5B,66,70,7B DT-300 P a g e | 12 MANUAL...
-
Page 13: Specifications
DTRONICS Specifications [Programmer PG-300] Power consumption 100 mA (DC 9V , + on center pin) Weight 0,75 Kg (without the Adaptor) Dimensions ca. 280 (W) x 45(H) x 160(D)mm DT-300 P a g e | 13 MANUAL... - Page 14 DTRONICS DT-300 P a g e | 14 MANUAL...
