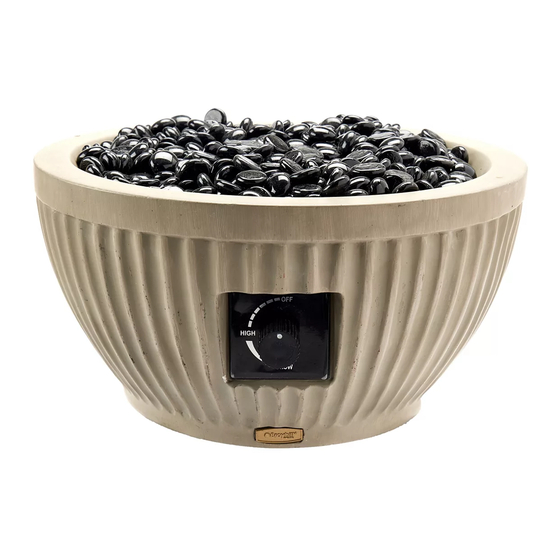

Tabletop gas firebowl
Hide thumbs
Table of Contents

Advertisement

Quick Links

DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
• Shut off gas to appliance.
• Extinguish any open flame.
• If odor continues, leave the area immediately.
• After leaving the area, call your gas supplier or fire
department.
Failure to follow these instructions could result in fire
or explosion, which could cause property damage,
personal injury, or death.
WARNING
FOR YOUR SAFETY:
Do not store or use gasoline, or other flammable vapors
and liquids, in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
WARNING
FOR OUTDOOR USE ONLY.
Installation and service must be performed by a qualified
installer, service agency or gas supplier.
INSTALLER: Leave this manual with the appliance.
W
CONSUMER: Retain this manual for future reference.
W
WARNING: If the information in this manual is not
W
followed exactly, a fire or explosion may result
causing property damage, personal injury, or loss
of life.
TABLETOP GAS FIREBOWL
Need help? We are here for you! 1-888.398.8643 24/7 • Toll Free
ASSEMBLY INSTRUCTION
ITEM#: GAT17002BL
SKU# 810582920
·
DANGER
• This appliance can produce carbon monoxide which has
no odor.
• Using it in an enclosed space can kill you.
• Never use this appliance in an enclosed space such as a
camper, tent, car or home.
CARBON MONOXIDE HAZARD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GAT17002BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Broyhill GAT17002BL

Summary of Contents for Broyhill GAT17002BL

  • Page 1 ASSEMBLY INSTRUCTION ITEM#: GAT17002BL SKU# 810582920 DANGER FIRE OR EXPLOSION HAZARD If you smell gas: • Shut off gas to appliance. • Extinguish any open flame. • If odor continues, leave the area immediately. • After leaving the area, call your gas supplier or fire department.
  • Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to being Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Number of the hardware corresponds to its letter in the package Helpful hints provided along the way WARNINGS: DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or...
  • Page 3 WARNINGS: LP gas tank needed to operate. Only tanks marked “propane” may be used. a. The LP gas cylinder must be constructed and marked in accordance with the U.S. Department of Transportation (D.O.T.) Specifications for LP-Gas Cylinders, or the Standard for Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods and Commission, CAN/CSA-B339 as applicable.
  • Page 4 WARNINGS: d. Do NOT use matches, lighters or a flame to check for leaks. e. The use of alcohol, prescription or non-prescription drugs may impair the consumer’s ability to properly assemble or safely operate the appliance. f. Strong odors, colds, sinus congestion, etc. may prevent the detection of propane. Use caution and common sense when testing for leaks.
  • Page 5 WARNINGS: Do NOT use in windy conditions. Never lean over this outdoor fire pit when lighting or when in use. Do NOT use this outdoor fire pit unless burner is securely in place. Keep all electrical cords away from this outdoor fire pit during use. Certain areas of this outdoor fire pit when in use will become too hot to touch.
  • Page 6 WARNINGS: The minimum inlet gas supply pressure for the purpose of input adjustment is 277 in.wc (69 kPa). The maximum inlet gas supply pressure is 6927 in.wc (1724 kPa). Before pressure testing, close LP gas tank valve and disconnect gas regulator. The gas supply piping system must test at pressures equal to or less than 1/2 psi (3.5 kPa).

  • Page 7: Exploded View

    EXPLODED VIEW HARDWARE LIST M4 X 10 mm Screw M6 X 55 mm Clip Bolt...

  • Page 8: Parts List

    PARTS LIST Fire Glass Body Burner Assembly Igniter Cover Control knob Thermocouple Wheel Lock Gas Bottle Holder Valve/Regulator Cover PREPARATION: Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 5 minutes Tools Required for Assembly (not included): Phillips Screwdriver, Work Gloves.
  • Page 9 PREPARATION: **Caution: Use only Mr. Bar-B-Q Products LLC factory-authorized fire glass. The use of any fire glass that is not factory-authorized can be dangerous and will void your warranty. **DO NOT RETURN TO PLACE OF PURCHASE. *For assistance, call 1.888.398.8643 toll-free. Please have your owner’s manual and model number available for reference.
  • Page 10 STEP 1 Assemble The Holder Use 2 (AA) attach the Attach M4 X 10 mm Screw the gas bottle clamp( I ) together with the frame. . BOTTOM Assembled View:...
  • Page 11 STEP 2 Assemble Holder Onto Regulator/Valve and Table 1. Mount the body into standard table umbrella hole; 2. Attach and screw the gas bottle holder into valve/regulator, where is to be attached onto table. BOTTOM Assembled View:...
  • Page 12 STEP 3 Connect Gas Bottle Into Regulator 1. 1. Before connecting, be sure there is no debris caught in the head of the LP gas tank, head of the regulator valve or in the head of the burner or burner ports.; 2.
  • Page 13 STEP 4 Screw Clip Bolt to Clamp Bottle Tightenly 1. Insert the clip bolt into gas bottle clamp; 2. Rotate clockwise to screw the clip bolt until the gas tank/ gas bottle is Clipped Tightly. BOTTOM Assembled View:...
  • Page 14 STEP 5 Place Fire Glass Into Burner CAUTION: Do NOT dump fire glass out of package. Carefully place fire glass by hand so dust does not clog burner. CAUTION: Use only Mr.Bar-B-Q Products LLC. factory-authorized fire glass. The use of any fire glass that is not factory-authorized can be dangerous and will void your warranty.
  • Page 15 STEP 6 Disconnect LP Gas Tank 1. Turn the control knob to the “ OFF” position. 2. Rotate counterclockwise to screw the clip bolt loosely. 3. Rotate LP gas tank counterclockwise until it is loose.Remove LP gas tank. 4. Place the protective cap cover. 5.
  • Page 16 STEP 7 Light Burner 1. Push and turn the control knob to (HIGH). 2. Use a long match to light the burner. 3. Turn control knob counterclockwise to adjust flame to desired height. 4. Specify a 5-minute complete shutoff period before the appliance is re-lighted. WARNING: Always perform a leak test before lighting this outdoor fire pit and each time the tank is connected for use.
  • Page 17 STEP 8 Turn Off and Extinguishing 1. Turn control knob to the “ OFF” position and allow fire to burn itself out. Note: A “poof” sound is normal as the last of the LP gas is burned. 2. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section. Assembled View: Caution: Do NOT use water to extinguish the fire.

  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE: 1. All cleaning and maintenance should be done when appliance is cool and with the fuel supply removed. 2. This outdoor fire pit should be inspected on a regular basis to ensure product safety and longer product life. 3.

  • Page 19: Warranty

    WARRANTY: We warrant to the original retail purchaser of this product, and to no other person, that if this product is assembled, maintained, and operated in accordance with the printed instructions accompanying it,then for a period of one (1) year from the date of purchase, all parts in such product shall be free from defects in material and workmanship. We may require reasonable proof of your date of purchase.
