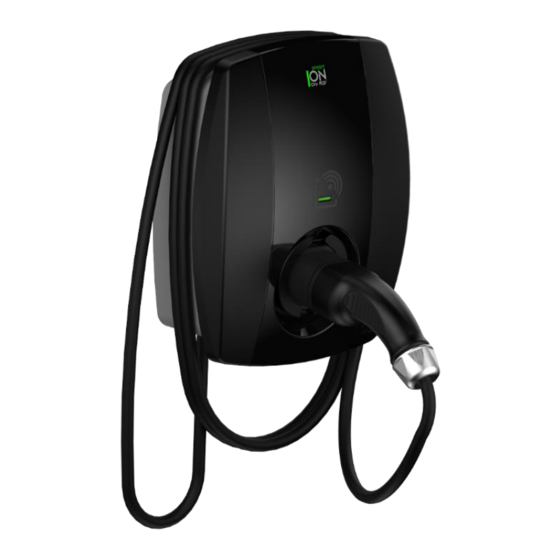

CRAIG & DERRICOTT SMART ION CHARGE EV03221000 Installation & Maintenance
Electric vehicle charger
Hide thumbs
Also See for SMART ION CHARGE EV03221000:
- Installation & maintenance (19 pages) ,
- Installation & maintenance (23 pages)
Table of Contents
Advertisement
Quick Links
INSTALLATION & MAINTENANCE
FOR SMART ION CHARGE ELECTRIC VEHICLE CHARGER
MODELS NUMBERS - EV03221000 & EV03221010
Please Read in Full Before Installing
Craig & Derricott Ltd
46 Hall Lane I Walsall Wood I Walsall I West
Midlands I WS9 9DP I United Kingdom
Tel: +44(0) 1543 375 541
Fax: +44(0) 1543 361 619
Email: sales@craigandderricott.com
EVC0047 – Issue 2
Advertisement
Table of Contents
Related Manuals for CRAIG & DERRICOTT SMART ION CHARGE EV03221000
Summary of Contents for CRAIG & DERRICOTT SMART ION CHARGE EV03221000
- Page 1 INSTALLATION & MAINTENANCE FOR SMART ION CHARGE ELECTRIC VEHICLE CHARGER MODELS NUMBERS - EV03221000 & EV03221010 Please Read in Full Before Installing Craig & Derricott Ltd 46 Hall Lane I Walsall Wood I Walsall I West Midlands I WS9 9DP I United Kingdom Tel: +44(0) 1543 375 541 Fax: +44(0) 1543 361 619 Email: sales@craigandderricott.com...
-
Page 2: Table Of Contents
..Reducing our carbon footprint Table of Contents Page No. IMPORTANT SAFETY INFORMATION ..........................3 INSTRUCTIONS ................................3 CAUTIONS ..................................3 PRODUCT OVERVIEW ................................ 4 ION EV CHARGER EXTERNAL COMPONENTS – SOCKETED VERSION ................5 ION EV CHARGER INTERNAL COMPONENTS – SOCKETED VERSION ................5 ION EV CHARGER EXTERNAL COMPONENTS –... -
Page 3: Important Safety Information
..Reducing our carbon footprint IMPORTANT SAFETY INFORMATION Read all instructions before Installing and using this product. Store in a safe place for reference. INSTRUCTIONS Warning: Do not install or use the EV charger near flammable, explosive, harsh, or combustible materials, chemicals, or vapours. -
Page 4: Product Overview
..Reducing our carbon footprint PRODUCT OVERVIEW PRODUCT SPECIFICATION – EV CHARGER Power supply input Nominal 230V AC single-phase AC output current Mode 3 Fast Charge 7.4kW Mains Cable Terminals 10mm Car Cable Charger Connection UK type 2 Frequency 50/60 Hz Tethered Cable Length 5 metres Product Size (mm) -
Page 5: Ion Ev Charger External Components - Socketed Version
..Reducing our carbon footprint ION EV CHARGER EXTERNAL COMPONENTS – SOCKETED VERSION ION EV CHARGER INTERNAL COMPONENTS – SOCKETED VERSION Supplied with: • 1 x Gateway Hub with Accessories (Boxed) • 1 x User Key Fob (Pre-paired) Craig & Derricott Limited 46 Hall Lane, Walsall Wood, Walsall, West Midlands, WS9 9DP (UK) 5 | P a g e t: +44(0) 1543 375541 | f: +44(0) 1543 361619 | e: sales@craigandderricott.com... -
Page 6: Ion Ev Charger External Components - Tethered Version
..Reducing our carbon footprint ION EV CHARGER EXTERNAL COMPONENTS – TETHERED VERSION ION EV CHARGER INTERNAL COMPONENTS – TETHERED VERSION Supplied with: • 1 x Gateway Hub with Accessories (Boxed) • 1 x User Key Fob (Pre-paired) • 1 x 5m Type 2 EV Cable & Plug Craig &... -
Page 7: Installation
..Reducing our carbon footprint INSTALLATION CHOOSING A LOCATION Install the EV Charger in a location that allows the charging cable to reach the vehicle charge port without putting strain on the cable. Tethered cable length is 5m, therefore, a recommended distance would be no greater than 3m from the car charging point. -
Page 8: Step 2: Fixing Ev Charger To Wall Bracket
..Reducing our carbon footprint STEP 2: FIXING EV CHARGER TO WALL BRACKET Fix EV charger to wall bracket with the 4 off fixing screws (M5 x 16) supplied. Access through LH & RH Terminal Cover apertures. STEP 3: MAINS CABLE CONNECTION The EV charger is supplied with a Mains M25 Nylon cable gland. -
Page 9: Step 4: Tethered Cable Connection
..Reducing our carbon footprint STEP 4: TETHERED CABLE CONNECTION If you have purchased the EV03221010 (Tethered EV Charger) the cable must be fitted as follows: 1. Mains cable connection, as per Step 3. 2. Insert cable through LH entry cable gland and tighten glanding nut. 3. -
Page 10: Step 5: Cover Fitting
..Reducing our carbon footprint STEP 5: COVER FITTING Illustration below for cover fitting Craig & Derricott Limited 46 Hall Lane, Walsall Wood, Walsall, West Midlands, WS9 9DP (UK) 10 | P a g e t: +44(0) 1543 375541 | f: +44(0) 1543 361619 | e: sales@craigandderricott.com www.craigandderricott.com... -
Page 11: Gateway Hub User Instructions
..Reducing our carbon footprint GATEWAY HUB USER INSTRUCTIONS GATEWAY SETUP (Ethernet) (Important order of sequence) Connect the Ethernet cable to the Hub. Connect the power cable to the Hub, plug it into the wall socket and switch on. Hub will automatically power on and connect to the Charge point. -
Page 12: App Installation
..Reducing our carbon footprint APP INSTALLATION 1. Scan the QR code to download the Ion Charge Smart app and create a free account. The app is available on App store and Google Play. 2. Follow instructions, in app, to complete installation. Note: When prompted to Add Charger, tap to the button to activate the camera and scan the QR code located on the underside of the Gateway Hub. -
Page 13: Charge Point Led Indication
..Reducing our carbon footprint CHARGE POINT LED INDICATION Dim blue Car not plugged in Bright blue Car plugged in, not requesting charge Pulsing blue Car plugged in, requesting charge Bright green Car charging (Including start from boost mode) Bright red Car error Flashing red Diode error... -
Page 14: Gateway Led Indication
..Reducing our carbon footprint GATEWAY LED INDICATION Internet LED (Rightmost) - Indicates connection status Network has rejected connection following attempt to connect to internet router Green Network and internet connected Amber Searching for network / No connection found Blue Network detected, connecting to internet Flashing other colour + Purple Web page open for local hosting settings page Flashing other colour + white... -
Page 15: Boost Button Function
..Reducing our carbon footprint OFFLINE BEHAVIOUR Internet connection lost ▪ Internet LED on gateway will turn RED and then AMBER ▪ Charge point LED will flash RED when cable is inserted into charge point or vehicle requests a change of state, such as, when charging commences to indicate charge point is operating without a connection to the internet ▪... -
Page 16: Maintenance
..Reducing our carbon footprint MAINTENANCE General maintenance Should the product be installed in a space that is accessible to the general public, observe local and national requirements (e.g. BS 7671) in addition to all other safety information contained within this manual. Cleaning Should the product require cleaning for cosmetic purposes, use a damp cloth with an all-purpose household cleaner.
