Summary of Contents for CoComm F720

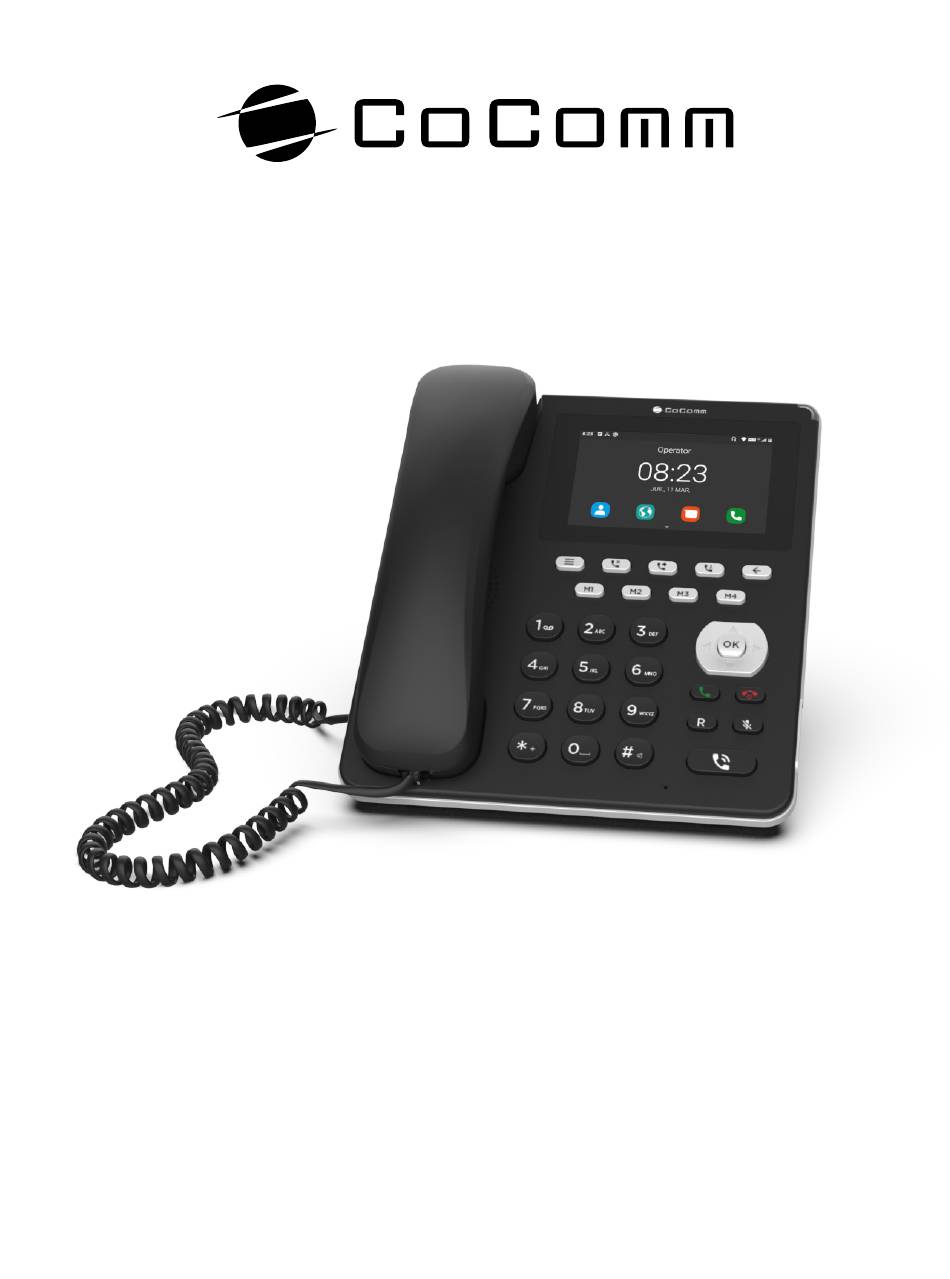

Page 1 F720 User manual...
Page 2 Index Introduction �� Sales package contents �� Overview �� Installation �� Keyboard �� Numeric keypad �� Display �� System icons �� Applications menu �� Settings �� Calls �� Messages �� Contacts �� Bluetooth connection �� ® Wi-Fi connection �� Troubleshooting ��...
Page 3 F720 User manual * Read carefully the instructions contained in this operation manual before you start using the device...
Page 4: Security Instructions
Introduction Thank you for choosing COCOMM F720 device. This phone is designed for being used with GSM 900/1800, UMTS 900/2100 MHz, LTE FDD B1/2100MHz, B3/1800MHz, B7/2600MHz, B8/900 MHz, B20/800MHz and LTE TDD B38/2600MHz networks and for operation requires a valid SIM card from your network operator. Please consult your network operator for more information.
Page 5: Sales Package Contents
Please check the sales package includes following components. If any items are missing, please contact your dealer. Precauciones de uso, normativa y garantía PQRS WXYZ F720 Guí rápida F720 terminal Quick guide Guarantee card AC/DC power adapter Li-Po rechargeable USB data cable battery Security screw, key and...
Page 6: Precautions For Use
Precautions for use Operating Environment Your COCOMM F720 phone is a RF transmitter, so please turn off your terminal or disable radio functions within following situations: ● ● W hen you are in an airplane. ● ● ● W hen you are in the vicinity of flammable atmospheres and is indicated by the entity responsible for risk management.
Page 7: Emergency Calls
Precautions for use ● Turn down the volume or stop using the product if your ears are ringing. ● ● Do not raise the volume too much, doctors warn against the prolonged exposition to high volume. ● ● Excessive acoustic pressure from headphones can cause hearing loss. ●...
Page 8: Care And Maintenance
Precautions for use Care and maintenance ● Listening to a music player at a very high volume can damage the user’s hearing and cause hearing problems (temporary or permanent deafness, ringing in the ears, tinnitus, hyperacusis). Therefore, it is strongly recommended that you do not use the player at full volume or for more than one hour a day at medium volume.
Page 9 Precautions for use Measures that affect the safety of users ● Do not use the mobile phone in certain situations (while driving) and certain places (airplanes, hospitals, schools, gas stations and professional workshops). ● For mobile phones, remember the prohibition of using the phone manually by the driver of a moving vehicle.
Page 10: Battery Use
Precautions for use Battery use ● Never use any charger or battery if damaged. Use the battery correctly. Do not short- circuit the battery, as this may damage the battery or cause a fire. ● Do not subject the battery to high temperatures or fire as it may explode. ●...
Page 11 Overview PQRS WXYZ 11. Direction, confirmation, and volume Base Handset buttons Touch screen End call key / Power on and off Notification LEDs Silent mode key Hold key Call key Transfer key Redial key Conference key Hands-free key Menu 17. Microphone Back Pound key Speed dial keys...
Page 12 Overview 20. Alphanumeric keyboard 21. Micro-USB data input port 22. Headphone/hands-free jack plug 23. Headset RJ9 plug 24. Security cable slot 25. Slots for the base in a low position 26. Slots for the base in a high position 27. Rechargeable battery compartment 28.
Page 13: Installation
Installation Follow the steps below to install your SIM card and accessories for your COCOMM F720 desk phone: 1. Disconnect the power adapter and remove the battery compartment cover at the bottom of the device to install the SIM card and Micro-SD. To install the SIM card, slide it under the metal tab.
Page 14 Installation 3. Insert the battery into its compartment and then insert the connector. Put the battery compartment cover again, ensuring it is securely in place. 4. Plug the curled handset cord into the back of the phone. Plug one end of the cable into the connector on the back of the phone.
Page 15: Battery Charge
Installation 6. Connect the power supply cord to the connector on the back of the phone, and then plug the power supply into a home AC outlet. The battery level will be indicated on the screen while the battery charging process is completed. Battery charge When the battery level is low, a warning tone will ring and a low battery message, and the battery icon will be displayed in red.
Page 16 Installation 7. Place the base in the back; insert the tabs into the holes, and then move it up. The base has two use positions. Position (1) provided you a more inclined view, and position (2) provided a more vertical view. Note: Always ensure your device is switched off before removing your SIM card.
Page 17 Keyboard Function On / Off When the terminal is off, press for 3 seconds to turn on the tablet. When the terminal is on, press for 3 seconds to turn off the phone. Up / down Move the cursor up / down. In the initial screen, increase and decrease volume.
Page 18 Keyboard Function Pound key Press to enter the pound symbol. Memory Programmable keys to memorize up to four telephone numbers. keys Hold key During an active call, press to put the current call on hold. During two active calls, press to switch between calls 1 and 2. Transfer key When you have two calls, one active and one on hold, press to make a call transfer between both calls, you can make a “No...
Page 19: Numeric Keypad
Numeric keypad Check the below table when using alphanumeric keypad. When introducing some form of text on your phone, you can switch between entering numbers (123), lower case (abc) or uppercase (ABC) by pressing the # key. Lowercase (abc) Uppercase (ABC) .
Page 20 Display Press the key [ ] for 3 seconds to turn on the terminal. The first time a SIM card is inserted, the terminal will request the PIN code. Then, the following user interface will be displayed on the screen. 2G/3G/4G coverage indicator Status indicators;...
Page 21 Display To turn off, press and hold the pick-up key for 3 seconds, and you will access the following menu, then click on the option to turn off.
Page 22: System Icons
System icons The following illustration explains the meaning of some of the system icons that can be displayed on your terminal: Signal level Notifications Data network connection Status information No signal No SIM card Message received Low battery Calls Battery in charge Call end Microphone off Call Forwarding...
Page 23: Applications Menu
Applications menu Once you turn on the device and complete the setup process, the main menu will be displayed on the screen. Press the left selection key to access the application menu, and the following user interface will be displayed on the screen. 13.
Page 24 Applications menu Under the apps menu, use direction keys to select one of the icons, and press to access the application. Settings Select the app menu icon ,and press to enter the system settings menu. Use direction keys to select settings for screen, sound, language, Bluetooth, etc., and press to access settings.
Page 25: Voice Recorder
Applications menu Calendar Select the icon from the app menu to open the app. You can navigate using the keys or using the touch screen. You can add a new reminder by pressing the icon or access the options by pressing it . Browser Select the icon from the app menu to open the browser.
Page 26 Applications menu SIM Tools Select the icon from the app menu to open the app. Here, you can manage services related to SIM cards. Please note that not all operators have this service active. Check with your operator. Messages Select the app menu icon , and press to access the phone’s messaging app.
Page 27 Applications menu Select the icon from the app menu to open the app. Set up a list of emergency numbers and a message to be sent to those numbers. Once configured, you can quickly call them by pressing the “0” key. Phone Select the app menu icon , and press...
Page 28 Settings NETWORK AND INTERNET Wi-Fi Mobile network Airplane mode Call settings Wi-Fi hotspot/Share Data saver Private DNS CONNECTED DEVICES Pair new device Connection preferences APPS AND NOTIFICATIONS Notifications Default Applications Permission Manager Special app access BATTERY...
Page 29 Settings SCHEDULED POWER ON & OFF SOUND Volume Ringtone Sound for notifications STORAGE PRIVACY SEGURIDAD Bloqueo de pantalla Aplicaciones de administración del dispositivo Bloqueo tarjeta SIM Cifrado y credenciales PRIVACIDAD SECURITY Language and text input Date and time Recovery options DEVICE INFORMATION...
Page 30 Calls Existen varios procedimientos para realizar llamadas con su terminal COCOMM F720: Make a call using the alphanumeric keyboard 1. In standby mode, pick up the handset, enter the phone number using the physical alphanumeric keyboard, or use the keyboard displayed on the screen and press the key to make the call.
Page 31: Volume Adjustment
Calls Volume adjustment During an active call, press the keys to increase or decrease the volume. Make a call from the call log 1. In standby mode, press the icon or directly press the key to access the call log. The last call will be displayed on the screen. 2.
Page 32: Make A Call Using Speed Dial
Calling Make a call of three 1. During an incoming call, pick up the handset or press the key or icon answer the call. 2. Tap the icon and enter a new phone number or select it from your contacts or history.
Page 33: Create And Send Messages
Messages The COCOMM F720 terminal supports SMS text messages and MMS multimedia messages. This section explains how to send and receive messages and other associated features. Create and send messages 1. Access the app menu, select the icon or navigate to it using the keys and press 2.
Page 34: Message Settings
Messages Empty the inbox 1. Access the app menu, select the icon or navigate to it using the keys and press 2. Long press on the conversation icon until it changes to 3. Press the icon and the delete option. Message settings 1.
Page 35 Messages ● SMSC Message Center: Set up the SMSC. Changing this option may cause ● your SMS to stop working. Please check with your operator. ● SIM capacity: This option shows you the space available to store messages ● on the SIM card. ●...
Page 36: Share Contacts
Contacts This section explains how to create and manage your contact list. Creating a new contact from the phone app 1. In standby mode, use the alphanumeric keyboard to enter the new contact number. 2. In the left menu, press new contact. 3.
Page 37: Editing Contacts
Contacts Editing contacts 1. Access the app menu and press the icon to access the application. 2. Tap on the contact you want to edit to access it. 3. Click the icon and edit. 4. Fill in the form with the data you want to enter for the new contact, and press the icon then save.
Page 38: Bluetooth Connection
Bluetooth connection ® The Bluetooth● function allows you to pair your terminal with other Bluetooth devices, ® and perform different functions: ● ● Connect Bluetooth ● accessories like a paired Bluetooth ● headset to answer calls ® ® received on the terminal. ●...
Page 39: Connect To A Wi-Fi Network
Wi-Fi connection The Wi-Fi function allows you to connect your device to wireless networks. Connect to a Wi-Fi network 1. Press the icon inside the app menu. 2. Press the option mobile networks and internet. 3. Press the Wi-Fi option. 4.
Page 40: Troubleshooting
Troubleshooting Phone can not be turned on ● Be sure to hold down the button for more than 5 seconds. ● Make sure battery is properly connected to your phone. ● ● ● R emove the battery, reinstall it and restart your phone. ●...
Page 41: Network Failure
Troubleshooting Network failure ● It is possible that the phone is located in a weak signal area, move to a place with a stronger signal. It is out of network service coverage ● SIM card is not valid, contact your network provider. You have entered a number but the phone is not calling ●...
Page 42 Troubleshooting Your correspondent can not hear you ● Increase handset volume. ● ● ● C heck that handset cable is securely connected to the phone. Battery duration in standby mode is too short ● Battery standby duration is related to network configuration. You may be in a weak signal area.
Page 43 You can obtain a copy of the declaration of conformity with the directive mentioned by sending an email to clientes@cocomm.es, adding the word DoC in the Subject line, and specifying the lot number of the product in the body of the message.
Page 44: Sar Certification Information
Regulation SAR certification information This mobile device meets guidelines for exposure to radio waves. It is a radio transmitter and receiver low power. It is designed not to exceed the limits for exposure to radio waves as recommended by international guidelines. These guidelines were established by the International Commission on Non-Ionizing Radiation (ICNIRP), which is an independent scientific organization, and include safety measures designed to ensure the protection of persons, regardless of age or health...
Page 45 Regulation This product complied with Directives 2012/19/EU (WEEE Directive) and 2011/65/EU (RoHS2 Directive) and Regulation (EC) Nº1907/2006 (REACH), and bears selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.
