Summary of Contents for CoComm DT200

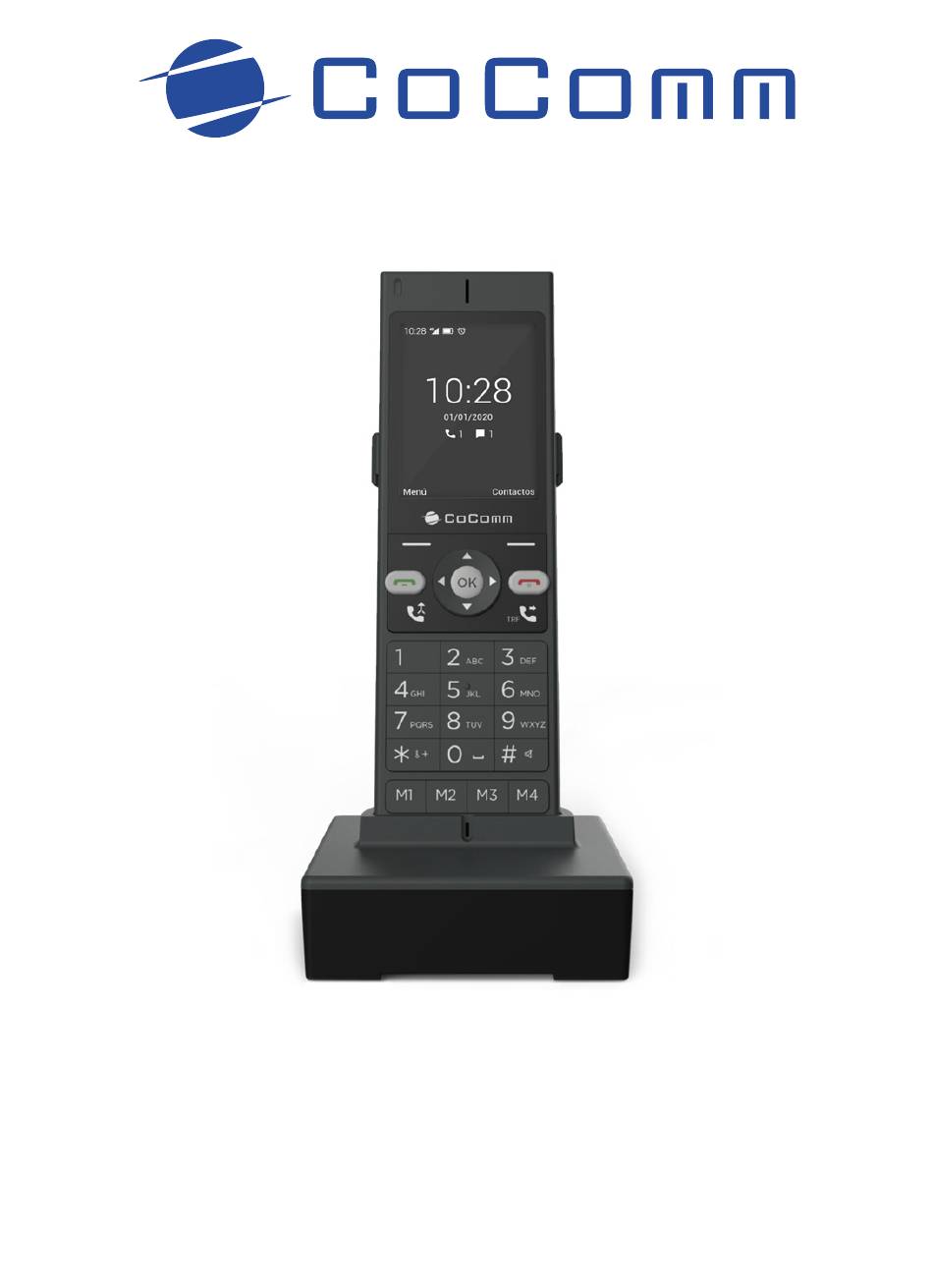

Page 1 DT200 User manual...
Page 2 Index Introduction �� Sales package contents �� Precautions for use �� Overview �� Installation �� Keyboard �� Numeric keypad �� Display �� System icons �� Applications menu �� Settings �� Calling�� Messages ��...
Page 3 DT200 User manual * Read carefully the instructions contained in this user manual before starting to use the device...
Page 4: Security Instructions
Introduction Thank you for choosing COCOMM DT200 device. This phone is designed for being used with GSM 900/1800, UMTS 900/2100 MHz, LTE FDD B1/2100MHz, B3/1800MHz, B7/2600MHz, B20/800MHz and LTE TDD B38/2600MHz networks and for operation requires a valid SIM card from your network operator. Please consult your network operator for more information.
Page 5: Sales Package Contents
PQRS WXYZ Charger base Quick guide COCOMM DT200 terminal This warranty does not include installation, starting, maintenance, displacements or unjustified requests for servicing. Products are not guaranteed for particular or specific applications other than the ones defined by CO-COMM Servicios Telecomunicaciones S.L. in CARTA DE GARANTÍA...
Page 6: Precautions For Use
Precautions for use Operating Environment Your COCOMM DT200 phone is a RF transmitter, so please turn off your terminal or disable radio functions within following situations: ● ● W hen you are in an airplane. ● ● ● W hen you are in the vicinity of flammable atmospheres and is indicated by the entity responsible for risk management.
Page 7 Precautions for use ● Turn down the volume or stop using the product if your ears are ringing. ● ● Do not raise the volume too much, doctors warn against the prolonged exposition to high volume. ● ● Excessive acoustic pressure from headphones can cause hearing loss. ●...
Page 8 Precautions for use Care and maintenance ● Listening to a music player at a very high volume can damage the user’s hearing and cause hearing problems (temporary or permanent deafness, ringing in the ears, tinnitus, hyperacusis). Therefore, it is strongly recommended that you do not use the player at full volume or for more than one hour a day at medium volume.
Page 9 Precautions for use Measures that affect the safety of users ● Do not use the mobile phone in certain situations (while driving) and certain places (airplanes, hospitals, schools, gas stations and professional workshops). ● For mobile phones, remember the prohibition of using the phone manually by the driver of a moving vehicle.
Page 10: Battery Use
Precautions for use Battery use ● Never use any charger or battery if damaged. Use the battery correctly. Do not short- circuit the battery, as this may damage the battery or cause a fire. ● Do not subject the battery to high temperatures or fire as it may explode. ●...

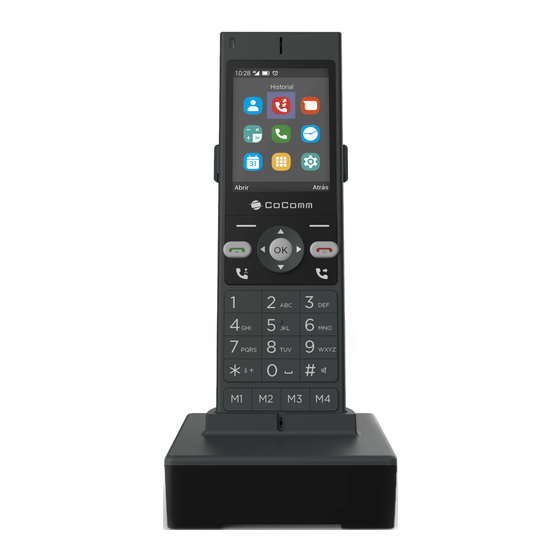

Page 11 Overview PQRS WXYZ 1� Notification LED 12� [ Asterisk key and Lock / Unlock 2� Earphone keyboard 3� LCD screen 13� [ Hash key and Silence key 4� — Left soft key 14� [ Speed dial keys 5� — Right soft key 15�...
Page 12: Installation
Installation Follow the following steps to install your SIM card and the various accessories of your Co-Comm DT200 cordless phone: Disconnect the power adaptor and remove the cover of the battery compartment from the back of the device to install the micro-SIM card and the micro-SD memory card. To install the micro-SIM card, slide the metallic cover to the right to unlock it, flip it up, and place the card following the direction shown in the illustration.
Page 13 Installation Insert the battery in its compartment, making sure the electrodes of the connectors from the terminal match the slots in the superior side of the battery, as indicated in the image. Reposition the cover of the battery compartment, and verify that it is correctly in place.
Page 14 Installation Charging the Battery When the battery level is low, the phone will emit a wanting sound and a low battery message. Connect the power adaptor in the device to start the charging. The screen will show the battery level during the charging process and, once it is completely charged, the battery icon will appear full.
Page 15 Keyboard Function Hang up / Turn During an active call, press to end the call. In applications, On/ Turn off press to return to main menu. When terminal is off, press for 3 seconds to turn on the phone. When terminal is on, press for 3 seconds to turn off the phone.
Page 16 Keyboard Function Hash key Insert pad character. Change the text input method. Long press to mute or unmute the device. Memory Programmable keys to store up to four telephone numbers. keys Transfer button When you have two calls, one active and one holded, press to make a call transfer between both calls.
Page 17: Numeric Keypad
Numeric keypad Check the below table when using alphanumeric keypad. When introducing some form of text on your phone, you can switch between entering numbers (123), lower case (abc) or uppercase (ABC) by pressing the # key. Lowercase (abc) Uppercase (ABC) .
Page 18 Display When the terminal is off, press for 3 seconds to turn the phone on. The first time a SIM card is inserted the phone will ask for the PIN code. Then, the next user interface will be displayed on the screen. 1�...
Page 19: System Icons
System icons Following illustration explains the meaning of system main icons that can be displayed on your phone: Networks connection No SIM card Data networks connection Low battery No signal Charging battery Message received Bluetooth active Call Wi-Fi active Call end Wi-Fi connected Call transfer Wi-Fi access point...
Page 20: Applications Menu
Applications menu or the left softkey to access the application menu. The following interface will then be displayed. 1� Contacts 4� Calculator 7� Calendar 2� History 5� Phone 8� Extra 3� Messaging 6� Clock 9� Settings Use arrow keys to select an application icon, press or the left softkey to access it.
Page 21 Applications menu Messaging Select the icon and press to access the phone’s messaging app. In this application, you can both write and send SMS text messages, and read the messages you have received. Calculator Select the icon from the applications menu, and press to access the calculator.
Page 22 Applications menu Extra Select the icon and press to access other applications of the device, like: Music, Unit Converter, Radio, etc. You can access the backside key’s configuration, selecting the corresponding section in this menu. Settings Select the icon from the applications menu, and press to access the system parameters.
Page 23 Settings COMMON SIM cards Wi-Fi Bluetooth Audio profiles Display Voice broadcast PERSONAL Security Date & time Language & input Scheduled power on/off Wire networks settings Airplane mode Tethering & portable hotspot Mobile networks Wi-Fi call SYSTEM Storage Battery Apps Reset About phone...
Page 24 Calling There are many ways to make calls with your COCOMM DT200 terminal: Calling using the alphanumeric keypad In the waiting mode, enter the phone number using the alphanumeric keypad, then press the key to place the call. To end the call, press the...
Page 25: Calling From Phonebook
Calling Calling from call log In the waiting mode, press the key or press the left soft key to access the applications menu, then select the icon to access the call history. Use the direction keys to show on the screen the list of incoming, outgoing and missed calls.
Page 26 Calling Transfer a call During an active call, press the left selection key, to access Options, and select Hold the pop-up menu to place the current call on hold. Access Options, again, and select Add a call, starting a second call to another number or to another contact from the contact list.
Page 27 Messages The COCOMM DT200 terminal supports the SMS text messages and the MMS multimedia messages. This section explains how to send and receive messages, and other related features. Create and send messages Access the applications menu and select the icon and press to initiate the phone’s messaging app.
Page 28: Delete Messages
Messages Delete messages Access the applications menu and select the icon the press to initiate the phone’s messaging app. Select one of the messages from the list, and press to view it. Use the keys to select the message. Press Options, then press Delete to delete the message from the inbox.
Page 29 Messages ● Text messages limit: activate this option to delete the old messages when ● it reaches the limits. Multimedia messages limit: this option allows you to edit the maximum ● number of messages in a conversation. MMS/Available/Total: this option allows you to see the storage space ●...
Page 30 Messages Other: ● Common phrases: look and create new predetermined phrases for your ● messages. Enable SMS retry: activate this option if you want a message that could not ● be sent would be tried again later. ● Manage SIM settings: press to access the SIM card configuration: Text messages (SMS): ●...
Page 31 Contacts This section explains how you can manage your contact list. Creating a new contact In standby mode, use the alphanumeric keypad to enter the number of the new contact. Press Options and select Add to contacts from the popup menu. Press Options again, and select...
Page 32: Edit Contact
Contacts Edit contact Access the applications menu and select the and then press to access the contacts menu. Use the keys to select a contact and press to access it. Press Options and select Edit in the pop-up menu. Fill in the form with the data you want to enter for the new contact, press Options, and select Save to save the entry and complete the operation.
Page 33 (will depend on the smartphone you use), then select the option Share Bluetooth, then select the option contacts). On your DT200 terminal, you will see a message to confirm the transfer of files. Use the keys to select Accept and then press Once done, the terminal will receive a .vcf (or vcard) file.
Page 34: Bluetooth Connection
Bluetooth connection ® The Bluetooth● function allows you to pair your terminal with other Bluetooth devices, allowing you to perform various functions: ● ● Connect Bluetooth accessories like, for example, Bluetooth earphones paired to answer calls received by the terminal. ●...
Page 35 Wi-Fi connection Setting up a Wi-Fi networks connection Select the icon within the application menu, and press to access the system settings menu. Use the arrow keys to select Wi-Fi and press to access. Press on Off, the Wi-Fi function will be activated and display the word On. All available Wi-Fi networks will be displayed.
Page 36: Troubleshooting
Troubleshooting Phone can not be turned on ● Be sure to hold down the button for more than 5 seconds. ● Make sure battery is properly connected to your phone. ● ● ● R emove the battery, reinstall it and restart your phone. ●...
Page 37: Network Failure
Troubleshooting Network failure ● It is possible that the phone is located in a weak signal area, move to a place with a stronger signal. It is out of network service coverage ● SIM card is not valid, contact your network provider. You have entered a number but the phone is not calling ●...
Page 38 Troubleshooting Your correspondent can not hear you ● Increase handset volume. ● ● ● C heck that handset cable is securely connected to the phone. Battery duration in standby mode is too short ● Battery standby duration is related to network configuration. You may be in a weak signal area.
Page 39 You can obtain a copy of the declaration of conformity with the directive mentioned by sending an email to clientes@cocomm.es, adding the word DoC in the Subject line, and specifying the lot number of the product in the body of the message.
Page 40: Sar Certification Information
Regulation SAR certification information This mobile device meets guidelines for exposure to radio waves. It is a radio transmitter and receiver low power. It is designed not to exceed the limits for exposure to radio waves as recommended by international guidelines. These guidelines were established by the International Commission on Non-Ionizing Radiation (ICNIRP), which is an independent scientific organization, and include safety measures designed to ensure the protection of persons, regardless of age or health...
Page 41 Regulation This product complied with Directives 2012/19/EU (WEEE Directive) and 2011/65/EU (RoHS2 Directive) and Regulation (EC) Nº1907/2006 (REACH), and bears selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.
