- Page 1 VR-3X00-SBU(S) User Guide V 1.1...

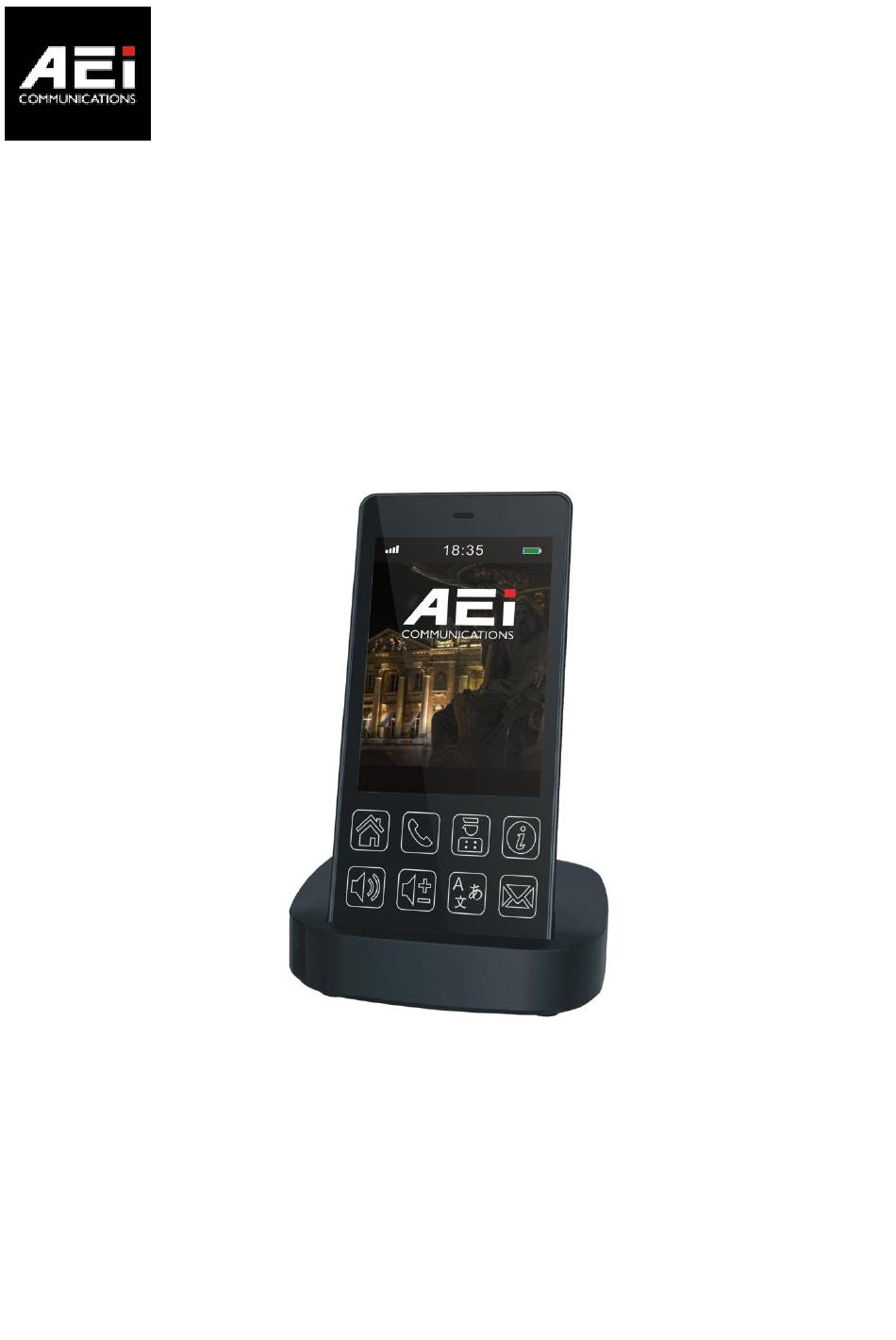

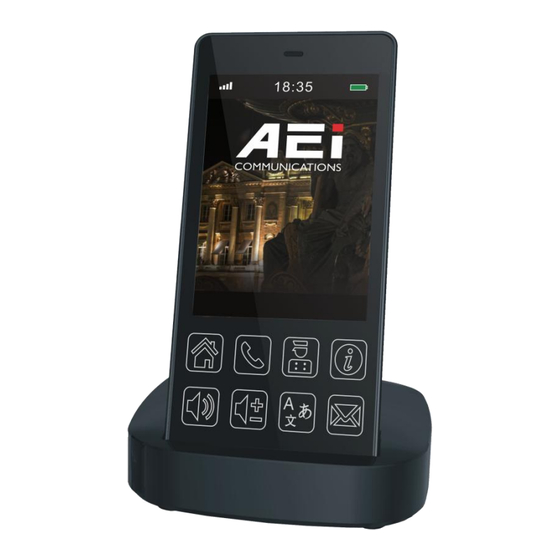

- Page 2 This phone is a full-feature telephone that provides voice communication. Read this user guide carefully to learn how to operate this product and take advantage of its features. When unpacking the phone, ensure all the following items are present and undamaged. If anything appears to be missing or broken, contact your dealer for a replacement.
- Page 3 item Name Description Language key Press to select display language Message key Press to listen to voice messages Red LED turns on when there is an unheard voice message Name Description DC jack Connects to AC/DC power adapter Name Description USB Charger ports Connects to charging cable of mobile device.
- Page 4 The following illustration shows how to install the handset and battery. Nokia BL-5C...
-
Page 5: Web Login
Web Login To setup the VR-3x00 handset from web configuration manually, boot the handset to the AP mode. Please remove the phone battery, press and hold the power button, and then install the battery. The VR-3x00 handset will startup and display its AP mode SSID, password and AP IP address. Please use your laptop to connect the VR-3x00 in AP mode. - Page 6 VoIP Setup the SIP account Switch: Check “Enable” to enable SIP registration or “Disable” to disable the SIP account temporarily. Display Name: Display Name is the name of the phone or the location of the phone on the remote party. User name: User name of the SIP account, also known as user ID or extension number.
- Page 7 Register Backup IP: IP address of the secondary SIP Server For example, 172.8.12.12 Codec Priority: Select the 2 codec priority. Frame Size: Frame size for G711u and G711a. G711 ranges from 20ms and 40ms. 2833 Payload: (Default, 101) DTMF RFC2833 Payload Type, ranging from 96 ~ 127 SIP Local Port: (Default, 5060) SIP Local port RTP Port Base: (Default, 42000)
-
Page 8: Speed Dial
Speed Dial SPEED DIAL 1 ~ 9: 9 touch screen service keys. SPEED DIAL 10: Message key System Server: The IP address information of the server, for example, 192.168.1.54. The phone will retrieve the .cfg file. Provision File: The name(room number) of the provision file in the root folder of the server. For example,1234: 1234.cfg Empty MAC.cfg Upgrade Protocol: (Default, TFTP) - Page 9 At dialing page , press [**6862* ] to enter system setup menu. 1. Network status Display network relative information: MAC address, access point SSID, IP address, and Wi-Fi status. 2. VoIP status Display SIP registration status and extension number. 3. Upgrade APP Update system firmware (fixed by Auto Provision setting).
- Page 10 6=1006 7=1007 8=1008 9=999 [AUTO_UPGRADE] PROTOCOL=TFTP SERVER_IP=192.168.168.253 PORT=69 FIRMWARE=vr3100 PARTITION=vr3100 [SIP_GLOBAL] LISTEN_PORT=5060 RTP_PORT=10000 PRIMARY_CODEC=G.711 uLaw SECONDARY_CODEC=G.711 aLaw RFC2833_TYPE=101 LOG_SERVER=192.168.168.253 CALLER_ID=0 After editing, save the config file name as [MAC Address] or [Room number]. MAC Address 00:11:22:33:44:55, config file name: 001122334455.cfg Room number 1234, config file name: 1234.cfg 2.
- Page 11 At dialing page , press following and to execute commands. **6862* Enter system setup menu **6863* Input WIFI SSID and Password **6865* Display firmware version **6866* Display MAC address **6867* Init Sync sync the phone settings (WIFI SSID, WIFI password, provision server) from other configured phones Step1: Configure the 1 phone from web interface: WIFI...
-
Page 12: Answering A Call
Answering a Call An incoming call is indicated by a ringing tone. You can answer the call by doing one of the followings: Press the dial key on the handset to answer the call. Making a Call Press dial key for numerical keypad. ... - Page 13 Date Ver. Description 2019/11/25 First issue 2022/9/16 Update for firmware v2.02...
