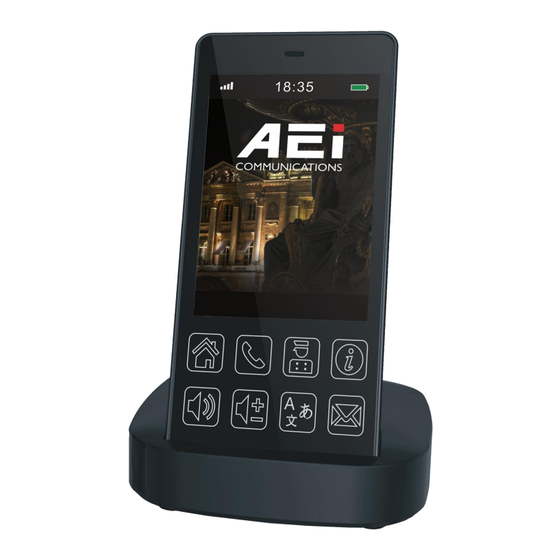

- Page 1 VR-3100-SBU(S) Quick Guide V1.00 VR-3100-SBU(S) Wi-Fi phone VR-3100-SBU(S) Wi-Fi phone...
-

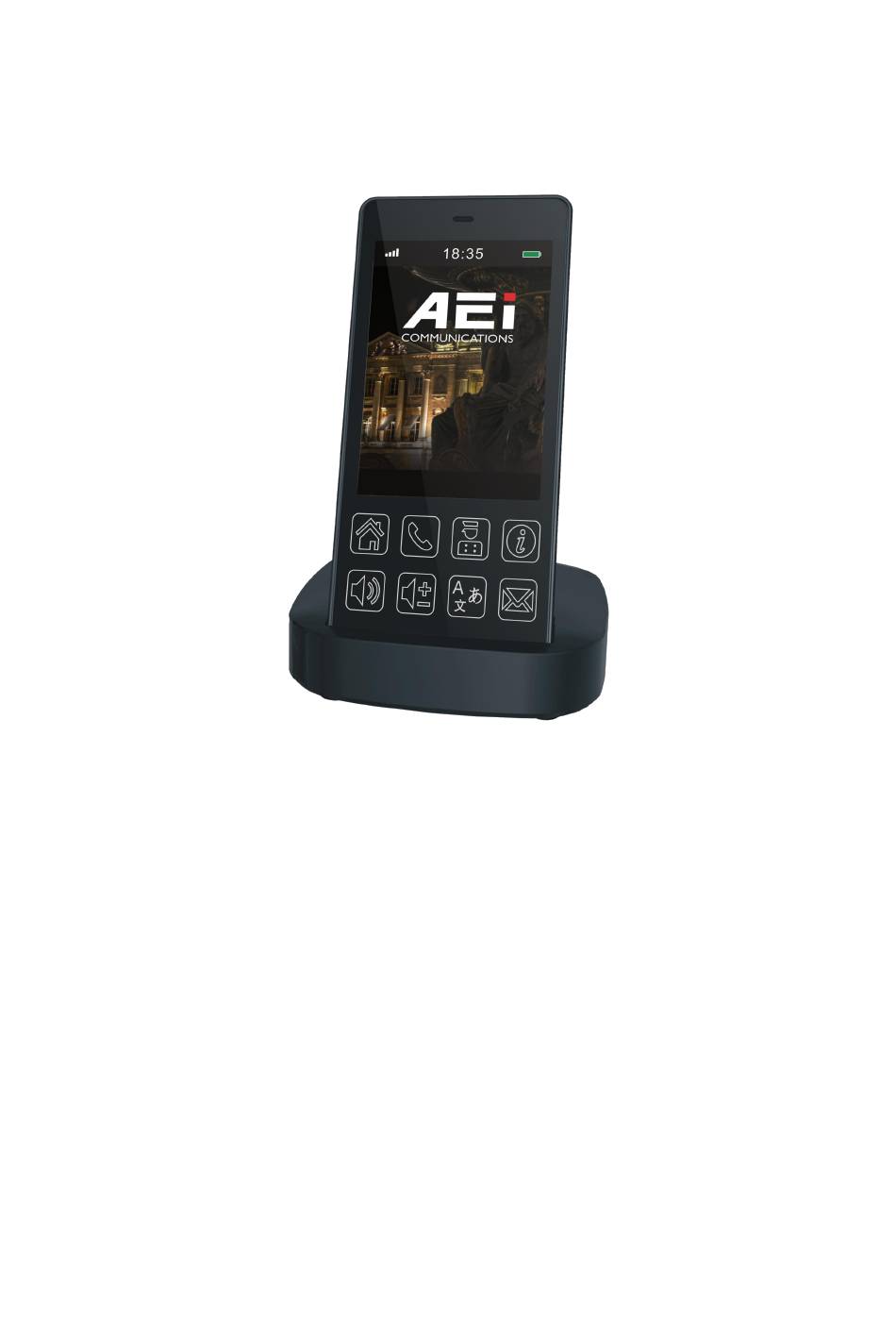

Page 2: Front View
Over Over This phone is a full-feature telephone that provides voice communication. Read this QIG carefully to learn how to operate this product and take advantage of its features. Package Contents Package Contents When unpacking the phone, ensure all the following items are present and undamaged. If anything appears to be missing or broken, contact your dealer for a replacement. -
Page 3: Battery Installation
item Name Description conversations. Volume + - Press to increase or decrease the volume of the ringer tone, handset, or speakerphone. Language key Press to select display language Message key Press to listen to voice messages. Red LED turns on while there is unheard voice message. Rear Rear view... -
Page 5: Phone Setup
Phone setup Phone setup At dialing page , press [**6862* ] to enter system setup menu. 1. Network status Display network relative information: MAC address, access point SSID, IP address, and Wi-Fi status. 2. VoIP status Display SIP registration status and extension number. 3. - Page 6 5=1005 6=1006 7=1007 8=1008 9=999 [UPGRADE] PROTOCOL=HTTP SERVER_IP=192.168.168.253 PORT=80 FIRMWARE=vr3100 PARTITION=vr3100 [SIP_GLOBAL] LISTEN_PORT=5060 RTP_PORT=10000 PRIMARY_CODEC=G.711 uLaw SECONDARY_CODEC=G.711 aLaw RFC2833_TYPE=101 LOG_SERVER=192.168.168.253 [PROVISION] SERVER=192.168.168.251 FILE=565 [END] SEND=END After editing, save the config file name as [MAC Address] or [Room number]. MAC Address 00:11:22:33:44:55，config file name: 001122334455.cfg. Room number 1234，config file name: 1234.cfg.
- Page 7 4. Wi-Fi Phone provisioning After connecting to internet and setting up provision server/config file type, press [**6868* ] at dialing page Wi-Fi phone will restart and execute provisioning to complete phone settings. Summary ystem commands Summary ystem commands At dialing page , press following and to execute commands:.
