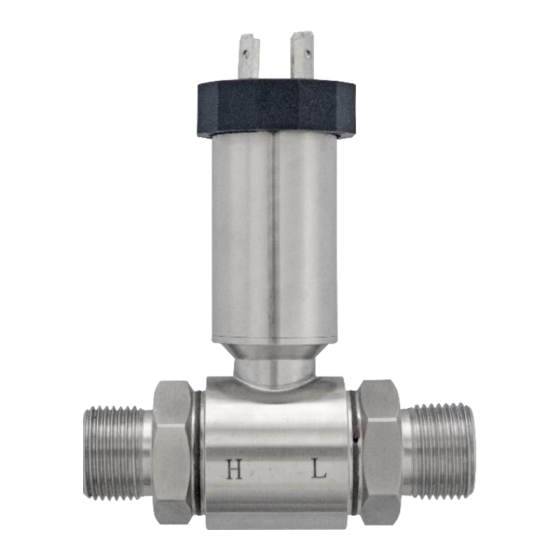

PCM610J Differential Pressure Transmitter
Features
SS316L diaphragm structure
■
Differential pressure value
■
measurement
Easy to install
■
The zero point and full span of the
■
product can be adjusted externally
With the short circuit protection and
■
reverse polarity protection
Shock resistance, anti-vibration ，
■
anti-electromagnetic compatibility
Can be customized according to
■
the customer's requirements
Applications and industries
Equipment matching
■
Scientific experiment
■
Precision instrument
■
Water supply and drainage
■
Power plant differential pressure
■
Flow quantity
■
Notes:
1 Do not touch the diaphragm with hard
objects, which may cause damage to the
diaphragm.
2 It is recommended to install the
three-valve manifold when using this
product.
3 Please read the Instruction Manual of
the product carefully before installation
and check the relevant information of the
product.
4 Strictly follow the wiring method for
wiring, otherwise it may cause product
damage or other potential faults.
Version No.: V1.0

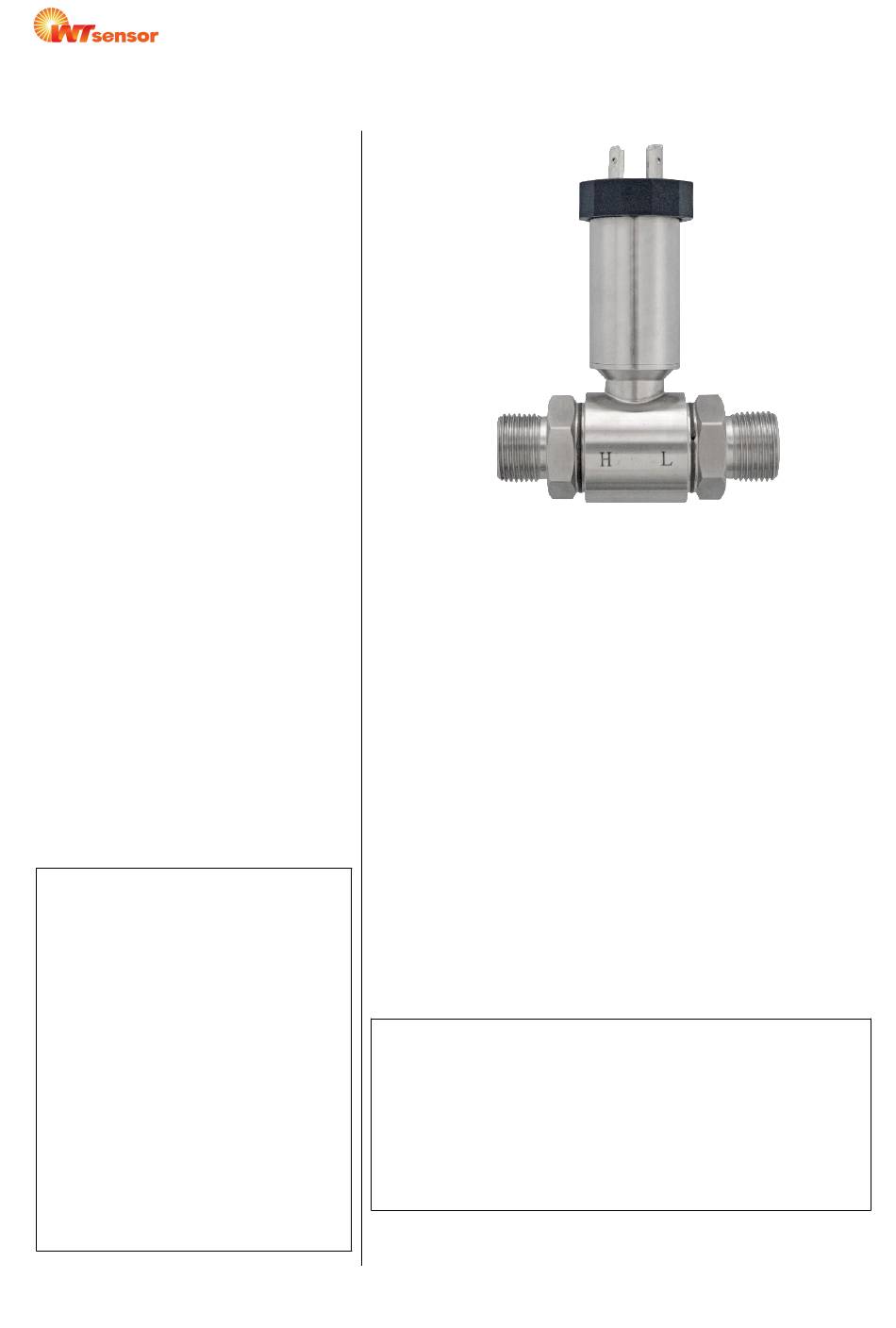

Product overview
PCM610J Differential Pressure Transmitter is assembled
by OEM piezoresistive silicon differential pressure oil-filled
sensor. The housing has all stainless steel structure, and has
very
strong
corrosion
connections have threaded connections, and can be directly
installed on the measuring piping or connected through the
press-leading tube.
PCM610J series has a standard current output, can be
conveniently installed or used, and widely used for differential
pressure, liquid level flow quantity measurement and control
etc. in the fields such as process control, aviation, aerospace,
automobile, medical equipment, HVAC.
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for reference
only. Do not use this document as a product installation guide.
3 Complete installation, operation, and maintenance information is
provided in the instructions of the product.
4 Misuse of the product may cause danger or personal injury.
1
resistance;
the
two
www.wtsensor.com
pressure
Advertisement
Related Manuals for WT sensor PCM610J
Summary of Contents for WT sensor PCM610J
- Page 1 Flow quantity ■ press-leading tube. PCM610J series has a standard current output, can be conveniently installed or used, and widely used for differential pressure, liquid level flow quantity measurement and control etc. in the fields such as process control, aviation, aerospace, automobile, medical equipment, HVAC.
- Page 2 Performance parameters Pressure range 0～10kPa…2.5MPa Static pressure 10MPa (Max.) Pressure reference Differential pressure Supply & output 4～20mA (12～36VDC; cannot add load for 12V) Accuracy ±0.5%FS Temperature drift ±1.5%FS(-20℃～85℃) Power-on response time ≤100ms (Up to 90%FS) Service life ≥1×10 pressure cycles -20℃～85℃...
- Page 3 Pressure connection Thread code C1: M20×1.5-6g C2: G1/2 C3: G1/4 Dimension In mm Recommended 15～25Nm 15～25Nm 15～25Nm torque Note: The torque depends on all kinds of factors, such as gasket material, kitting material, thread lubrication and pressure. Pressure range selection Pressure range Positive direction Negative direction...
- Page 4 How to order PCM610J - Product model J5: DIN43650 Refer to “Pressure range selection” C1: M20×1.5-6g C2: G1/2 B1: 4～20mA C3: G1/4 Example: PCM610J-35kB1C3J5 Refer to product modelPCM610J, pressure range 0～35kPa, power supply 24V, output signal 4～ 20mA, pressure connection G1/4, DIN43650 connector.
