WT sensor PCM710 Manual

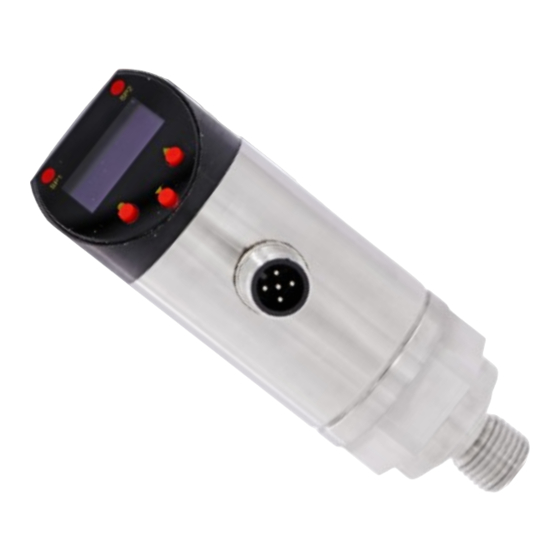

PCM710 Intelligent Pressure Switch
Features
High precision
■
Adjustable response time
■
NPN, PNP compatible, free
■
switching
Button operation, shortcut button
■
for one-click zero calibration, fast
unit switching
OLED shows the current
■
pressure
LED for node action, easy to
■
observe
Applications and industries
Hydropower
■
Chemical industry
■
City water supply
■
Scientific research
■
Accurate measurement and
■
control of pressure of fluids
Notes:
1 Do not touch the diaphragm with hard
objects, which may cause damage to
the diaphragm.
2 Please read the Instruction Manual of
the product carefully before installation
and check the relevant information of
the product.
3 Strictly follow the wiring method for
wiring, otherwise it may cause product
damage or other potential faults.
4 Misuse of the product may cause
danger or personal injury.
Product overview
PCM710 Intelligent Pressure Switch is an intelligent
pressure measurement & control product which integrates
pressure measurement, display, output and control. This product
is in full-electronic structure. The piezoresistive silicon pressure
sensor is adopted in the front end. The output signal is
processed by the amplifier with high precision and low
temperature drift, and then sent into high precision A/D
converter. Through arithmetic processing by microprocessor, the
output signal is displayed on site with 2-way switch quantity and
4～20mA analog quantity, accomplishing the measurement and
control for the control system pressure.
This intelligent digital pressure controller has advantages of
flexible use, simple operation, easy commissioning and high
safety and reliability. It is widely used in hydropower, tap water,
petroleum, chemical, mechanical, hydraulic and other industries
for the measurement, display and control of pressure of fluid
media.
Notes:
1 Do not misuse documentation.
2 The information presented in this product sheet is for reference
only. Do not use this document as a product installation guide.
3 Complete installation, operation, and maintenance information is
provided in the instructions of the product.
4 Misuse of the product may cause danger or personal injury.
