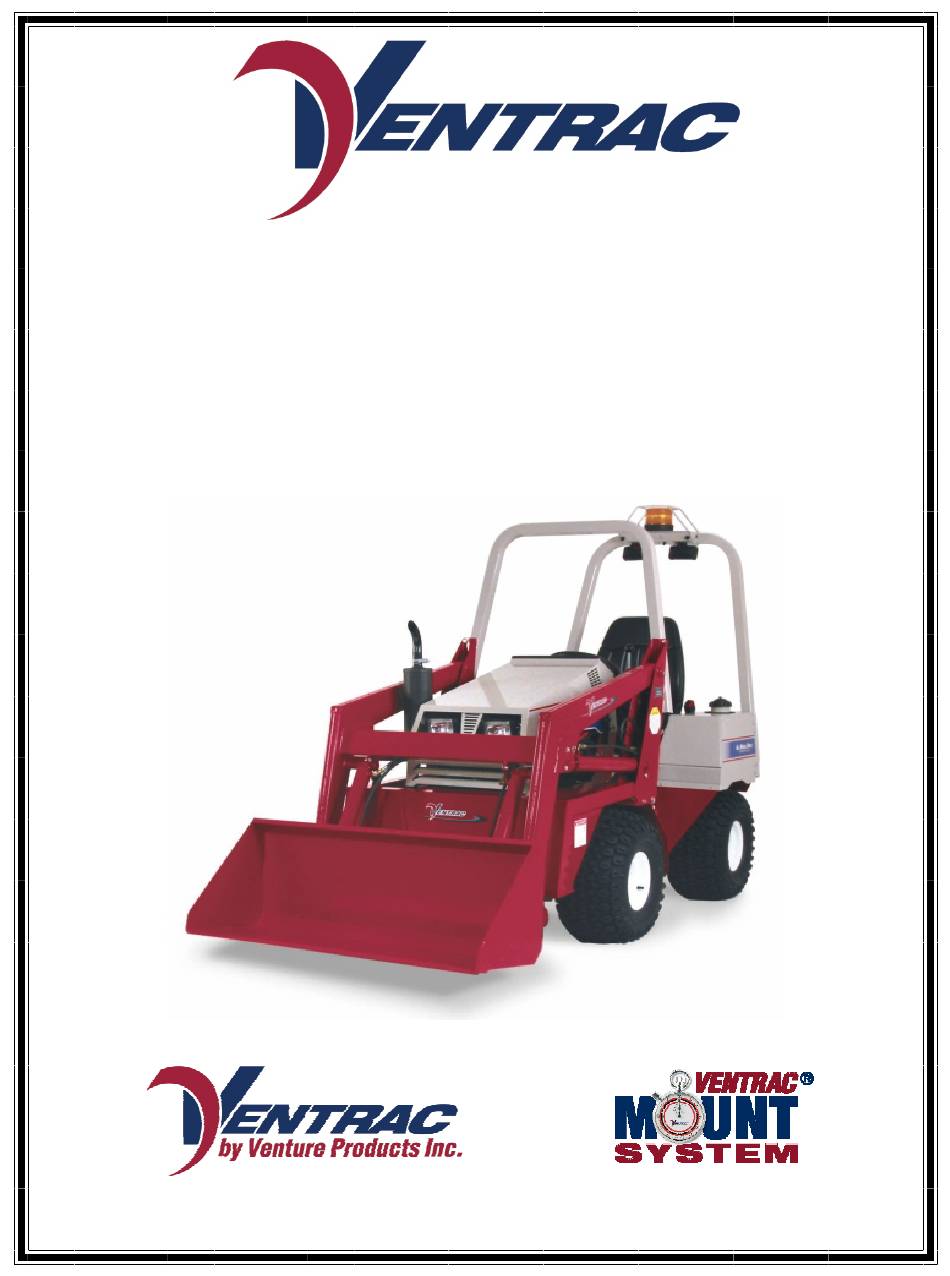

  • Page 1 OWNER/OPERATOR’S MAN UAL & PARTS LIST VERSA-LOADER Model KH500 Re vised 04/15/14 09.10020 Rev. 02...
  • Page 2 TO THE OWNER Product Identification If you need to contact an Authorized Ventrac Dealer for information on servicing your product, always provide the Product Model and Serial numbers. Please fill in the following information for future reference. See picture below to find the location of the identification number.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION SECTION A Description & Specifications ....... A-1 SAFETY SECTION B Safety Symbols .
  • Page 4 INTRODUCTION Product Description KH500 The KH500 front end versa-loader attachment is designed to give you, the owner, more versatility with your Ventrac tractor. It is a universal tool for moving and loading material, digging, leveling, and boring holes. The loader is designed and built with all-steel construction, making it strong and rugged. It has an independent hydraulic pump and oil reservoir, with two inch cylinders for lifting and dumping.
  • Page 5 SAFETY ATTENTION This symbol identifies potential health and safety hazards. It marks safety precautions. Your safety and the safety of others is involved. SIGNAL WORD DEFINITIONS Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. This signal word is limited to the most extreme cases.
  • Page 6: Safety

    SAFETY The following decals must be maintained on your Ventrac Attachment. If any decals are faded or missing, contact your dealer promptly for replacements. Page & Decal Description Part Number Location E-1, #35 Warning Loader Roll Bar 00.0194 E-1, #37 Danger Loader 00.0193...
  • Page 7: General Safety Procedures

    SAFETY General Safety Procedures for Ventrac Tractors, Attachments, & Accessories Read and understand the operator’s manual before operating this equipment. Observe and follow all safety decals. DO NOT let children or any untrained person operate the tractor or attachment. Make sure that all operators of this equipment are thoroughly trained in using it safely.
  • Page 8 SAFETY KH500 Safety Procedures Before making any repairs or adjustments, lower attachment to the ground, set parking brake, shut the engine off, and remove the key. Read and understand the operator’s manual before operating this equipment. Dual wheels must not be used with the Versa-Loader.
  • Page 9: Setup & Operation

    SETUP & OPERATION Setup Instructions for KH500 Front End Versa-Loader: 1. Remove crating from around loader and remove crating brackets. With an overhead hoist, lift loader clear of crate and set on level surface. Mount bucket to tool bar and engage locking pins.
  • Page 10: Setup

    SETUP & OPERATION Fig 5 6. Slide loader mounting shaft through tractor frame from either side, just above the foot pegs, and install bolts in shaft mounting flange. Slide clamping flange on opposite side and bolt to frame. (Fig 5)(Page E-1, Ref #24, 25) Note: The holes of the clamping flange will not align perfectly with the holes on the...
  • Page 11: Detaching

    SETUP & OPERATION Fig 8 Fig 9 6. Slip lock plates above pins on the 9. Start engine and raise loader. Return rear anchors and tighten wing nut. loader arm locking device to its (Fig 8) storage position. 7. Tighten the bolts holding the rear 10.
  • Page 12: Operating

    SETUP & OPERATION Operating Techniques and Tips: The front end loader can be a great tool for performing many tasks, such as moving and loading material. Because of the nature of a front end loader to lift material to a high position and change the center of gravity, it is necessary to keep SAFETY as the FIRST PRIORITY.
  • Page 13: Maintenance & Service

    25 to 30 hours. If conditions are very severe, more may be required. • The hydraulic oil level should be maintained between the upper and lower notches on the dipstick. The oil tank holds approximately eight gallons of oil. Use Ventrac Hydro•Torq XL hydraulic oil or equivalent.
  • Page 14: Main Frame & Loader Arms

    PARTS ILLUSTRATED DRAWING MAIN FRAME & LOADER ARMS...
  • Page 15 36 ..00.0189 ... Decal, Ventrac - Small Orbital ....
  • Page 16: Tool Mount Plate

    PARTS ILLUSTRATED DRAWING TOOL MOUNT PLATE...
  • Page 17 PARTS TOOL MOUNT PLATE REF. PART NO. DESCRIPTION QTY. 1 ..62.0949 ... Universal Attachment Mount ..... 1 2 .
  • Page 18: Hydraulic Pump & Valve

    PARTS ILLUSTRATED DRAWING HYDRAULIC PUMP & VALVE...
  • Page 19 PARTS HYDRAULIC PUMP & VALVE REF. PART NO. DESCRIPTION QTY. 1 ..22.0035 ... Hydraulic Hose Assembly - 5/8 x 28 ....1 2 .
  • Page 20: Hydraulic Lift

    PARTS ILLUSTRATED DRAWING HYDRAULIC LIFT...
  • Page 21 PARTS HYDRAULIC LIFT REF. PART NO. DESCRIPTION QTY. 1 ..25.6400-06-08 ..Hydraulic Fitting, Connector - 3/8 x 1/2 ....2 2 .
  • Page 22: Hydraulic Tilt

    PARTS IL LUS TRATED DRAWING HY DRAU LIC TILT...
  • Page 23 PARTS HY DRAU LIC TILT REF. PART NO. DE SCRIP TION QTY. 1a ..20.0202 ... Hy drau lic Hose As sem bly - 3/8 x 54 (Se rial # 1001-1117) ..1 1b .
  • Page 24: Buckets & Tine Fork

    PARTS ILLUSTRATED DRAWING BUCKETS & TINE FORK E-11...
  • Page 25 PARTS BUCKETS & TINE FORK REF. PART NO. DESCRIPTION QTY. 1 ..62.0950 ... 5 Cubic Foot Standard Bucket ....1 2 .
  • Page 26: Pallet Forks & Lift Boom

    PARTS ILLUSTRATED DRAWING PALLET FORKS & LIFT BOOM E-13...
  • Page 27 PARTS PALLET FORKS & LIFT BOOM REF. PART NO. DESCRIPTION QTY. 1 ..62.0966 ... Pallet Fork Backrest ......1 2 .
  • Page 28: Hydraulic Diagram

    PARTS ILLUSTRATED DRAWING HYDRAULIC DIAGRAM E-15...
  • Page 29 PARTS HYDRAULIC DIAGRAM REF. PART NO. DESCRIPTION QTY. 1 ..20.0190 ... Hydraulic Hose Assembly - 3/8 x 130 ....1 2 .
  • Page 30 V.P.I. V.P.I.’s responsibility in respect to claims is limited to making the required repairs or replacements, and no claim of breach of warranty shall be cause for cancellation or rescission of the contract of sale of any Ventrac equipment.
  • Page 31 V.P.I.; (f) repair or replacement arising as a result of any operation from Ventrac turf equipment that has been altered or modi- fi ed so as to, in the determination of V.P.I., adversely affect the operation, performance or durability of the equipment or that has altered, modifi...
