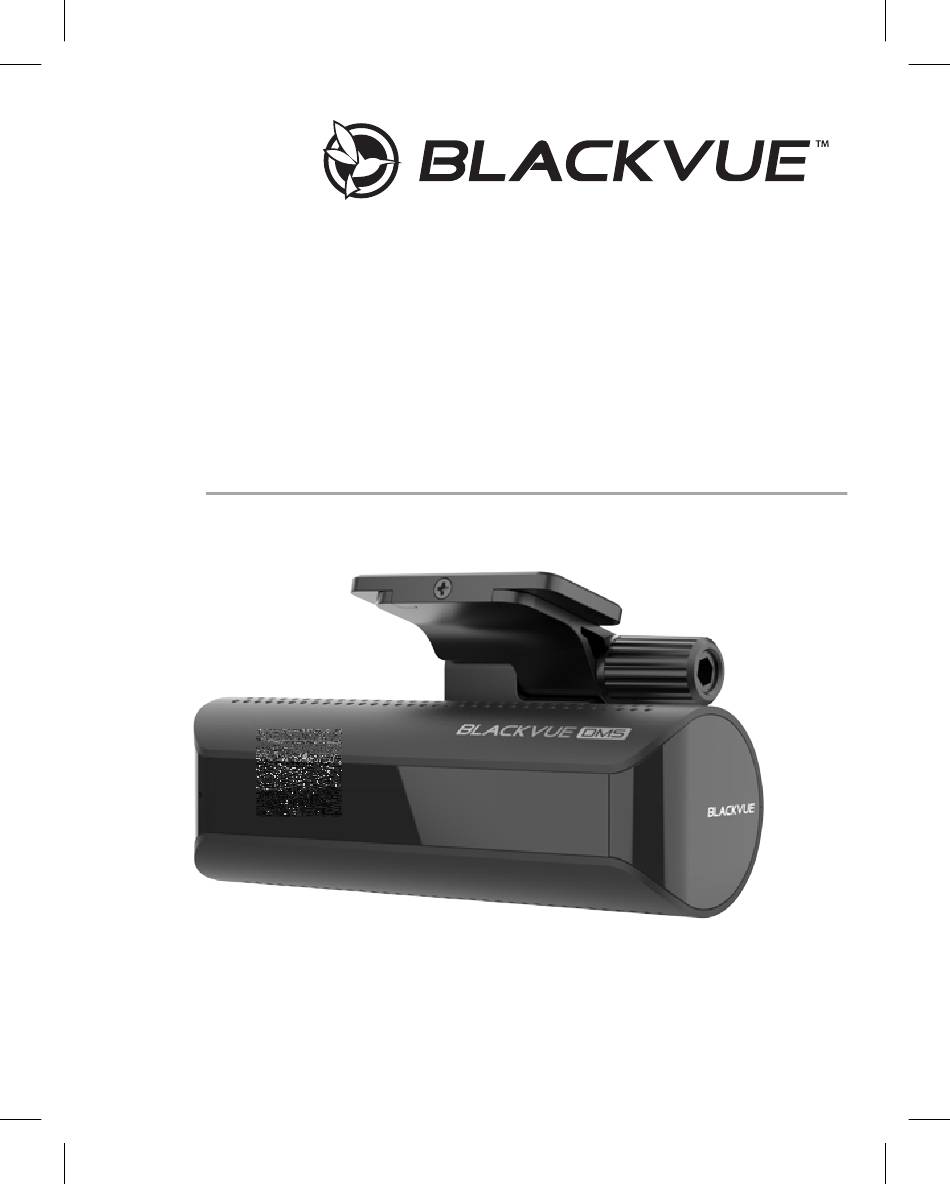

- Page 1 DMC200 User Guide (Driver Monitoring System) Cloud Dashcam with Driver Monitoring System...
- Page 2 BLACKVUE DMC200 For manuals, customer support and FAQs go to www.blackvue.com...
-
Page 3: Need Help
In the box (DR750X DMS Plus / DR900X DMS Plus Package) Check the box for each of the following items before installing the BlackVue dashcam. Front camera DMS camera Front camera Front camera Cigarette Hardwiring power Lighter power cable cable (3p) - Page 4 In the box (For DR750X DMS LTE Plus Package) Check the box for each of the following items before installing the BlackVue dashcam. Front camera DMS camera Front camera Cigarette DMS Hardwiring Lighter power cable power cable (2p) (2p) DMS Cigarette...

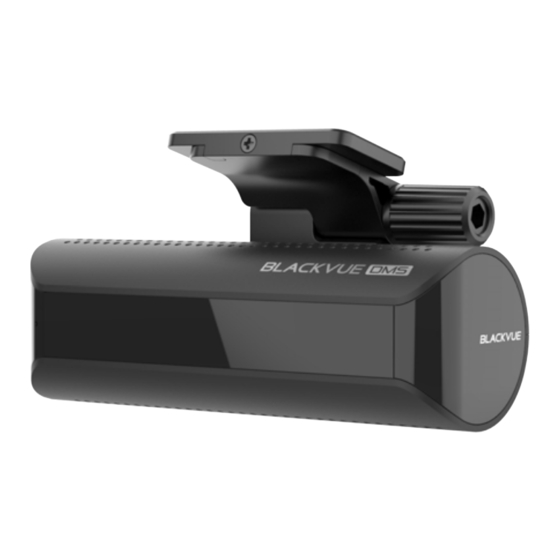

- Page 5 At a glance The following diagrams explain each part of the BlackVue DMS camera. Mounting bracket Indicator LED IR LED (Inside) Camera lens (Inside) : Light Blue in Calibration : Light Green in Normal mode : When DMS event detected, Light Red is turned on...
- Page 6 Depending on the mounting position of the product, DMS functions may not operate normally. Warning y Do not install the product in a location where it can obstruct the driver's field of vision. y Be careful not to interfere with the product when operating the vehicle handle. BLACKVUE...
- Page 7 6:4 road to background ratio. Note y Recorded videos from DMS are saved to the microSD card on the front dashcam. y For DR750X DMS LTE Plus users, please insert the SIM card following QSG that's included in the box. DMC200...
- Page 8 Attach the DMS camera to the windshield or dashboard. Attach the DMS camera to the windshield or dashboard. GOOD GOOD BEST BEST GOOD GOOD Windshield Installation Dashboard Installation Note y For best accuracy of DMS, install the DMS camera in the recommended area. BLACKVUE...
- Page 9 Use the pry tool to lift the edges of the rubber window sealing and or molding and tuck in the DMS camera connection cable. DMS camera connection cable Connect the DMS camera (DC in) using DMS camera hardwiring cable (2p) to a car fuse, For details, Skip to for DMS Hardwiring Power cable setup. DMC200...
- Page 10 Location of the fuse box differ by manufacturer or model. For details, refer to the vehicle owner's manual. y If you want to use cigarette lighter power cable for DMS camera, plug the cigarette lighter power cable (2p) into cigarette socket. 10 BLACKVUE...
- Page 11 A low voltage power cut-off function and a parking mode timer to protect the automotive battery from discharge is installed in the device. Settings can be changed in the BlackVue App or Viewer. DMC200 11...
- Page 12 Complete installation DMS camera and Front camera Turn on the engine, DMS booting up Adjust the camera angle if necessary to ensure the driver's head is within the camera. (Please check your face through "Live view" via Wi-Fi direct or BlackVue Cloud.) When DMS calibration starts, Blue LED blinks for 30 secs to 2 mins.
- Page 13 When power is turned off, the DMS is Power Off turned off. Note y Among the functions, Distracted and Hand Distraction are not available if GPS is under 5km. y Algorithm may change in order to improve accuracy. DMC200 13...
-
Page 14: Product Specifications
Product specifications: Model Name DMC200 Color/Size/Weight Black/width 115.0 mm x Height 37.88 mm Camera STARVIS™ CMOS Sensor (Approx. 2.1 megapixels) Viewing Angle Diagonal 115°, Horizontal 95°, Vertical 49° Resolution/ Full HD (1920x1080) @30fps Frame Rate * Frame rate may vary during Wi-Fi streaming. - Page 15 Parking Mode (WiFi Off/GPS Off): Avg. 560mA/12V • DR900X-2CH DMS Plus -20°C–70°C Operation • DR750X-2CH DMS Plus Temperature -20°C–75°C • DR750X-2CH DMS LTE Plus -20°C–75°C • DR900X-2CH DMS Plus -20°C–75°C Storage • DR750X-2CH DMS Plus Temperature -20°C–80°C • DR750X-2CH DMS LTE Plus -20°C–80°C DMC200 15...
- Page 16 BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) Other Features Adaptive Format Free File Management System * STARVIS is a trademark of Sony Corporation. For more information about using the DMC200 please download the DMC200 manual from www.blackvue.com > Support > Downloads. 16 BLACKVUE...
- Page 17 This device should be installed and operated with minimum 20 cm between the radiator and your body. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 17 BLACKVUE...
- Page 18 This equipment should be installed and operated with minimum 20 cm between the radiator and your body. Cet appareil doit etre installe et utilise avec un minimum de 20 cm entre le radiateur et votre corps. 18 BLACKVUE...
- Page 19 Notes...
- Page 20 Notes...
- Page 21 Notes...
- Page 22 FCC ID: YCK-DMC200 / HVIN: DMC200 / IC: 23402-DMC200 | DMS(Driver Monitoring System) Product | DMC200 Model Name Manufacturer | Plttasoft Co., Ltd. Address | A 4th floor, ABN Tower, 331, Pangyo-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea, 13488 Customer Support | cs@plttasoft.com...
