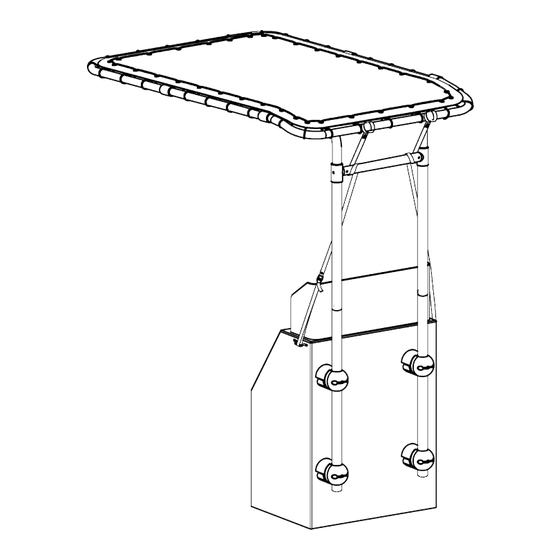

T-TOP (MA 081) INSTRUCTIONS TOOLS REQUIRED (Not Supplied) Read the entire instruction manual before starting, so that you are Phillips head screw driver familiar with the stages of the assembly and the tools required at each step. Codeless Drill Masking tape, Tape measure & Pencil...
Page 2
STEP 2 - If the surface is angled, you will need to cut the Console Mount Bases 9b to keep the T-Top vertical a. Select the location to attach the Console Mounts. b.Mark the Screw positions (16 Places) - Front Mount...
Page 3
Attach Bracing Bar to Uprights STEP 3 - 15mm Ø With Drill Bit 23 a. Cut the Bracing Bar according b. Drill a hole as shown in the diagram to your measurement L (15mm from the edge of the Bracing Bar) Assemble Frames STEP 4 - c.
Page 4
Attach the Fabric to the Top Frame STEP 5 - a. Remove the top frame. b. Position the Fabric over the Top Frame fasten with Cable Ties 19 as shown c. Pass the Cord 24 through the holes as shown 4 Corners Fabric d.
Page 5
15a 15b 15c in the diagram (both sides) b. Tension the Webbing Strap 14 as shown in the diagram (2 places) IF REQUIRED T-TOP CAN BE EASILY REMOVED OR RETRACTED Removing the T-Top Retracting the T-Top OPTION 01 -...
