- Page 1 Camera Accessories for ALEXA 35: Camera Accessories for ALEXA 35: Audio Extension Module AEM-1 Audio Extension Module AEM-1 U S E R U S E R M A N U A L M A N U A L July 4 2022...
- Page 2 Disclaimer Disclaimer Before using the products, be sure to read and understood all respective instructions. The products are available for commercial customers only. For product specification changes since this manual was published, refer to the latest publications of ARRI data sheets or data books, etc., for the most up-to-date specifications. Not all products and/or types are available in every country.
-
Page 3: Table Of Contents
Scope of Delivery and Warranty..................9 Certification and Safety Standards...................9 Safety Instructions......................12 Safety Conventions and Product Labels................ 12 General Safety Instructions.................... 12 Overview Audio Extension Module AEM-1..............14 Mounting the Accessories.....................15 Operating......................... 17 Switch on Audio Extension Module AEM-1..............17 Home Screen Overview and Navigation................ 17 6.2.1... - Page 4 Content Repair..........................27 Transportation and Storage...................28 Disposal........................... 29 ARRI Service Contacts....................30...
-
Page 5: About This Document
About this Document About this Document This user manual is aimed at everyone involved in using the system and provides directions on how to operate it safely and as intended. To ensure safe and correct use, all users must read the user manual before using the accessories for the first time. -
Page 6: About The Products
Always follow the instructions and system requirements for all equipment involved. The Audio Extension Module AEM-1 enables audio source selection for the ALEXA 35 and serves as a microphone amplifier. In camera playback mode, the audio from the camera is injected into the main audio channels. -
Page 7: Environmental Conditions
About the Products Environmental Conditions The ALEXA 35 electronic accessories should only be used and stored under certain environmental conditions. Check the following conditions before commissioning and operation: Electrical Requirements Input voltage: 20.5 - 33.6 V DC Operating Temperature -20° C to +45° C / -4° F to +113° F Storage Temperature -30°... -
Page 8: Technical Data
About the Products Technical Data Audio Extension Module AEM-1 Measurements (HxWxL) 132.50 x 119.45 x 34.72 mm Weight 504 g / 1,111 lbs Frequency Response 20 Hz - 90 kHz Operating Temperature -20°C - +45°C Power Outputs 1x 24 V 3-pin Fischer connector supporting start/stop (max. 4.0 A) 1x 12 V 2-pin Lemo connector (max. -
Page 9: Dimensional Drawings
Certification and Safety Standards Approval Information The Audio Extension Module AEM-1 is approved for use in countries where the CE or FCC declaration is accepted. That contains the European Union, Canada, Japan and the USA. The import and use in other countries may be subject to legal, official or regulatory requirements and regulations. - Page 10 Brand Name: SONOSAX SAS SA Product Description: Audio Extension Module AEM-1 The product conforms to the specifications of the following European directives: Directive 2014/30/EU EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility...
- Page 11 About the Products Changes or modifications to the product not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Industry Canada Statement CAN ICES-003(A)/NMB-003(A)
-
Page 12: Safety Instructions
Safety Instructions Safety Instructions This safety information is in addition to the product specific operating instructions in general and must be strictly observed for safety reasons. Read and understand all safety and operating instructions before you operate or install the system. Retain all safety and operating instructions for future reference. - Page 13 Safety Instructions WARNING! Operation of the Camera System in Case of Obvious Damage Risk of electric shock and fire hazard caused by short circuit. Do not use the system if electrical lines or housing are visibly damaged. Operate the system using only the type of power source indicated in the manual. Unplug the power cable by gripping the power plug, not the cable.
-
Page 14: Overview Audio Extension Module Aem-1

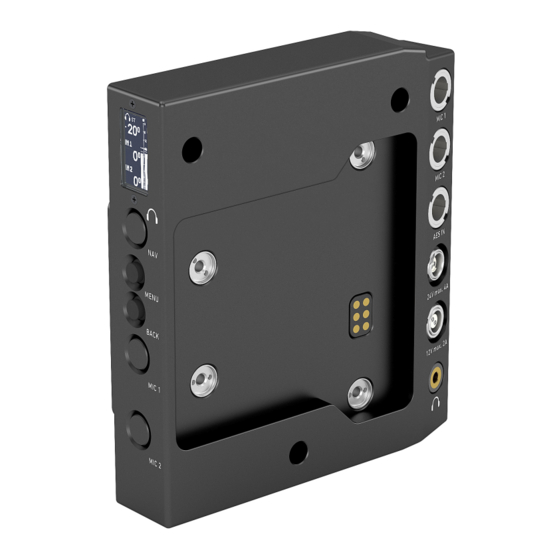

Overview Audio Extension Module AEM-1 Overview Audio Extension Module AEM-1 MIC 1 Input MIC 2 Input AES Input 24 V Output 12 V Output Headphones Output User Display Rotary Encoder for Phones Level and Menu Navigation Menu Button BACK Button... -
Page 15: Mounting The Accessories
Always use the tools specified by the manufacturer for mounting. INFO The Audio Extension Module AEM-1 is compatible with the ALEXA 35. Please note that either the Audio Extension Module AEM-1 or the Power Distribution Module PDM-1 can be mounted on the camera. Preparation: Switch off the camera and unplug any power supply. - Page 16 Mounting the Accessories How to mount Audio Extension Module AEM-1: The Audio Extension Module AEM-1 attaches to the back of the camera with three captive M4 screws. 1. Gently place the Audio Extension Module AEM-1 counterpart in the re- cessed area at the back of the cam- era.
-
Page 17: Operating
AEM-1. Switch on Audio Extension Module AEM-1 The Audio Extension Module AEM-1 is powered from 12V or 24V camera and will boot up as soon as a power supply is applied. After the boot-process, the home screen appears in the user display. Depending on the selected input... - Page 18 Operating Rotary Encoder for Phones Level Opens the Menu -No action- Rotary Encoder for MIC/LINE 1 Gain Rotary Encoder for MIC/LINE 2 Gain The three rotary encoder can be moved in and out by pressing them.
-
Page 19: Menu Overview And Navigation
Operating Menu Overview and Navigation 6.3.1 Menu Overview 6.3.2 Menu Navigation Press the MENU button on the Audio Extension Module AEM-1 to open the menu. The following buttons are used within the menu:... -
Page 20: Selecting An Input Source
Digital Input 1 input for external devices Camera Source When you select the Camera Source, the AEM-1 connects directly to the camera. Thereby you can listen to recorded audio on the camera. How to select an input source: 1. Open the menu via Menu button. -
Page 21: Analog Input Settings
Operating Analog Input Settings INFO As long as another source than analog is selected, the analog settings are all hidden in the input setting menu. All analog input settings are found in the input settings menu. ► Select MENU > INPUT. This menu configures both the analog MIC 1/2, the AES input and camera source. -
Page 22: Limiter Threshold
Inputs Settings (Source select) Headphone Settings The level of the head phone can be adjusted directly in the home screen via the Rotary Encoder for Phones Level see section "Overview Audio Extension Module AEM-1". You can adjust the level between -60dB and +20dB. -
Page 23: Reference Tone Settings
Operating More settings can be adjusted in the menu item PHONE: ► Select MENU > PHONE . The PHONE menu allows the user to select how the two channels will be heard. The following routing pattern are available: IN1: input 1 in mono to both ears IN2: input 2 in mono to both ears MONO: both inputs summed as mono to both ears ST: IN1 to left, IN2 to right (stereo) -
Page 24: Aem-1 Oled Brightness
Factory default is 3 seconds. 6.10 AEM-1 OLED Brightness The OLED brightness can be adjusted from 0 to 100%. When set to 0%, the display turns off after 4 seconds of user’s inactivity. As soon as an action is detected, the display lights up again. -
Page 25: Reset To Default Settings
2. Download the new software version for AEM-1 module. 3. Put the installation file on the camera USB flash drive. 4. Connect the camera USB flash drive with the AEM-1 module. 5. Open the AEM-1 menu via MENU button. 6. Go to SETUP > UPDATE. -
Page 26: Error Messages And Debugging
Possible reason: Resolve error: Hardware problem Switch off the camera, the Audio Extension Module AEM-1 and all other connected devices. Check if the ARRI Audio Extension Module AEM-1 is correctly at- tached to the camera. Check if all connected devices have been connected properly. -
Page 27: Cleaning And Repair
Cleaning and Repair Cleaning and Repair Cleaning Instructions NOTICE Improper Cleaning Procedure Risk of damage of surfaces. Only use the cleaning agents specified in this chapter. Do not use any strong or aggressive cleaning detergents like Methanol, Acetone, Benzine or acids. -
Page 28: Transportation And Storage
Transportation and Storage Transportation and Storage NOTICE Improper Packing and Transportation Risk of damage to the accessories. Unplug all cables during transport. Only transport and storage the accessories in suitable cases. Follow the specified environmental conditions. Do not store the accessories in places where they may be subject to temperature extremes, direct sunlight, high humidity, severe vibration or strong magnetic fields. -
Page 29: Disposal
Disposal Disposal INFO The product can be returned to the manufacturer. This product falls within the scope of Directive 2012/19 / EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of June 4, 2012 on waste electrical and elec- tronic equipment (WEEE II). Accordingly, this product must not be disposed of with household waste. -
Page 30: Arri Service Contacts
ARRI Service Contacts ARRI Service Contacts Arnold & Richter Cine Technik ARRI CT Limited / London GmbH & Co. Betriebs KG 2 Highbridge, Oxford Road Herbert-Bayer-Str. 10 UB8 1LX Uxbridge 80807 Munich United Kingdom Germany +44 1895 457 000 +49 89 3809 2121 Business hours: Business hours: Mo. - Page 31 ARRI Service Contacts CINEOM Broadcast DMCC. CINEOM Broadcast India Pvt. Ltd. Unit No. 2109, Jumeirah Bay Tower X2 Cluster X C-4, Goldline Business Centre Jumeirah Lakes Towers Link Rd. Malad West P.O Box 414659 400 064 Mumbai Dubai, UAE India +971 (0) 45570477 +91 (0)22 42 10 9000 Business hours:...
