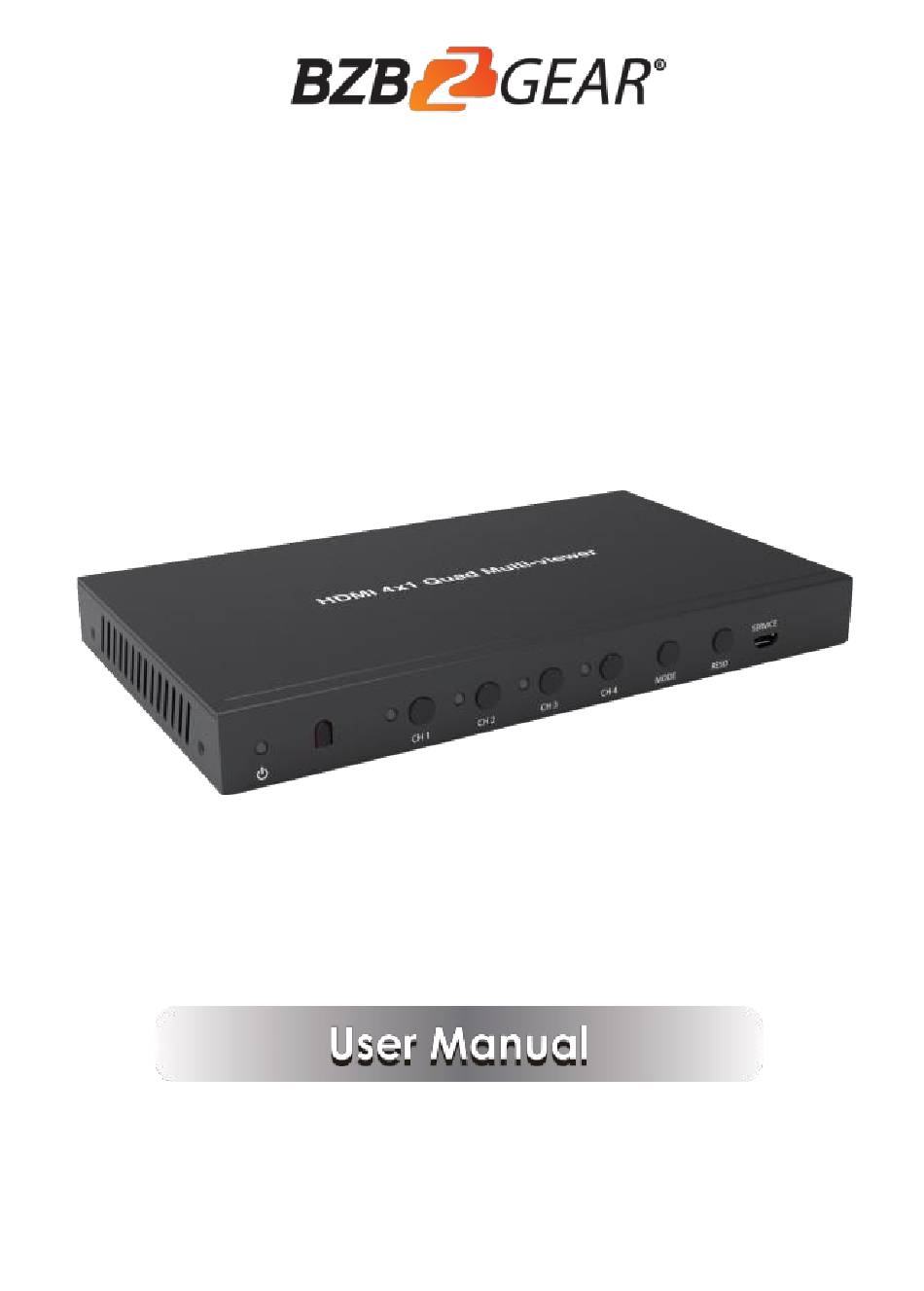

- Page 1 BG-HD-MNA-4X1 HDMI 4×1 Quad Multi-Viewer...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The BG-HD-MNA-4X1 4×1 quad multi-viewer can display four simultaneous HDMI HD input signals on one HDMI screen and one VGA screen. It features an analog audio output that can select different input sources. It has five multi-view display modes. Output resolution can be adjusted, and the maximum resolution is 920×1080@60Hz. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.4 HDCP Compliance HDCP 1.4 Video Bandwidth 4.95Gbps Video Resolutions the maximum is up to 1920×1080P@60Hz Color Depth 8-bit Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Analog Audio Formats LPCM2.0, 44.1KHz, 48KHz Human-body Model： ESD Protection ±8kV (Air-gap discharge) , ±4kV (Contact discharge) Connections... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Front Panel SERVICE CH 1 CH 2 CH 3 CH 4 MOD E RES O Number Name Function Description The LED will illuminate green when the unit is POWER LED working, red when the unit is in standby mode. IR receiver window. -
Page 6: Display Modes
VGA output port, outputting the signal that is the VGA OUTPUT same as the HDMI output port. Analog audio output port. (Note: If the HDMI output is MODE 1, the audio output follows the video content. If the HDMI output is MODE 2/3/4/5, press AUDIO OUTPUT CH1/CH2/CH3/CH4 up to 5s to select audio output or use the remote control to cyclically... -
Page 7: Remote Control
MODE 4: The quad multi-viewer divides two HD inputs with the same size and display them on one screen. The CH1, CH2 lights on panel will be on. In the CH1 window, you can press the CH1 button on panel or the Source 1 button on the IR remote to cyclically select four input sources. -
Page 8: Application Example
8. Application Example TV or Monitor Power Supply INPUT OUT PUT IN 1 IN 2 IN 3 IN 4 H D MI AUDIO DC 12 V DVD or Blu-ray Player DVD or Blu-ray Player UHDTV 2.0 Speakers... -
Page 9: Warranty
9. Warranty BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*. Taking advantage of this program is simple, just follow the steps below: 1. -
Page 10: Mission Statement
Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
