Page 1: Table Of Contents
Cleaning ................... 15 Microphone ..................15 Windscreen ..................15 Standard Accessories ............... 15 Optional Accessories ................ 15 Specifications ................... 16 Frequency Response Curves ..............17 Polar Patterns ..................17 C4000... -
Page 2: Description

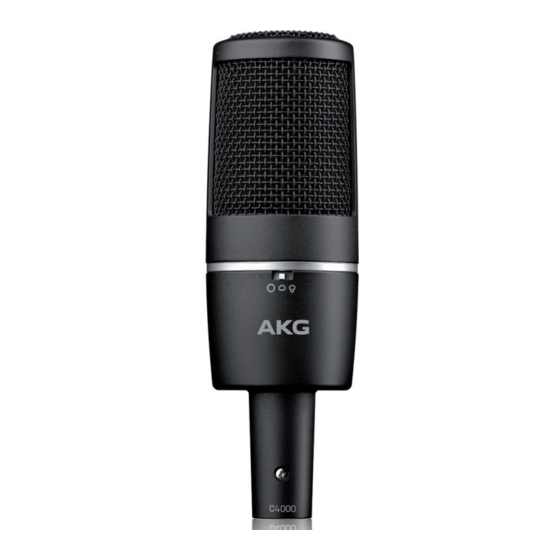

This large-diaphragm condenser microphone has been designed on the basis of experience AKG and its customers have gained worldwide over the last decades using models such as the C12, C414 B, and C3000. The C4000 uses advanced, reliable components to meet the highest professional demands and withstand even long-time, tough handling in the studio. -
Page 3: Application
The wind/pop screen causes almost no change in the frequency response of the microphone. A careful, subjective comparative listening test will be the best way to decide whether to use the windscreen or not. C4000... -
Page 4: Powering
Powering 3 Powering The C4000 operates on any phantom power source to IEC 61938. This standard specifies a positive voltage of 12, 24 or 48 VDC on both audio wires referenced to the cable shield. Alternatively, you can operate the microphone on any DC voltage between 9 and 52 V fed to the microphone via standard phantom power circuitry. - Page 5 0.5% only. If the amplifier inputs are single-ended (grounded) or have no input transformers, wire either capacitors or optional transformers into the audio lines to prevent any current leakage into the input stage. Adding Phantom Power to Unbalanced Amplifier Inputs C4000...
-
Page 6: Cleaning
Wash the foam windscreen in soap suds. Do not use the windscreen before Windscreen it has dried completely. 5 Standard Accessories shock mount W4000 foam windscreen 6 Optional Accessories For optional accessories, refer to the current AKG catalog or folder, or visit www.akg.com. Your dealer will be glad to help. C4000... -
Page 7: Specifications
*) Values for 48 V phantom power; reduce by 6 dB for 24 V and 18 dB for 12 V phantom power. This product conforms to the standards listed in the related Declaration of Conformity. To order a free copy of the Declaration of Conformity for this product, visit http://www.akg.com or contact sales@akg.com. C4000...
