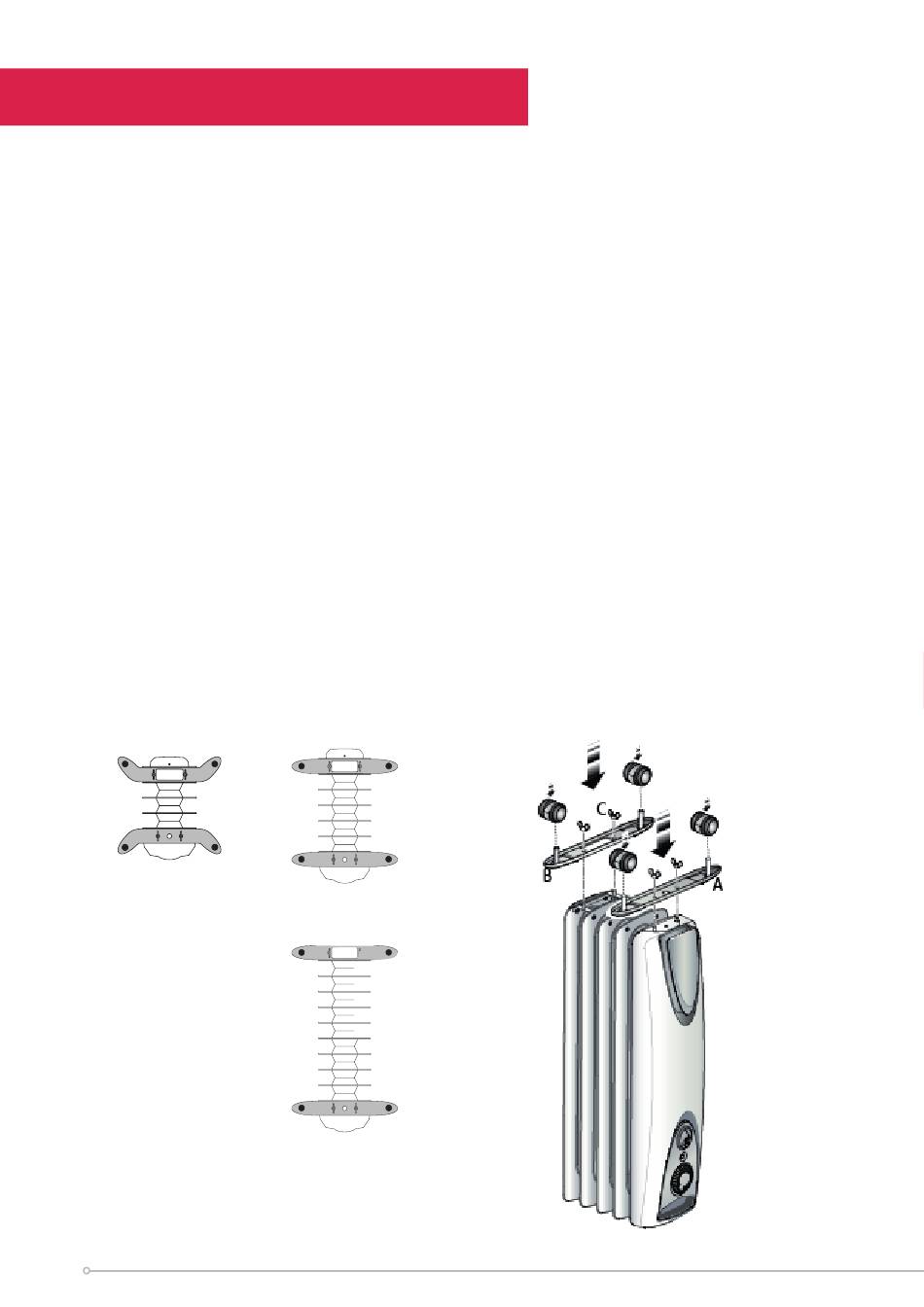

Fitting The Castors
WARNING The column heater must only be operated with the wheels and castors
fitted and in an upright position. The castors must be fitted to the control panel and
on the bracket between the last and second last fin on the opposite end, as shown
in Fig.1.
Fitting the castors
1. Remove the box containing the castor assemblies from the packaging.
2. Fit the castors to the stub axles by applying hand pressure until each castor
clicks into position - see below Fig. 2. Note that the castors are designed to be a
tight fit on the axles but will rotate in use.
3. The castors can only be fitted between the outer fins (as shown in Fig. 1).
4. Turn the heater upside down on a carpet or other soft surface to avoid damage.
Ask a second person to help with this if necessary.
WARNING: THE HEATER IS HEAVY – ENSURE THAT IT IS SUPPORTED TO
PREVENT IT FROM TOPPLING.
5. Position the castor bracket (see Fig. 2) onto the threaded pins on the control
panel. Place the winged nut 'C' on the thread and tighten it securely.
6. Repeat the process for castor bracket 'B' onto the last fin.
7. Lift the heater clear off the floor, then turn it back upright and stand it on its
castors. It is now ready for use.
Fig 1.
Fin
11 Fin
OFRC10/OFRC10TI
OFRC10BLK
OFRC15/OFRC15TI
6
B
A
A
OFRC15/OFRC15TI
OFRC15BLK
B
A
A
OFRC25/OFRC25TI
OFRC24BLK
B
3
A
B
B
5
On/O
3
Fig 2.
4
see
Table 1
