Related Manuals for Dimplex ML2TA
Summary of Contents for Dimplex ML2TA

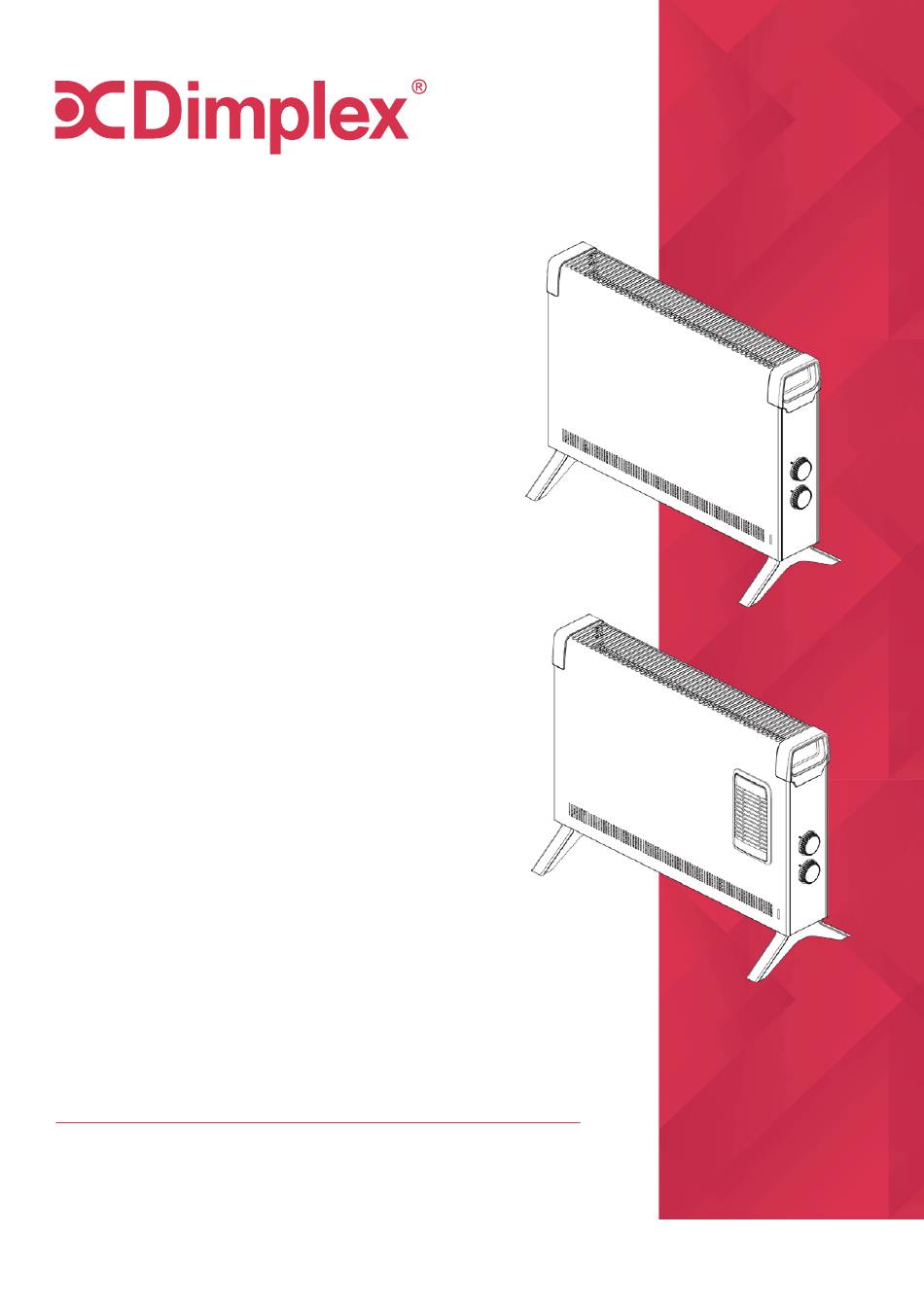

- Page 1 INSTRUCTION MANUAL 2kW Convector Heater Series Models: ML2TA, ML2TSFA, ML2TS, ML2TSF For domestic household use only. 08/55073/0 Issue 1...
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your product for the first time and keep them in a safe place.
- Page 3 extension lead or any external switching device such as a plug-in timer or remote control plug in adaptor. All heating appliances draw high current through the mains supply and any weakness in the design, connections or components in these devices can easily result in overheating of the connection points resulting in melting, distortion and even the risk of fire.
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specifications
Specifications ML2TA & ML2TS ML2TSFA & ML2TSF Model no. Power supply 230-240V~, 50Hz 2000W Rated power Heat settings Thermostat Turbo Fan Weight (net) 3.75kg 4.24kg Dimensions (w x d x h) 577 x 233 x 443mm For greater precision, please always refer to the rating label placed on the product. - Page 6 Assembly WARNING: DO NOT USE THE HEATER UNTIL THE FEET ARE FITTED CORRECTLY. WARNING: ALWAYS ENSURE THAT THE HEATER IS STOOD ON A FIRM LEVEL BASE NEAR TO, BUT NOT DIRECTLY UNDERNEATH A SUITABLE MAINS SUPPLY SOCKET. WARNING: ENSURE THAT CURTAINS AND FURNITURE ARE NOT POSITIONED CLOSE TO THE CHOSEN POSITION WARNING: PLEASE ENSURE THE MINIMUM CLEARANCE DIMENSIONS ARE MAINTAINED...
-
Page 7: Controls And Operation
Heat The heat output can be altered to suit the application, conditions and to improve the economy of operation. Switch the heat knob Switch Setting Model ML2TA/ML2TS 1200W 2000W ML2TSFA/ML2TSF 1200W 2000W... - Page 8 Controls & Operation Note: Although these units are manufactured to comply with the relevant safety standards, certain types of carpet could become discoloured by the temperatures under a portable heater. If you are concerned about this, we recommend that you contact the carpet manufacturer for guidance.
-
Page 9: Warranty
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 12 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
