ASSEMBLY INSTRUCTIONS
THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY YEARS OF SERVICE IF YOU FOLLOW
THE GUIDELINES FOR ITS SAFE ASSEMBLY AND PERIODIC MAINTENANCE AND CLEANING.
DO NOT USE ANY TOOLS OTHER THAN THOSE SHOWN.
ANY SPANNERS OR ALLEN KEYS REQUIRED ARE INCLUDED WITH THE FITTINGS KIT.
DO NOT FOR ANY REASON USE A POWER TOOL TO ASSEMBLE THIS PRODUCT.
ITS USE WILL INVALIDATE ANY CLAIM YOU MAY HAVE AND COULD MAKE THIS PRODUCT UNSAFE .
DEPENDING ON THE AMOUNT OF USE THIS PRODUCT RECEIVES IT MAY BE NECESSARY TO
TO TIGHTEN UP THE FIXINGS FROM TIME TO TIME, THIS IS COMPLETELY NORMAL FOR ANY FLATPACK
FURNITURE.
FOR CLEANING, YOU MAY USE A DAMP CLOTH (NOT WET) DO NOT USE POLISH, DETERGENT OR
CHEMICAL CLEANERS.
KELLY 4'6" BED
SEC/SH/08/22/WJ1
Page 01
Advertisement
Table of Contents
Related Manuals for Seconique KELLY 200-203-020
Summary of Contents for Seconique KELLY 200-203-020

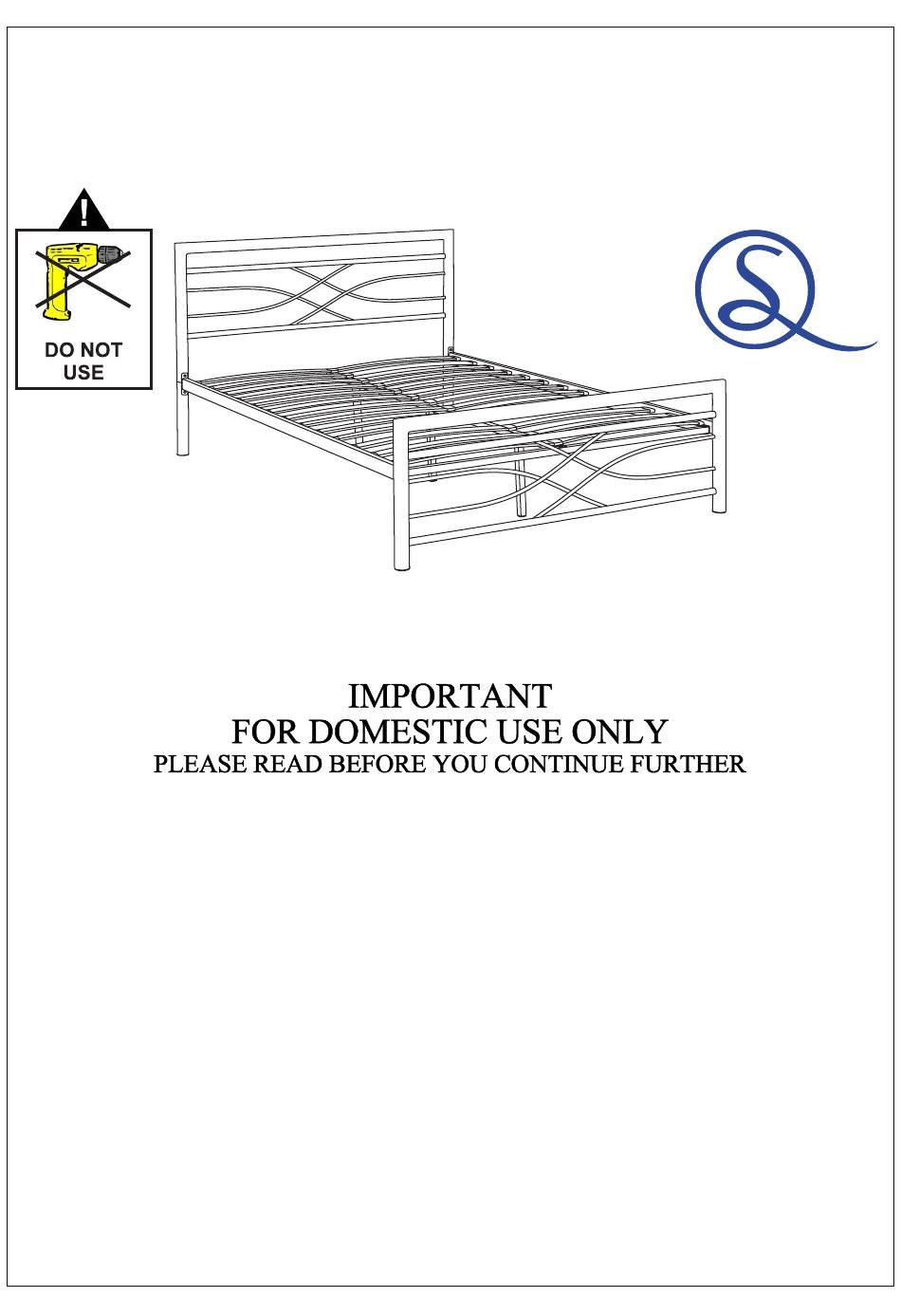

- Page 1 SEC/SH/08/22/WJ1 KELLY 4'6" BED ASSEMBLY INSTRUCTIONS THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY YEARS OF SERVICE IF YOU FOLLOW THE GUIDELINES FOR ITS SAFE ASSEMBLY AND PERIODIC MAINTENANCE AND CLEANING. DO NOT USE ANY TOOLS OTHER THAN THOSE SHOWN. ANY SPANNERS OR ALLEN KEYS REQUIRED ARE INCLUDED WITH THE FITTINGS KIT.
- Page 2 SEC/SH/08/22/WJ1 PARTS LIST Part Number Part Code Part Description Quantity Carton S200-203-020-WJ1-01 Headboard Footboard S200-203-020-WJ1-02 S200-203-020-WJ1-03 Siderail Crossbar S200-203-020-WJ1-04 S200-203-020-WJ1-05 Centre Rail Wooden Slat S200-203-020-WJ1-06 S200-203-020-WJ1-07 Centre Slat Cap Slat Cap S200-203-020-WJ1-08 S200-203-020-WJ1-09 Support Leg S200-203-020-WJ1-10 Leg Extension Page 02...
- Page 3 SEC/SH/08/22/WJ1 Part Name Carton M6 x 15MM BOLTS M6 x 45MM BOLTS M6 x 38MM BOLTS M6 INSERT NUTS METAL WASHER M4 ALLEN KEY M4 SPANNER PLEASE CHECK THAT YOU HAVE ALL THE PARTS LISTED BEFORE YOU START ASSEMBLING, IF YOU DO FIND THAT SOMETHING IS MISSING, DO NOT CONTINUE ASSEMBLY.
- Page 4 SEC/SH/08/22/WJ1 STEP 1 M6x45mm PARTS REQUIRED SIDERAIL M6x38mm CROSSBAR HARDWARE REQUIRED M6x15mm M6x15mm TOOLS REQUIRED STEP 2 M6x45mm PARTS REQUIRED HEADBOARD M6x38mm FOOTBOARD 10 - LEG EXTENSION M6x15mm HARDWARE REQUIRED M6x15mm M6x45mm TOOLS REQUIRED Page 04...
- Page 5 SEC/SH/08/22/WJ1 STEP 3 M6x45mm PARTS REQUIRED CENTRE RAIL M6x38mm SUPPORT LEG HARDWARE REQUIRED M6x15mm M6x15mm M6x38mm TOOLS REQUIRED STEP 4 PARTS REQUIRED WOODEN SLAT CENTRE SLAT CAP SLAT CAP HARDWARE REQUIRED TOOLS REQUIRED Page 05...
