NX G SYST EM KIT
QUICK SETUP AND CONFIGURATION
STOCK #
MODEL NAME
6780
NXG-MFR
6781
NXG-CNTRL
6782
NXG-PS
Re v : 12 072 2
BL ONDE R TONGUE L AB O RATO RI E S, I N C. | IS O 9001:201 5 C E RT IFI ED | W W W.B L O N D E RTO N GU E. C O M
MODULAR IP DIGITAL VIDEO PLATFORM
DESCRIP TION

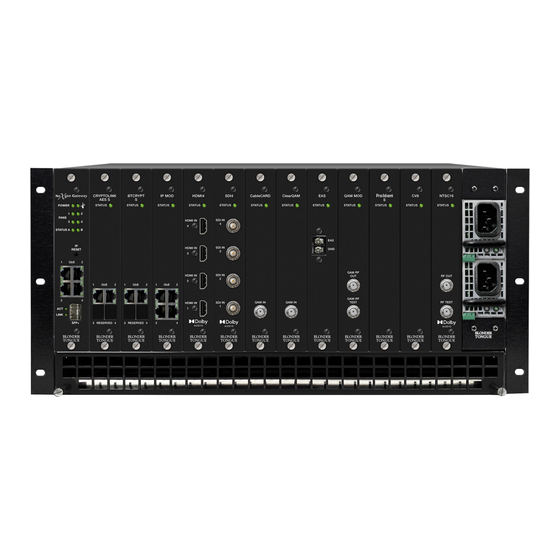

Mainframe - 5RU Chassis; 12 Module Slots; 60 Gb Capacity Backplane with
Fans & Air Filter
Master Controller Module - Controls Entire Platform
Power Supply - (2) Required for Redundancy
All Righ ts Reserv ed. Specifications s ubj ect to chang e without not ice.
All trad emar ks are propert y of their r espective owners.
QUICK GUIDE
NXG PLATFORM
P / N: 6 5 1 2 4 7 0 00 A
Advertisement
Table of Contents
Related Manuals for Blonder tongue NXG SYSTEM KIT
Summary of Contents for Blonder tongue NXG SYSTEM KIT
- Page 1 QUICK GUIDE NXG PLATFORM NX G SYST EM KIT QUICK SETUP AND CONFIGURATION MODULAR IP DIGITAL VIDEO PLATFORM STOCK # MODEL NAME DESCRIP TION Mainframe - 5RU Chassis; 12 Module Slots; 60 Gb Capacity Backplane with 6780 NXG-MFR Fans & Air Filter 6781 NXG-CNTRL Master Controller Module - Controls Entire Platform...
- Page 2 2 NXG SYSTEM Quick Guide PRODUCT INTRODUCTION The NXG System Kit is a powerful, two-way, future-proof platform that is ideal for delivering next generation video services to enterprise locations including hospitality, educational, multifamily residential, healthcare, business parks, or stadiums. NXG Platform Base - Master Controller Module, Mainframe, and Power Supplies provides: IP routing and traffic management ▶...
- Page 3 NXG SYSTEM Quick Guide STEP 1: SETTING UP THE MAINFRAME (CONTINUED) LEDs PS 2 PS 1 STEP 2: CONTROLLER & POWER SUPPLY INSTALLATION Locate the Power Supplies (sold separately) and face each power supply module in the correct position to be inserted into in the PS 1 and PS 2 slots (shown above). To properly install, the LEDs and green tab MUST be positioned towards the bottom (shown above).
- Page 4 4 NXG SYSTEM Quick Guide STEP 2: CONTROLLER & POWER SUPPLY INSTALLATION (CONTINUED) Install the appropriate input and output modules for your NXG application in any of the 12 slots. When possible space the input and output modules apart to maximize airflow. REMINDER Before NXG-CCQD-24 module installation, don’t forget to insert the CableCARDs into the module.
- Page 5 NXG SYSTEM Quick Guide STEP 4: LOGIN TO THE CONTROLLER 1” on the Master Controller. Open a An ethernet cable should be connected between your PC and “Port Web browser (Chrome or Firefox recommended) and type in http://172.16.70.1 to your web browser. You can now view and configure your NXG platform.
- Page 6 6 NXG SYSTEM Quick Guide STEP 5: BASIC CONFIGURATION (CONTINUED) Go to the “System” tab to change the System Settings. Some settings that can be configured here are Command/Control Ethernet Settings, User Interface IP Access Restriction List, SSL Key/Certificate, and IP I/O settings for the Master Controller front-panel ports.
- Page 7 RETURNING PRODUCT FOR REPAIR (OR CREDIT) A Return Material Authorization (RMA) Number is required on all products returned to Blonder Tongue, regardless if the product is being returned for repair or credit. Before returning product, please review our...
- Page 8 B L O N D E R T O N GU E L A B O R ATO R I E S One Jake Brown Road Old Bridge, NJ 08857 (800) 523-6049 S A L E S D E PA RT M E NT CUS T O M E R S E RVI C E sales@blondertongue.com custsvc@blondertongue.com...
