Wilson & Fisher DELRAY 850048 Assembly Instructions Manual

Glass table

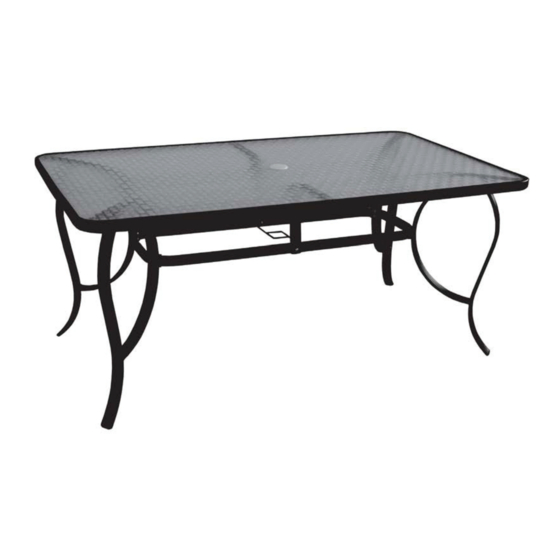

DELRAY GLASS TABLE

MODEL : 850048

MODELO: 850048

MODELE: 850048

Warranty Coverage Requirements:

1. Copy of your Original Store Receipt.

2. Pictures of the damaged parts.

3. You must know the name of your product and any corresponding item

numbers as well as the name of the store where you purchased the item.

4. Please gather all of this information BEFORE you call customer service.

WILSON & FISHER

Table of Contents

Do you have a question about the DELRAY 850048 and is the answer not in the manual?

Page 1 WILSON & FISHER ® DELRAY GLASS TABLE MODEL : 850048 MODELO: 850048 MODELE: 850048 Warranty Coverage Requirements: 1. Copy of your Original Store Receipt. 2. Pictures of the damaged parts. 3. You must know the name of your product and any corresponding item numbers as well as the name of the store where you purchased the item.
Page 3 SCREW GLASS TABLE TOP LEG FRAME WASHER LEG SUPPORT NUTS CENTER SUPPORT ALLEN WRENCH PHILIPS SCREW SCREWDRIVER WASHER SCREW WRENCH...
Page 4 Step 1: Place the table top (A) face down on the flat floor, and then firmly insert the table leg frame (B) and center support (D) into the frame of table top (A). Paso 1: Coloque la tapa de tabla (A) boca abajo sobre el piso y luego inserte firmemente la pierna marco (B) y el centro de soporte de la mesa (D) en el marco de la mesa (A).
Page 5 Step 3: Attach leg support (C) to leg frame (B) by inserting the screw (G) and washer (I) through the holes in leg frame (B). Connect center support (D) and leg support (C) by inserting washer (I) onto screw (H) and fasten with nut (J). Do not tighten completely. Repeat on the other legs. Afterward, tighten all the screws with included wrench and allen wrench.
Page 6 Do not sit or stand on the table surface. Do not use the table as a chopping surface. Do not strike the table with hard or pointed items. Careless handling or use may result in damage to the table that is not visible. Avoid scratching the surface.
