Installation and Calibration Instructions
1. Installation: Mount the SW-200B to a secure bracket off the engine. If
on-engine mounting is necessary, shock mounts are recommended. Wire
according to connection diagram on reverse. Shielded cable is
recommended. Shield should be brought to ground directly. The SW-200B
will work with most magnetic pickups provided the signal amplitude is
greater than 50 mVrms and less than 70 Vrms. Mount pickup according
to manufacturer's instructions.
2. Calibration: Determine the setpoint frequencies from an RPM value
using the following formula:
A. Verify the current calibration: use a signal generator. Connect it to the
SW-200B magnetic pickup input.
B. Confirm the DIP switches are properly set for the frequency range and
overspeed relay logic desired. (See chart below.)
C. Set the signal generator output to at least 10% below the lowest setpoint.
Slowly increase the frequency. Using an ohmmeter across the relay
contacts, determine the frequency at which each relay changes state.
a. Change a setpoint: remove the appropriate access hole screw to reach
the setpoint's relay adjustment trim pot.
b. Set the signal generator to the frequency at which the relay should change
state. Connect it to the SW-200B magnetic pickup input.
c. Using a small, flat screwdriver, adjust the trim pot for the appropriate
relay until the relay changes state.
d. Decrease the frequency, then slowly increase it to verify that the relay
trips at the appropriate point. Replace the access hole screw .
Switches 1 & 2 set the
full-scale frequency range
DIP
DIP
SW 1
SW 2
OFF
OFF
OFF
ON
ON
ON
DYNALCO CONTROLS RESERVES THE RIGHT TO CHANGE THESE SPECIFICATIONS WITHOUT NOTICE.
Azonix-Dynalco, 3690 N.W. 53rd Street, For t Lauderdale,
( 954 ) 739- 4300 • Fax ( 954 ) 484-3376 •
© 2002 Azonix-Dynalco

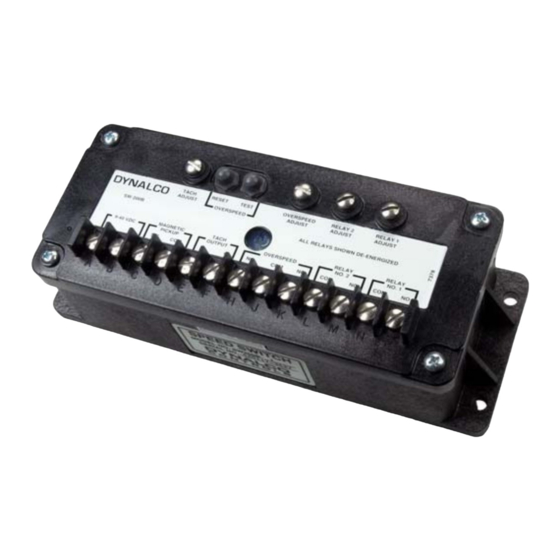

SW-200B Speed Switch
RPM x No. of Teeth (Holes)
Frequency =
DIP SWITCH SETTINGS
Full-Scale
Range
=
0 – 11,200 Hz
=
0 – 5,000 Hz
=
0 – 1,000 Hz
SW-200B is a trademark of Dynalco Controls
60
Switches 3 & 4 set the
overspeed relay logic
DIP
DIP
SW 3
SW 4
ON
N/A
OFF
N/A
N/A
ON
N/A
OFF
mailbox@dynalco.com
•
Relay
Logic
Energizes
=
Above
Setpoint
De-Energize
=
Above
Setpoint
=
Latches
Does not
=
Latch
U.S.A.
145F-12044, Rev 0
