If
this is the first-time use of PacketExpert™ 10GX unit, then it is recommended to follow all the steps explained in
PacketExpert-10GX-Quick-Install-Guide before proceeding with the steps below.
For PacketExpert™ 10GX functional verification, basic "All Port BERT" test can be performed using a single PacketExpert™
10GX unit.
Quick Verification
"All Port BERT" test scenario can be demonstrated on four Electrical or Optical 1G ports by directly connecting Port 1 to 2
through Ethernet cable (for Electrical Interface test). Connect Port 3 to Port 4 through Electrical SFPs and Ethernet cable (for
Electrical interface test).
For optical interface, directly connect Port 1 to 2 and Port 3 to 4 through SFP and Optical cable (for Optical interface test).
OR "All Port BERT" test scenario can be demonstrated on 10G ports and 2.5G Ports by directly connecting Port 1 to 2 through
SFP and Optical cable (for Optical interface test).
Step 1: Connect the cables
Perform Test on 10G/2.5G Optical Interface
Note:
•
Optical Interface test is possible on 10G/2.5G Port 1 and Port 2.
•

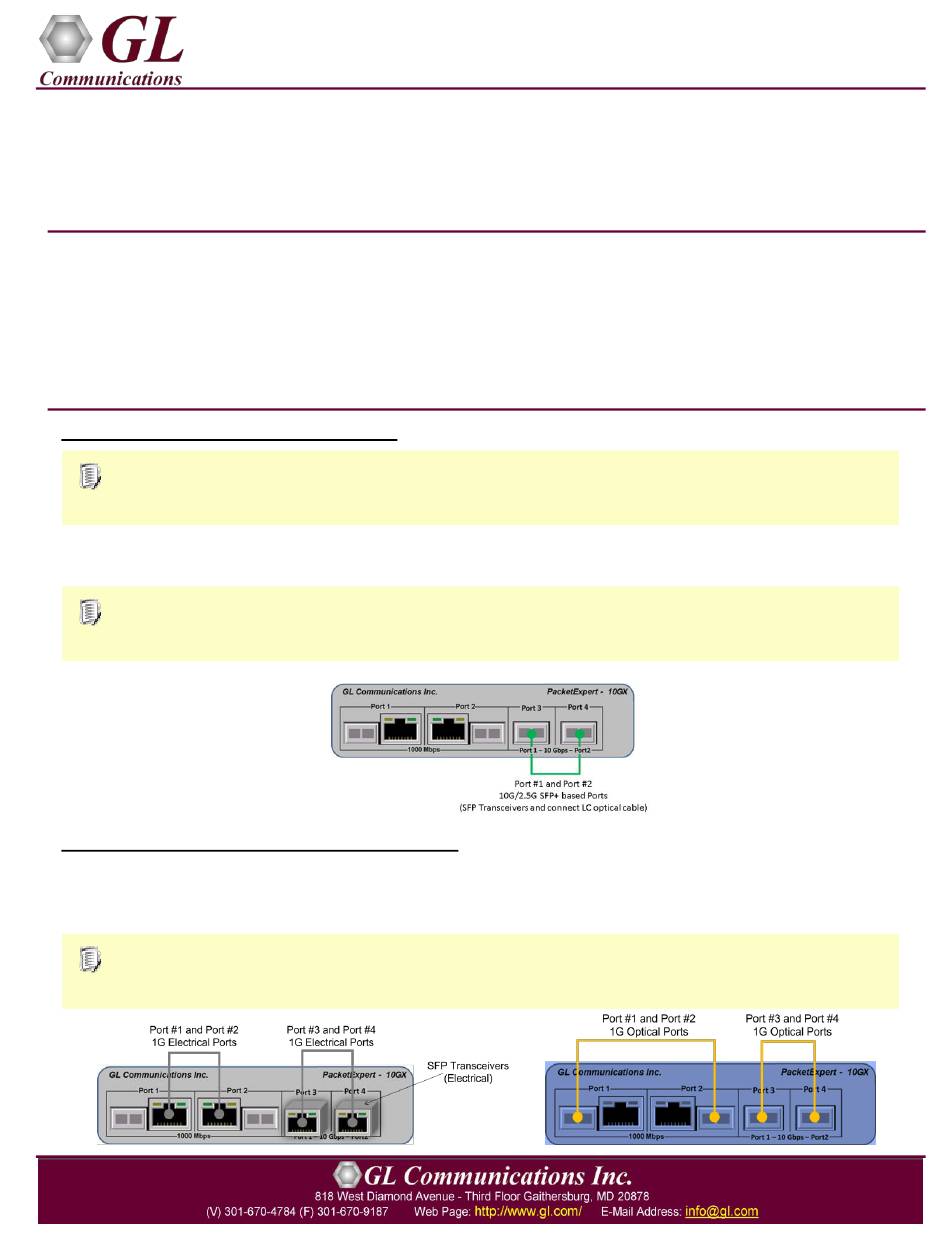

For 10G/2.5G Optical Interface Type, plug-in SFP Transceivers to the optical ports and connect LC optical cable to 10G/2.5G:
Ports 1 & 2, (refer to figure).
Note:
•
Make sure SFP is properly locked, and the Optical cable is properly plugged in.
Perform Test on 1G (Electrical or Optical Interface)
•
For 1G Electrical Interface type, cross-connect 1G: Port 1 to 2 and 1G: Port3 to 4 using Ethernet cable. Plug-in Electrical SFP
Transceivers to Port 3 and Port 4 as shown below.
•
For 1G Optical Interface type, plug-in SFP Transceivers to the optical ports and connect LC optical cable to 1G: Ports 1 and 2, and
Ports 3 and 4 (refer to figure).
Note:
•
Make sure SFP is properly locked, and the Optical cable is properly plugged in.
PacketExpert™ 10GX Bert (PXN100)
Page 1
Quick Verification Guide
Advertisement
Table of Contents
Related Manuals for GL Communications PacketExpert 10GX Bert
Summary of Contents for GL Communications PacketExpert 10GX Bert
- Page 1 PacketExpert™ 10GX Bert (PXN100) Quick Verification Guide this is the first-time use of PacketExpert™ 10GX unit, then it is recommended to follow all the steps explained in PacketExpert-10GX-Quick-Install-Guide before proceeding with the steps below. For PacketExpert™ 10GX functional verification, basic “All Port BERT” test can be performed using a single PacketExpert™ 10GX unit.
- Page 2 PacketExpert™ 10GX Bert (PXN100) Quick Verification Guide Step2: Launch PacketExpert 10GX Application • Click on the PacketExpert 10GX shortcut icon created on the desktop and launch PacketExpert 10GX application as shown below. Note: • Ensure that the additional Warranty License is installed before invoking the application, else the Warranty Error message is prompted as shown.
- Page 3 PacketExpert™ 10GX Bert (PXN100) Quick Verification Guide Step3: Verify Links To verify PacketExpert 10GX basic functionality on 10G ports, run a BERT test between 10G: Ports 1 and 2 (this means the destination for 10G Port1 is 10G Port2 and vice versa) •...
- Page 4 PacketExpert™ 10GX Bert (PXN100) Quick Verification Guide For 1G: Port1, Port2, Port3, Port4 • In the LHS tree, under Port 1 → Bert, double click Tx Config. The Tx Config window is displayed in one of the RHS panes. • Go to MAC tab.
- Page 5 ➢ Out of Sequence Count = 0 ➢ Out of Sequence seconds = 0 Repeat this step for 10G: Port 2 and verify correct results for both the ports. If any port shows errors, contact GL Communications Step7: Stop Test •...
