If this is your First-Time-Use of PacketExpert™ 10G unit, then we recommend you to follow all the steps explained
in PacketExpert-10G-Quick-Install-Guide before proceeding with the steps below.
For PacketExpert™ 10G functional verification, basic "All Port BERT" test can be performed using a single
PacketExpert™ 10G unit.
"All Port BERT" test scenario can be demonstrated on 1G ports by directly connecting Port 1 to 2 through Ethernet
cable (for Electrical Interface test)
OR
"All Port BERT" test scenario can be demonstrated on 10G ports by directly connecting Port 1 to 2 through SFP
and Optical cable (for Optical interface test).
Transceivers
Step1: Connect the cables

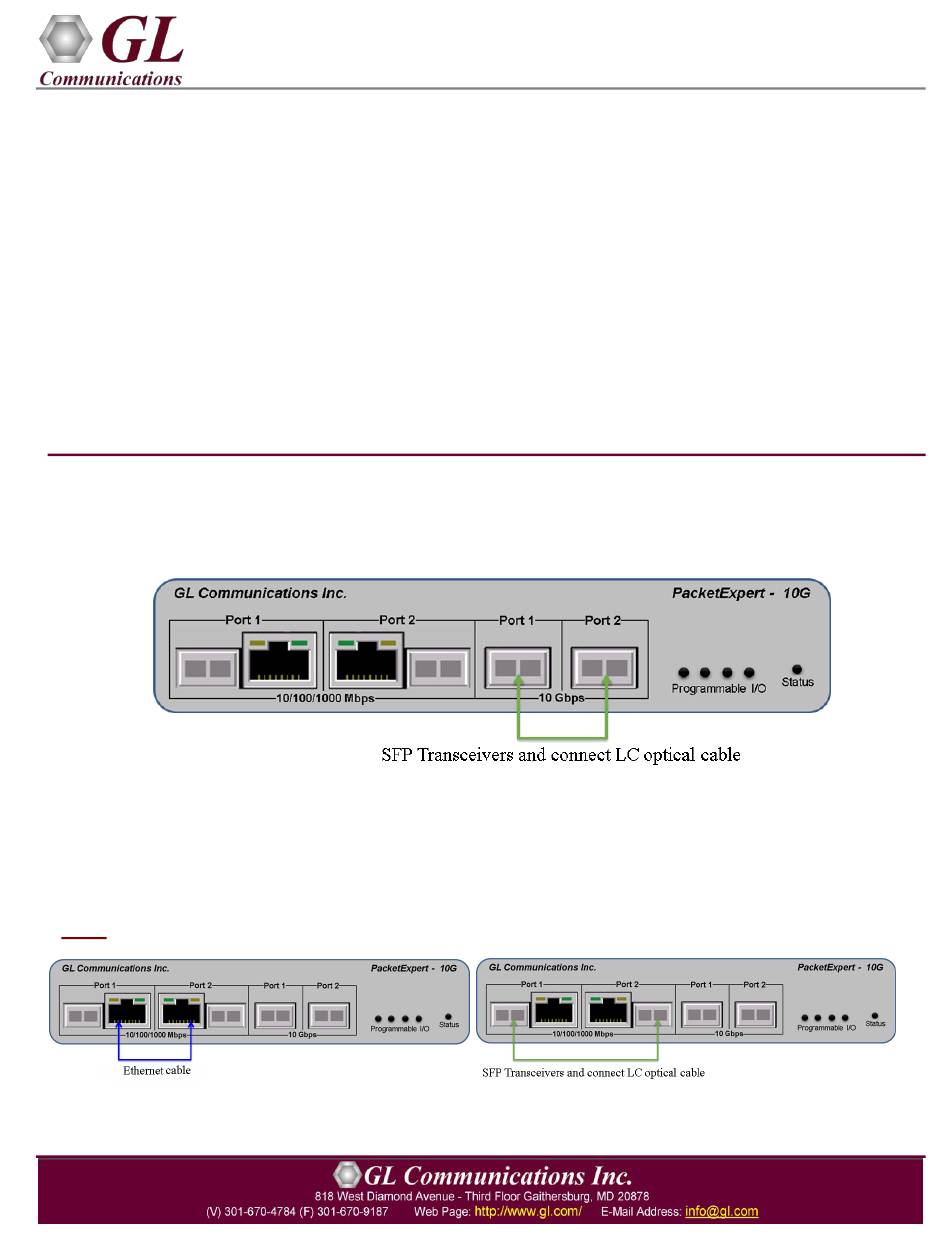

Perform Test on 10G Optical Interface (Port 1 and Port 2).
•
For 10G Optical Interface Type, plug-in SFP Transceivers to the optical ports and connect Port 1 & Port 2 using LC optical cable.
(refer to the below figure).
•
Note: Make sure that the SFP is properly locked and the optical cable is properly plugged-in.
Perform Test on 1G (Electrical or Optical Interface)
•
For 1G Electrical Interface type, cross-connect 1G: Port 1 to 2 using Ethernet cable as shown in the figure below.
•
For 1G Optical Interface type, plug-in SFP Transceivers to the optical ports and connect LC optical cable to 1G: Ports 1 & 2, (refer
to figure).
Note:
Make sure that SFP is properly locked and the optical cable is properly plugged-in.
PacketExpert™ 10G (PXG100)
Page 1
Quick Verification Guide
Advertisement
Table of Contents
Related Manuals for GL Communications PacketExpert 10G
Summary of Contents for GL Communications PacketExpert 10G
- Page 1 PacketExpert™ 10G (PXG100) Quick Verification Guide If this is your First-Time-Use of PacketExpert™ 10G unit, then we recommend you to follow all the steps explained in PacketExpert-10G-Quick-Install-Guide before proceeding with the steps below. For PacketExpert™ 10G functional verification, basic “All Port BERT” test can be performed using a single PacketExpert™...
- Page 2 (GLSupportWarrantyLicenseInstaller_x86.exe) are not installed as explained in the and also confirm that PXG100 is listed in Warranty Application List. If the warranty licenses are already installed and are expired, then please contact GL Communications to renew licenses. • Click on Launch 10G option, to invoke the application with 10G ports or click on Launch 1G option, to invoke the application with 1G ports.
- Page 3 ➢ The above steps should get the link UP. If the problem still persists, contact GL Communications Inc. Step4: Configure MAC Addresses Each port should have the destination MAC addresses configured correctly.
- Page 4 PacketExpert™ 10G (PXG100) Quick Verification Guide Step5: Start test • Hold the Control key of the keyboard and from the LHS tree, select Bert using mouse under Port 1, and Port 2 tree simultaneously. • Click Start.(refer to figure) Step6: Verify Results Follow the steps below to verify the Results : •...
- Page 5 PacketExpert™ 10G (PXG100) Quick Verification Guide Step7: Stop test • To stop the test after verifying the results, hold the Control key of the keyboard and from the LHS tree, select Bert using mouse under Port 1, and Port 2 tree simultaneously. Page 5...
