PacketExpert™ SA
(PXE104, PXE112, PXE124)
Quick Install Guide
For the purchased PacketExpert™ SA (4/ 12/ 24 ports) product, you will receive a network appliance with all
the necessary PC interfaces, Operating System, and PacketExpert™ devices. The appliance also includes
required PacketExpert™ software, and licenses pre-installed. And therefore, you will need to only plug-in the
monitor, and connect the network appliance to the power outlet.

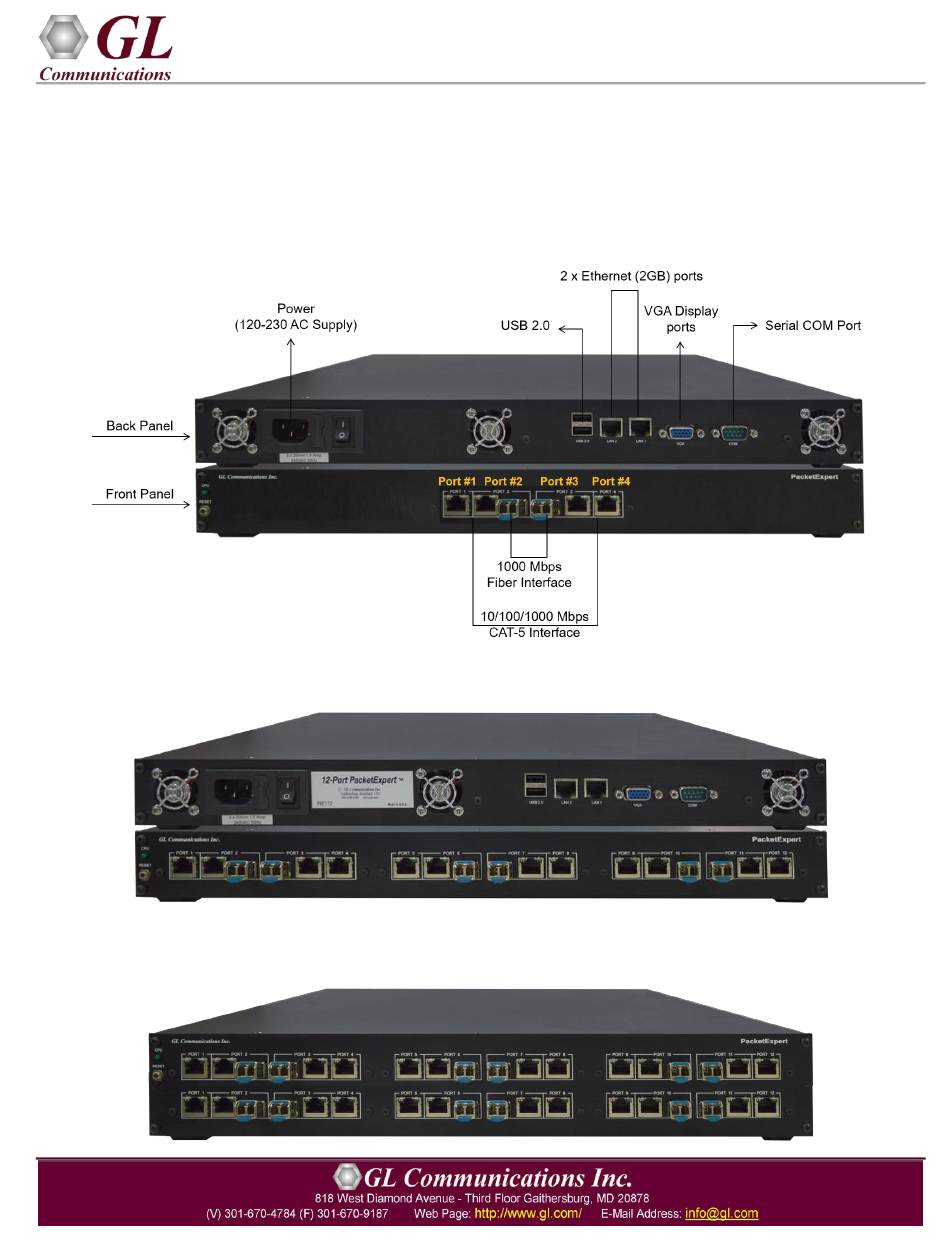

PacketExpert SA (PXE104) is a 4-Port PacketExpert™ w/ Embedded Single Board Computer (SBC). SBC Specs: Intel Atom CPU,
4GB RAM, Windows 7 (32 bit), MSATA SSD, 2 USB Ports. 19" 1U Rackmount Enclosure.

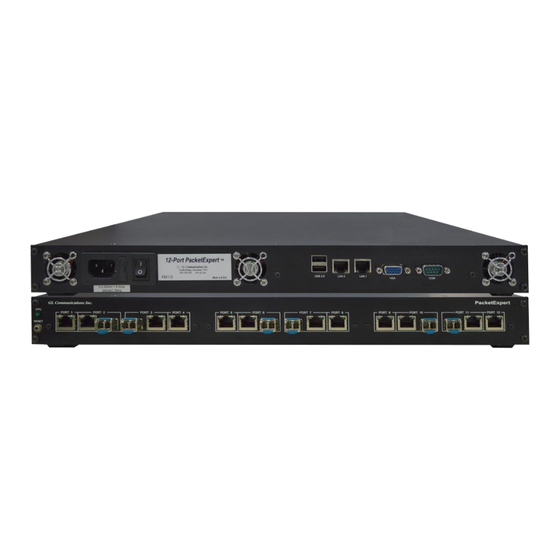

PacketExpert™ SA (PXE112) is a 12-Port PacketExpert™ w/ Embedded Single Board Computer (SBC). SBC Specs: Intel Atom CPU,
4GB RAM, Windows 7 (32 bit), MSATA SSD, 2 USB Ports. 19" 1U Rackmount Enclosure. (If options, then x 3).
PacketExpert SA (PXE124) is a 24-Port PacketExpert™ w/ Embedded Single Board Computer (SBC). SBC Specs: Intel Atom CPU,
4GB RAM, Windows 7 (32 bit), MSATA SSD, 2 USB Ports. 19" 2U Rackmount Enclosure. (If options, then x 6).
Page 1
Advertisement
Table of Contents
Related Manuals for GL Communications PacketExpert SA PXE104
Summary of Contents for GL Communications PacketExpert SA PXE104
- Page 1 PacketExpert™ SA (PXE104, PXE112, PXE124) Quick Install Guide For the purchased PacketExpert™ SA (4/ 12/ 24 ports) product, you will receive a network appliance with all the necessary PC interfaces, Operating System, and PacketExpert™ devices. The appliance also includes required PacketExpert™ software, and licenses pre-installed. And therefore, you will need to only plug-in the monitor, and connect the network appliance to the power outlet.
- Page 2 Connect the Monitor to the PacketExpert™ SA appliance after powering on the unit. • Plug-in the USB installation stick (pen drive) provided with the shipment package by GL Communications. • From the USB installation stick (pen drive), navigate to folder \PXE100-PXE104-PXE112-PXE124-IPN110-PacketExpert\ PXE104-PXE112- PXE124-PacketExpert-Software.
- Page 3 ➢ Navigate to the PacketExpert™ 1G installation folder- for example, “C:\Program Files (x86)\GL CommunicationsInc\PacketExpert\” or “C:\Program Files\GL CommunicationsInc\PacketExpert\”. Select DriverFiles folder under it, and click OK. Follow the on-screen instructions to complete the driver installation. • For further queries, please contact GL Communications Inc at info@gl.com. Page 3...
