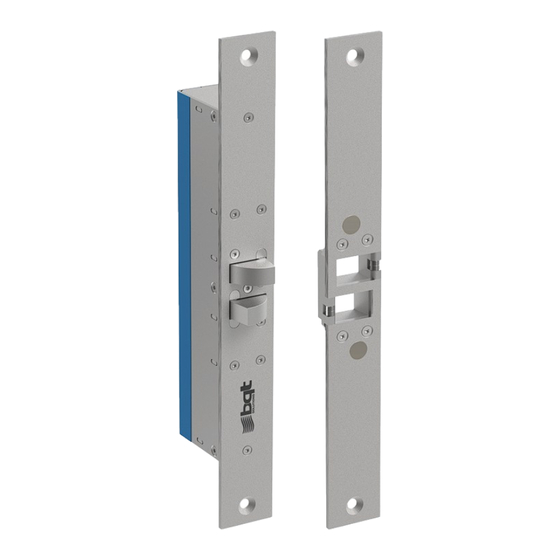

- Page 1 YD30D Cobalt Double Sideload Lock Installation and Operating Instructions DN 01002/001 - 01/2023...
-
Page 2: Table Of Contents
Table of Contents Document Information Contents and Purpose Target Group Safety and Compliance Safety Information Regulatory Compliance Information Product Information Product Description Package Contents Technical Data Product Dimensions Lock Dimensions Strike Dimensions Housing Dimensions (Available Separately) Dress Plate Dimensions (Available Separately) Fitting Tab Dimensions (Available Separately) Pre-Installation Assessment Mounting Assessment... -
Page 3: Document Information
Document Information Contents and Purpose This document describes installation, connection, operation, and maintenance of the lock YD30D. Read the document carefully and observe the instructions it contains. They contain important information for reliable installation and trouble-free operation. Target Group Target group of these instructions are: •... -
Page 4: Safety And Compliance
Safety and Compliance Safety Information WARNING • Live parts inside. • The handling and installation of this device is recommended for a professional. • Use of an unsuitable power supply unit may cause product failure or injury. • Do not remove the cover plates or face plate. •... -
Page 5: Regulatory Compliance Information
Regulatory Compliance Information This product is in compliance with the CE Directives including Electomagnetic Compatibility (EMC) Directive, Restriction of the use of certain hazardous substances (RoHS) Directive, and Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) Regulation. EU Declaration of Conformity is available at www.bqtsolutions.com. This product is in compliance with the United Kingdom (UK) Legislation including the Electromagnetic Compatibility Regulation 2016, and the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. - Page 6 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
-
Page 7: Product Information
The bolt pins operate on a cam action which enables each bolt pin to pull a door into place. In practice as the door closes it may come to rest in a position that is not fully closed. The YD30D senses when the door is within 8mm (5/16 inch) of being fully closed in either direction and activates the bolt pin. -
Page 8: Package Contents
Package Contents 1x Lock 1x Strike Plate 4x 10G self-tapping screws 1x 300mm 7-way wire loom... -
Page 9: Technical Data
Technical Data Materials Bolt Stainless Steel 17-4PH Lock / Strike Plate Stainless Steel 304 Mechanical Bolt Extension 13mm Door Gap max. 6mm (1/4 inch) Misalignment Correction max. 8mm (5/16 inch) Cycle Life 1,000,000 cycles Holding Force 10,000N (2,250 lbf) (factory tested) Side Load Release 6,000N (1,350 lbf) (factory tested) Locking Time... -
Page 10: Product Dimensions
Product Dimensions Lock Dimensions The dimensions shown are approximate and subject to change without prior notice. 183mm 7.205in 47mm 1.854in 255mm 10.039in 0.118in 30mm 1.181in 10mm 235mm 10mm 0.394in 9.252in 0.394in... -
Page 11: Strike Dimensions
Strike Dimensions The dimensions shown are approximate and subject to change without prior notice. 100mm 55mm 14mm 3.937in 2.165in 0.551in 255mm 10.039in 0.118in 30mm 1.181in 10mm 235mm 10mm 0.394in 9.252in 0.394in... -
Page 12: Housing Dimensions (Available Separately)
Housing Dimensions (Available Separately) The dimensions shown are approximate and subject to change without prior notice. 34mm 1.346in 220mm 20mm 8.661in 0.787in 56mm 259mm 2.189in 10.205in Dress Plate Dimensions (Available Separately) 260mm 58mm 10.236in 2.283in... -
Page 13: Fitting Tab Dimensions (Available Separately)
Fitting Tab Dimensions (Available Separately) The dimensions shown are approximate and subject to change without prior notice. 20mm 0.787in M5x0.8 Thread 38mm 24mm 1.476in 0.945in 0.157in... -
Page 14: Pre-Installation Assessment
The YD30D can be installed vertically or horizontally but is not designed to be mounted in a floor cavity firing upwards or in a wet environment. -
Page 15: Wiring Assessment
YD30D will lock or remain locked in the event of power loss. The failure mode of the YD30D is factory set as Fail Safe. Before the lock is installed this can be changed to Fail Secure by repositioning the switch located at the end of the product. -
Page 16: Mounting
Mounting Mortice Installation (Solid Wood) 1. Cutting the mortice Referring to the product dimension drawings, a mortice is cut into the door frame to fit the lock and a mortice is cut into the door leaf to fit the strike. Wooden doors and frames require full mortices with space made behind the lock body to accommodate the wire connections. -
Page 17: Mortice Installation (Metal Extrusion)
Mortice Installation (Metal Extrusion) 1. Cutting the mortice Referring to the product dimension drawings, a mortice is cut into the door frame to fit the lock and a mortice is cut into the door leaf to fit the strike. Metal doors and frames, being hollow, often only require a single rectangle cut-out to accommodate the lock face plate or strike plate. -
Page 18: Surface Mounting Installation (Solid Wood)
Surface Mounting Installation (Solid Wood) 1. Preparing the mounting surface Install two 10Gx1” self-tapping screws (included with housing) in the mounting surface, as per the product dimension drawings they should be 220mm apart, 20mm from the surface edge. 2. Preparing the housing An 8mm hole should be drilled through the housing wall at the position chosen by the installer for the wiring to enter. -
Page 19: Surface Mounting Installation (Glass)
Surface Mounting Installation (Glass) 1. Fitting the housing Clean the glass surface with isopropyl alcohol and peel the protective layer from the double sided tape of the housing. Position the housing flush with the edge of the glass, and press down to adhere tape to surface. -
Page 20: Wiring
Wiring Wiring Guide The YD30D is supplied with a 7-way wire loom that plugs directly into the lock. The wires are colour coded as per table below, with the power and control wires being essential connections and the four monitor connections being optional. -
Page 21: Operating Mode
BLUE wire and the door is closed. In the event of a power failure, the YD30D will lock, or remain locked, if the door is closed. -
Page 22: Maintenance
Maintenance Maintenance and Cleaning The lock has been factory lubricated for life and is maintenance free. The use of other lubricants is not permitted and will void the warranty. This lock contains electromechanical and electronic components that are subject to wear and tear depending on use and on-site installation conditions.
