PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER
PROGRAMMING MANUAL FOR AC250-02 UNDER PLASTER SWITCH WITH RADIO RECEIVER
1. TECHNICAL SPECIFICATIONS
Power supply:
Frequency:
Operating temperature:
Protection degree:
Average range:
Works exclusively with motors without built-in radio control.
Works with all AC series transmitters included in the ALUPROF S.A. offer.
UP To 20 transmitters can be programed to one motor Each next transmitter will overwrite the first one,.
Company reserves the tolerance of catalog data due the different conditions usage.

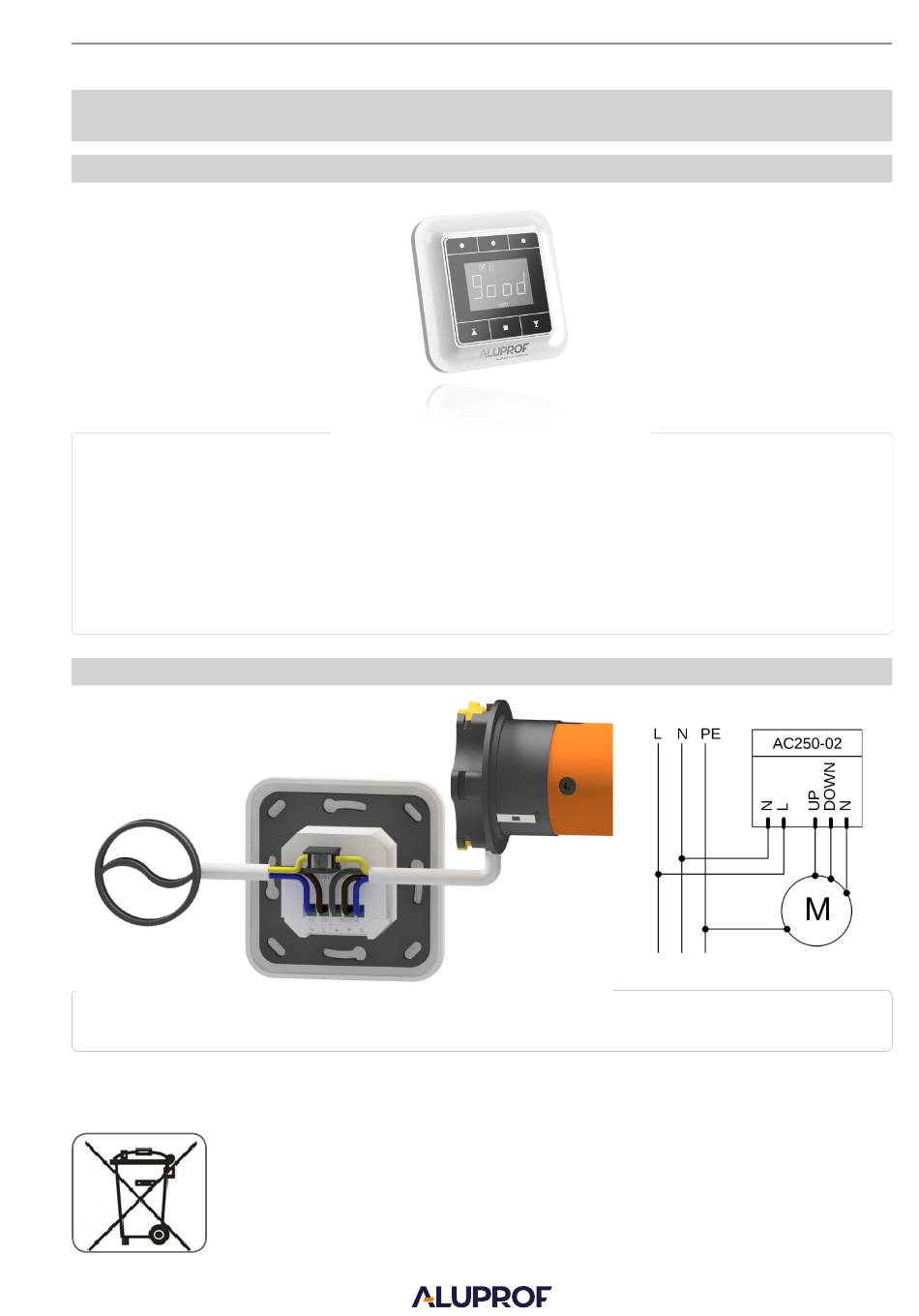

2. ILLUSTRATIVE SWITCH CONNECTION
230V / 50Hz
- Installation of the switch should be carried out by authorized persons (e.g. ECS authorisations to operate electrical devices up to 1 kV).
- The switch should be powered by a separate circuit and protected by a quick fuse for example: circuit breaker type B10.
In accordance with the provisions of the Directive of the European Parliament and of the Council 2012/19 / EU of 4 July 2012 on waste electrical and
electronic equipment (WEEE), it is prohibited to place of used equipment together with other wastes, marked with crossed out wheeled bin symbol.
The users are obliged to transfer their used equipment to a designated collection point for proper processing. The marking means, at the same time,
that the equipment was put on the market after 13 August 2005. These legal obligations have been introduced to reduce the amount of waste
generated from waste electrical and electronic equipment and to ensure an appropriate level of collection, recovery and recycling. The equipment
does not contain any dangerous components, which would have any particularly negative impact on the environment and human health.
We reserve the right to any technical change.
Valid on 2021.05.27
230 VAC / 50 Hz
433.92 MHz
~ -20°C - ~ +55°C
IP30
80 meters (in open space), 20 meters (inside buildings)
NOTE
1
