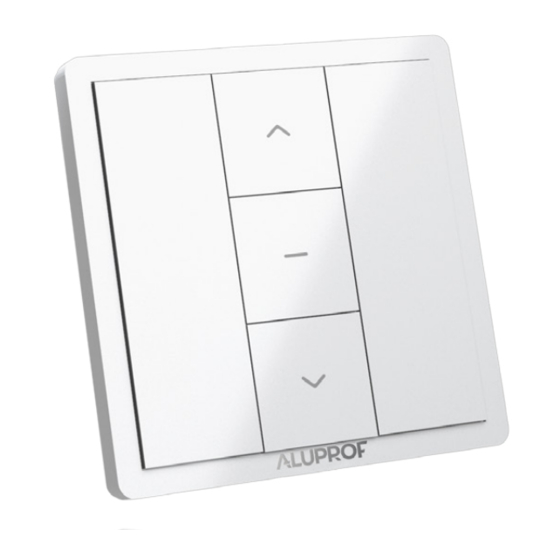

PROGRAMMING MANUAL FOR UNDER PLASTER SWITCH WITH RADIO RECEIVER DC1690
PROGRAMMING MANUAL FOR UNDER PLASTER SWITCH WITH RADIO RECEIVER DC1690
1. TECHNICAL SPECIFICATIONS
Power supply:
Frequency:
Operating temperature:
Average range:
Applied for max 50 Nm tubular motor
Works exclusively with motors without built-in radio control.
Works with all DC series transmitters included in the ALUPROF S.A. offer.
Possibility to program up to 20 transmitters, Each next transmitter will erase the first one.
Company reserves the tolerance of catalog data due the different conditions usage.
2. ILLUSTRATIVE SWITCH CONNECTION
230V / 50Hz
- Installation of the switch should be carried out by authorized persons (e.g. ECS authorisations to operate electrical devices up to 1 kV).
- The switch should be powered by a separate circuit and protected by a quick fuse for example: circuit breaker type B10.
- The switch is designed for use in dry rooms and should not be exposed to direct weather conditions.
In accordance with the provisions of the Directive of the European Parliament and of the Council 2012/19 / EU of 4 July 2012
on waste electrical and electronic equipment (WEEE), it is prohibited to place of used equipment together with other wastes,
marked with crossed out wheeled bin symbol. The users are obliged to transfer their used equipment to a designated collection
point for proper processing. The marking means, at the same time, that the equipment was put on the market after 13 August
2005. These legal obligations have been introduced to reduce the amount of waste generated from waste electrical and
electronic equipment and to ensure an appropriate level of collection, recovery and recycling. The equipment does not contain
any dangerous components, which would have any particularly negative impact on the environment and human health.
We reserve the right to any technical change.
Valid on 2022.02.09
230 VAC / 50 Hz
433.92 MHz
~ -10°C - ~ +55°C
200 meters (in open space), 35 meters (inside buildings)
