SolarMax iE Series Installation Manual

iE Series LED ROADWAY LIGHTING
INSTALLATION INSTRUCTION GUIDE
• To avoid the possibility of electric shock, turn off power supply before installation/servicing.
• Before closing cover of fixture, make sure all wires are inside fixture housing to avoid pinching wires.
• Fixture must be installed in accordance with NEC or local electrical codes by qualified technician.
• For protection, technician should always wear protective goggles and gloves during the installation and maintenance.
• SolarMax LED is not responsible for any damages caused by parts/components that are not supplied by SolarMax LED.
1

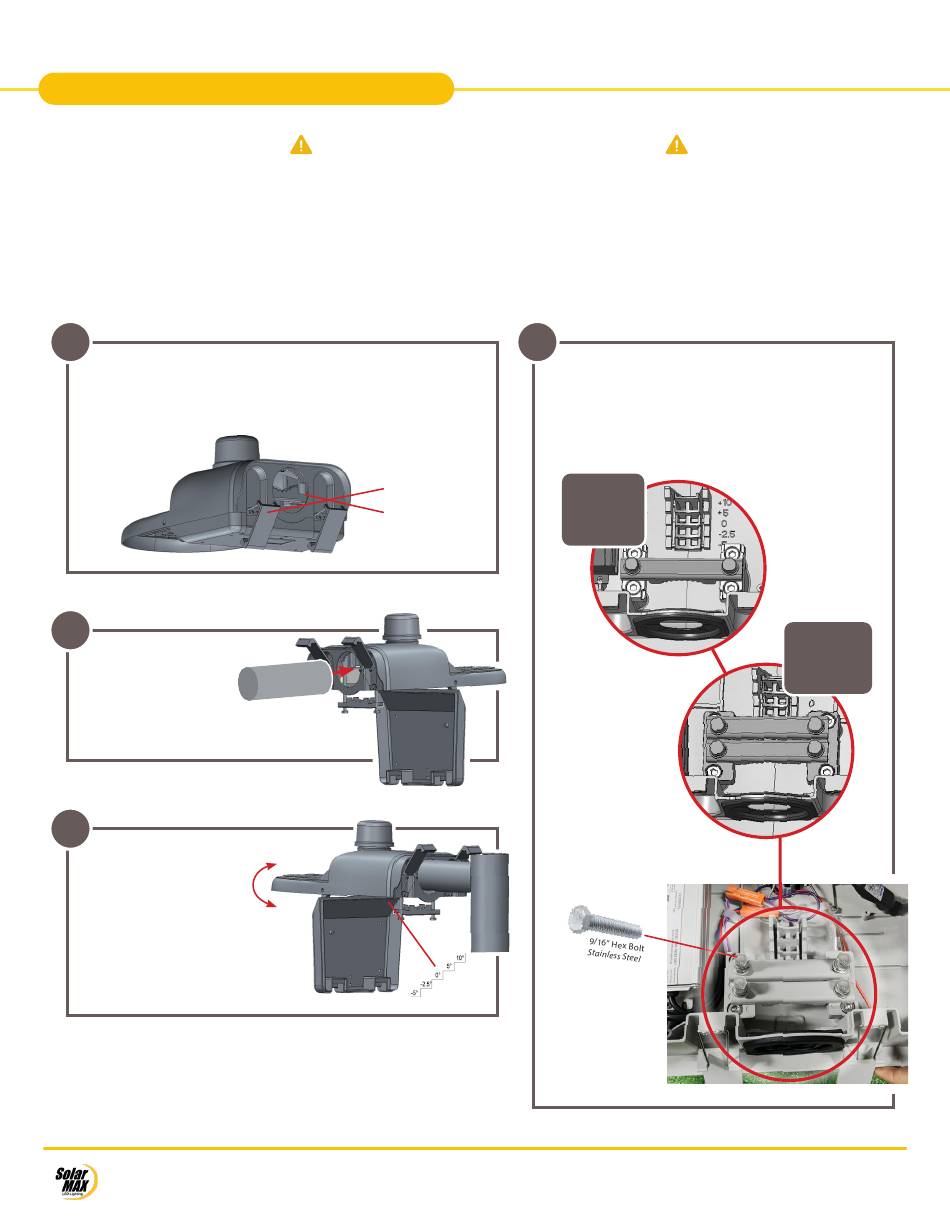

STEP 1

Pull latches to open the access panel; keep the rubber gasket on the
luminaire to stop dust, water and bird(s) from entering the fixture.
2

STEP 2

Slide the fixture
onto the tenon
(1-5/8" to 2-3/8" O.D.).
3

STEP 3

Place the luminaire
on the selected tilting
steps (-5° to +10°). Use the
luminaire bubble level as
an adjustment reference.
www.solarmaxled.com
led@solarmaxtech.com
T: 951-300-0788 ■ F: 909-595-7388
3080 12th St., Riverside, CA 92507

IMPORTANT SAFEGUARDS

Read these instructions completely and carefully before proceeding
with installation or service maintenance of this product:
Latches
Rubber Gasket
-5° to +10°
4
ST E P 4
Tighten 2 or 4 mounting bolts with torque value at
9 to 11 Nm/ 6 to 8 ft-lb (@2-3/8" O.D. tenon).
MODELS:
MODELS:
SMX-17WiE to
SMX-17WiE to
SMX-52WiE
SMX-52WiE
SMX-53WiE to
SMX-53WiE to
SMX-105WiE
SMX-105WiE
1
MODELS:
MODELS:
SMX-107WiE to
SMX-107WiE to
SMX-166WiE
SMX-166WiE
SMX-168WiE to
SMX-168WiE to
SMX-260WiE
SMX-260WiE
© SolarMax LED, Inc. 2022. All rights reserved.
Spec Sheet is subject to change without notice.
Rev. date: 2023-01-05
