SolarMax OT Series Installation Instructions Manual

Read these instructions completely and carefully. Save these instructions for future use.
Before proceeding with installation or service maintenance of this product:
• To avoid the possibility of electric shock, turn o power supply before installation or servicing.
Installation and servicing should be performed by quali ed technician.
• Before closing cover of xture, make sure all wires are inside xture housing to avoid pinching
wires.
• Fixture must be installed in accordance with NEC or local electrical codes.
• For protection, install/service technician should always wear protective goggles and gloves
during the installation and maintenance.
• SolarMax LED is not responsible for any damages caused by parts/components that are not
supplied by SolarMax LED.

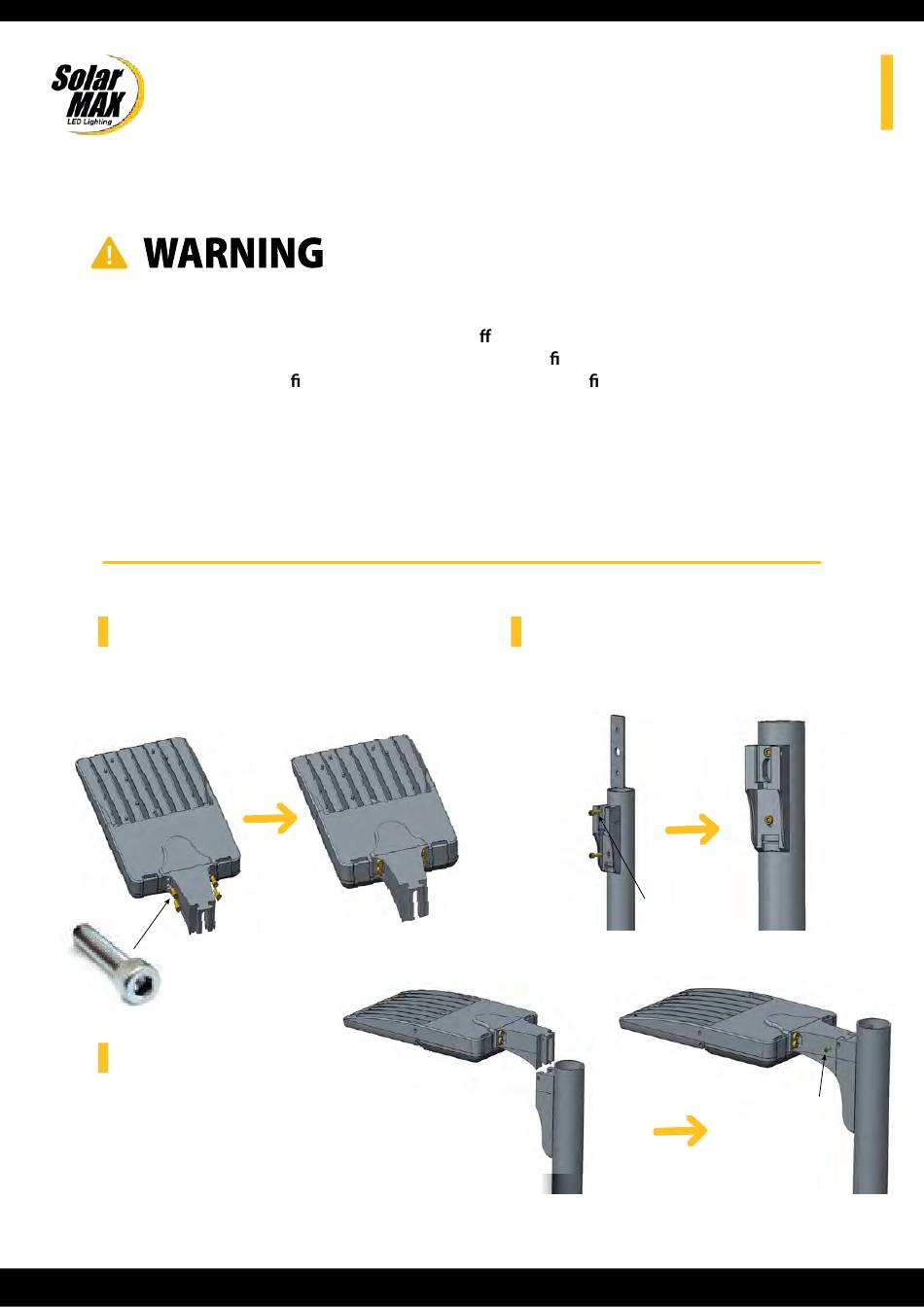

STEP 1

Secure the luminaire bracket to OT Area
Light by tightening 4 M8 socket head bolts.
(4) M8 socket
head bolts

STEP 3

Slide the luminaire bracket into pole
bracket. Tighten 2 M4 socket head bolts
to secure the bracket system.
SolarMax LED | 3080 12th St., Riverside, CA 92507 | (951) 300-0788 | led@solarmaxtech.com
OT Series LED Area Light
Type D Slide & Lock Mount for Square/Round Pole

STEP 2

Secure the luminaire bracket to OT Area
Light by tightening 4 M8 socket head bolts.
Installation Instruction Manual
(2) M8 socket
head bolts
(2) M4 socket
head bolts
