Summary of Contents for Audeze LCDi4
- Page 1 USER GUIDE AND WARRANTY...

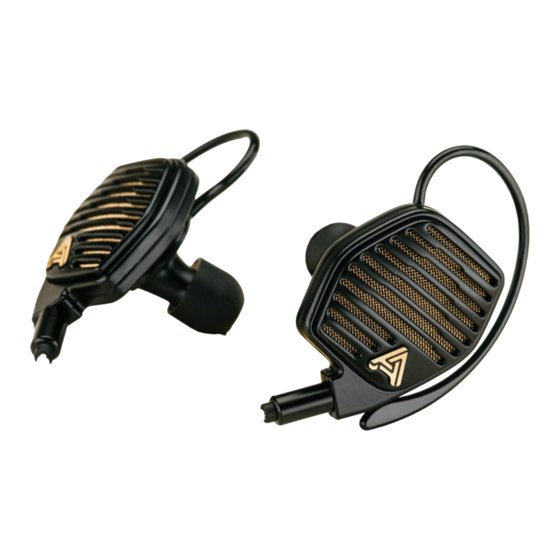

- Page 3 L C D i 4 I N - E A R H E A D P H O N E S Thank you for purchasing the Audeze LCDi4. Handcrafted in our Southern California facility, the LCDi4 is an superior sound quality and performance.
-
Page 4: Safety Guide
Always maintain a distance of at least 8-inches (20cm) between the medical devices as the LCDi4 uses permanent magnets. Keep the product, accessories and packaging out of reach of children. This product is not intended for children under the age of 12. - Page 5 Style ..............In-ear, universal fit Transducer type ..........Planar magnetic, semi-open Magnetic structure .........Fluxor™ magnetic array Magnet type............Neodymium N50 Diaphragm type..........Nano-scale Uniforce™ Transducer size..........30mm Maximum power handling ......3W Maximum SPL...........>120dB Frequency response ........5Hz – 50kHz THD...............<0.2%, full spectrum @ 100dB Cable ..............1.2m OCC silver-plated premium braided cable Cable connectors ..........3.5mm stereo plug input, 2-pin plug outputs Weight..............12g (per side)
- Page 6 Sound Technology The LCDi4 is the world’s most powerful and luxurious in-ear planar magnetic headphone. Incorporating the same patented Fluxor Magnets, Fazor, and Uniforce technologies as our top of the line LCD4 headphones, your new LCDi4 is capable of realistic sound reproduction unmatched by any other in-ear headphone on the market.
- Page 7 Setting up your LCDi4 Headphones Eartips: Your new LCDi4s come with the small size silicone rubber eartips pre-installed. We also provide larger sizes of eartips to suit your personal preference and comfort. To change the eartips: Pull the eartip straight off.
-
Page 8: Connecting Your Headphones
Connecting your Headphones Match the inside L and R indicators or source component Ensure the plug is fully inserted Source: Connect the input end of the cable to your source device. Output: Look for the (L)eft and (R)ight indicators on the two 2-pin cable ends and match them to the headphones accordingly. - Page 9 Types of Ear Attachments As everyone’s ears are different, the LCDi4 Headphones come with two but users should select the option that is most comfortable and secure for their use. EarHooks: ear, anchoring the headphones in place similar to how eyeglass hooks work.
-
Page 10: Earhook Installation
EarHook Installation 1. Attach the EarHook by snapping the semi-circular latch onto the back-side of the headphone, making sure the EarHooks point up at an angle to align with the front corner of the headphone. Note the direction of the EarHook compared to that of the eartip as seen in the diagram. -
Page 11: Cleaning Your Headphones
Cleaning your Headphones Pull the eartip up from the bottom and carefully Use the supplied cleaning tool to remove built-up remove the eartip from the eartube dirt from the headphone’s eartube IMPORTANT: Use warm water and lint-free cloth to clean and dry the silicone eartips. -
Page 12: Need More Help
• Keep the case closed and store in a dry environment. • Avoid exposure to liquids, extreme heat or cold temperatures. • Never pull on the cable to disconnect the LCDi4 headphones from your music player. Hold the plug at the end of the cable and pull to disconnect. -
Page 13: Warranty
Warranty The Audeze LLC products comprising the LCDi4 headphones (an “Audeze LLC Product”) is under warranty as indicated by the original date of purchase (the “Warranty Period”). Components (applicable to each Audeze LLC Product) Planar Drivers ......3 years Parts and Labor . - Page 14 If the Audeze LLC Product is covered by this warranty and is will reimburse you for shipping charges. If the Audeze LLC Product you send to us is not covered by this warranty, you will be charged the shipping costs. If you are outside the USA and...
- Page 15 Additional product information and limitations Warranty replacements: Audeze LLC strives to improve the performance of our discretion, choose to replace the Audeze LLC Product completely with a new or remanufactured product. In the event of product obsolescence, a suitable replacement will be chosen based upon the features, the intended use (as determined by Audeze) and the retail price of the original Audeze LLC Product.
- Page 16 Determining authority: How to claim warranty service A) If you reside in the United States and purchased direct from Audeze LLC email support@audeze.com. B) If you reside in the United States and purchased from an authorized Audeze LLC dealer contact your dealer or support@audeze.com.
- Page 17 RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS; LOSS OF GOODWILL; LOSS OF, DAMAGE TO, COMPROMISE OR CORRUPTION OF DATA;...
- Page 18 LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST HIDDEN OR LATENT WARRANTIES CANNOT BE DISCLAIMED, AUDEZE LLC LIMITS THE DURATION AND REMEDIES OF SUCH WARRANTIES TO THE DURATION REPAIR OR REPLACEMENT SERVICES DESCRIBED HEREIN. SOME STATES...
- Page 19 Recycling This product must either be sent for repairs and reused or sent for treatment and recycling through an approved disposal system. For recycling and waste disposal agents for Audeze LLC products, contact us at support@audeze.com.
- Page 20 Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr ) (PBB) (PBDE) : Indicates that this toxic or hazardous substance is below : Indicates that this toxic or hazardous substance is above © 2017 Audeze LLC. All rights reserved.
- Page 21 WWW.AUDEZE.COM © 2017 Audeze LLC. All rights reserved. ACC1078...
